PLC Control Steel Slitting Machine 25 Strips 120m/min Max Speed

Name: PLC Control Steel Slitting Machine 25 Strips 120m/min Max Speed
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ZJ-(0.3-6)×1600mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ZJ-(0.3-6)×1600mm

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ZJ-(0.3-6)×1600mm

Mill Speed:

Max 120m/min

Warranty:

1 Year

Name:

PLC Control First Garde 25 Strips Green Colour CE ISO Steel Slitting Machine

Width Tolerance:

+/-0.05mm

Control:

PLC

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Max. Slitting Strips:

25 Strips

Colour:

Blue

Highlight:

High Light

Highlight:

sheet metal slitter machine

strip slitting machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

90 work days

Payment Terms:

L/C,T/T

Supply Ability:

20 Sets/Year

Product Description

PLC Control First Grade 25 Strips Steel Slitting Machine

Product Specifications

Attribute	Value
Mill speed	Max 120m/min
Warranty	1 Year
Width tolerance	+/-0.05mm
Control	PLC
After-sales Service	Engineers available to service machinery overseas
Max. Slitting Strips	25 strips
Colour	Blue

High Precision PLC-Controlled Steel Slitting Machine

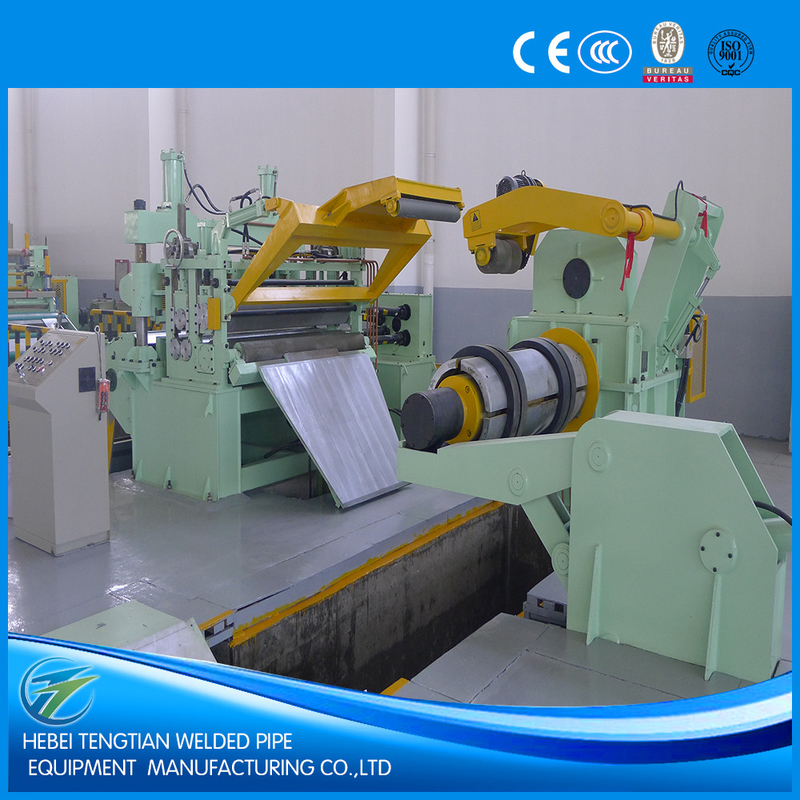

Our thin sheet slitting line is designed for precision cutting of master coils into narrower strips with exceptional accuracy. The system features a comprehensive setup including coil-loading car, uncoiling mechanism, feeding system, leveling rollers, disc shearing, tensioning, and recoiling components.

Key Features & Advantages

Custom-designed production lines tailored to specific customer requirements
Flexible configuration with single or double mandrel uncoiler options (up to 25T capacity)
Precision-engineered for narrow thin strips with tight tolerances
Surface protection measures for delicate materials (stainless steel, galvanized steel)
Optimized hydraulic system design for superior performance
High-quality components from reputable suppliers
Rigorous quality control throughout manufacturing process
Competitive pricing through efficient production management
Choice of AC or DC motor drive (standard DC motor with Eurotherm 590 driver)
Comprehensive safety features including emergency stop systems

Operational Process

Coil-loading → Double-mandrel uncoiler → Coil-head-feeding → Double-roller pinch feeding → Five-roller leveling → End-cutting → Hole Accumulator → Strip-aligning → Disc shearing → Scrap reeling → Hole Accumulator → Tensioner → Recoiling → Coils-discharging

Technical Parameters

Material: Carbon steel, stainless steel, galvanized plate, colored steel plate
Strip thickness: 0.3-3 mm
Max. strip width: 1300mm
Coil dimensions: Inner ≥Φ508mm, Outer Φ1800mm
Max. coil weight: 15000Kg
Slitter motor: 75KW DC motor
Slitter shaft: Ф205 x 1400mm
Disc knives: ID205mm x OD310mm x 10mm (6CrW2Si/H13/SKD-11)
Separating disc: ID75 x OD180mm x 6mm (65Mn)
Tensioning system: Frictional wool felt wrapping around wooden plates
Recoiler block: Ф508 x 1400mm
Recoiler motor: 110KW DC motor
Control system: Eurotherm 590 DC driver cabinet with control panels
Slitting speed: Max 100m/min (adjustable)

Model Specifications

Model	Thickness	Width	Coil Weight	Finished Slit Width	Max Slitting Speed
JY-1 x 600	0.2-1mm	100-600mm	Max 8T	Min. 20mm	120m/min
JY-2 x 1300	0.3-2mm	300-1300mm	Max 15T	Min. 25mm	150m/min
JY-3 x 1600	0.3-3mm	500-1600mm	Max 20T	Min 25mm	120m/min
JY-4 x 1600	0.4-4mm	500-1600mm	Max 30T	Min 30mm	120m/min

Note: Specifications are provided as general reference. We design and manufacture each line according to specific customer requirements to ensure optimal performance.
