CE ISO Certified Pipe Mill Machine 100m/min 114mm Diameter

Name: CE ISO Certified Pipe Mill Machine 100m/min 114mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LJ50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	LJ50

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

LJ50

Product Name:

CE ISO Certificate Pipe Mill Machine High Output 100 M/MIN

Material:

HRC,CRC

Speed:

100m/min

Thickness:

1.5-5mm

Diameter:

114mm

Cutting Accuracy:

≤±3 Mm

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Keyword:

CE ISO Certificate Pipe Mill Machine

Highlight:

High Light

Highlight:

tube milling machine

steel pipe making machine

steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

CE ISO Certificate Pipe Mill Machine High Output 100 M/MIN

Product Specifications

Product Name	CE ISO certificate Pipe Mill Machine High Output 100 M/MIN
Material	HRC, CRC
Speed	100m/min
Thickness	1.5-5mm
Diameter	114mm
Cutting Accuracy	≤±3 mm
After-sales Service	Engineers available to service machinery overseas

Product Overview

Through the world-famous brand, HeBei TengTian has long been recognized as one of the earlier pioneers in the welded seam tube mill business in China. The TengTian brand offers multiple standard tube mills for common product sizes. In addition to standard machines, we also provide specialized equipment covering a wide diameter range of metal tubes and pipes.

Key Features

High precision pipe making with advanced W, FFX, FF forming method
German roll forming design for superior performance
Stable operation with high yield output
Fully automated production process
Simple operation with continuous production capability
High efficiency with minimal material waste
Low production cost solution

Production Process

1. Coils: Carbon steel coils prepared for pipe production

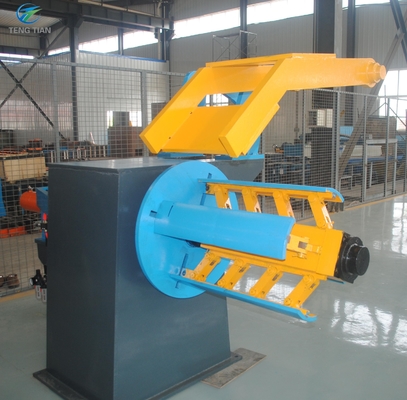

2. Uncoiler: Steel coil placed on the uncoiler

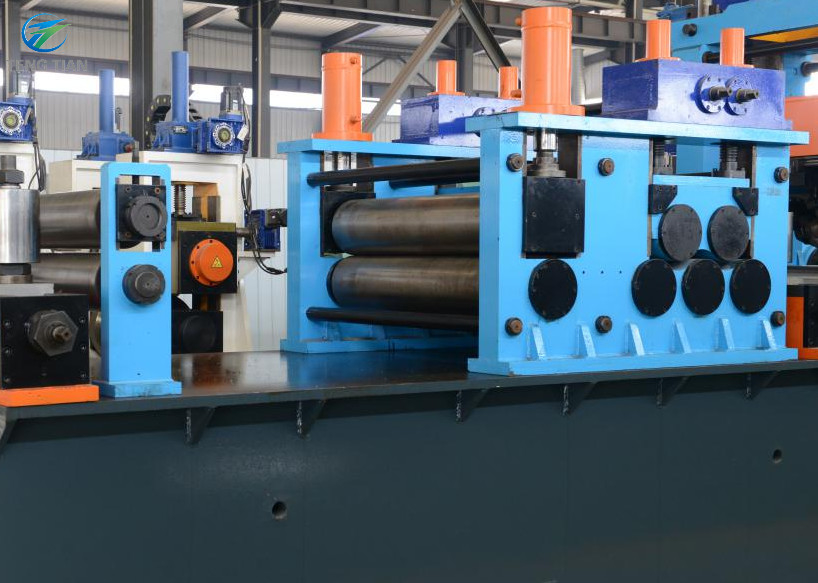

3. Leveler: Coil stock is leveled for processing

4. Butt Welding: Connects coils for uninterrupted forming

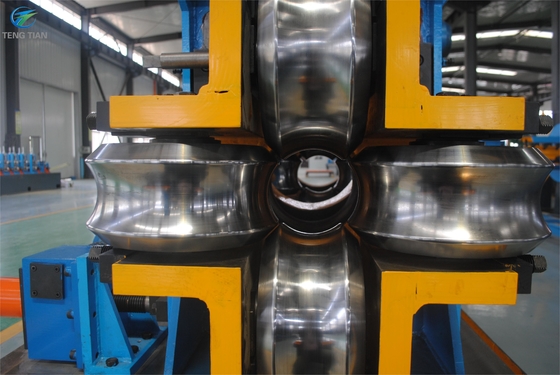

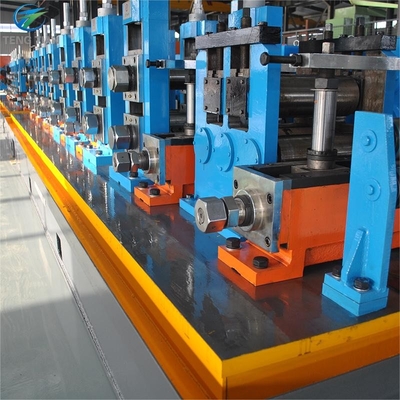

5. Mill: Rolls form flat steel into pipe shape

6. Welder: Electric Resistance Welder finishes the pipe

7. Scarfer: Seam is smoothed for uniform finish

8. Saw: Pipe is cut to specified length

9. Collecting: Finished pipes collected for packing

Pipe Mill Machine Models

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16

Reference Image
