Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Precision Steel Tube Manufacturing Machine 380V Running Speed 150m / Min | Thickness Range: | 0.2-0.35mm |
|---|---|---|---|
| Running Speed: | Max.150m/min | Welding Type: | H.F. Welding |
| Raw Material: | Aluminum Strip | Keyword: | Steel Tube Manufacturing Machine |
| Highlight: | High Precision metal pipe making machine,High Precision steel pipe making machine,380V steel tube forming machine |
||

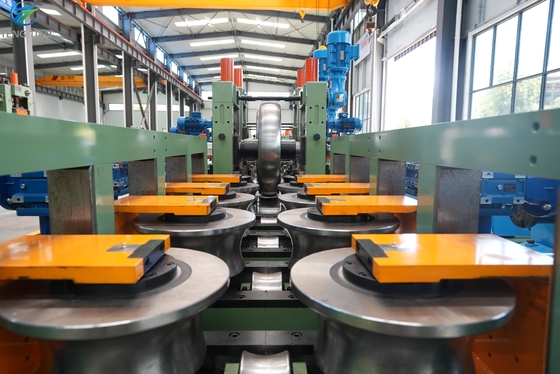

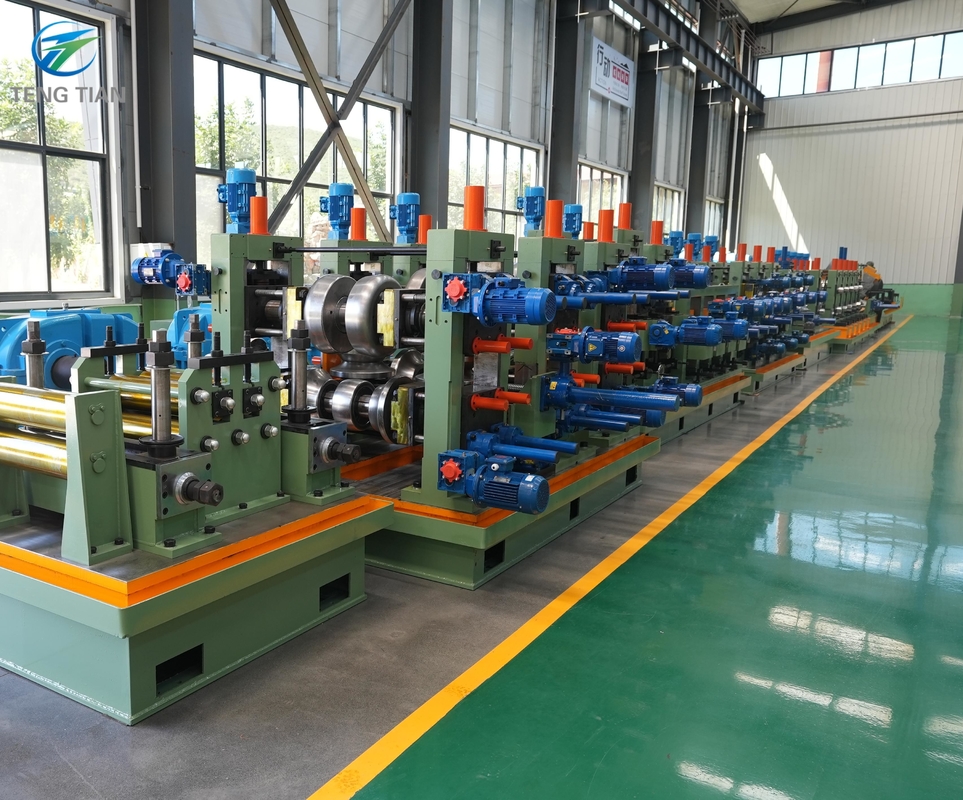

High Precision Steel Tube Manufacturing Machine 380V Running Speed 150m / Min
Features:
1: The equipment stability is extremely excellent.
2: The equipment uses high-frequency anhydrous welding process.
3: According to customer requirements produce various types of insulting glass aluminium spacer bar.
4: Good quality, low price.
5: Responsible for the installation and debugging assembly line.
6: After-sale guaranteed, if there are any problems, you can timely contact .
Our company perennial supply of high quality hollow glass aluminum crosser production equipment, our equipment adopts the advanced German technology and equipment to produce aluminum strip can be used for insulating glass aluminum crosser.
Technical Process:
Uncoil→Feeding→ Rolling forming→High frequency welding→Scraper→Sizing→ Straightening→Flying saw cutting the material→Feeding station.
| No. | Model | Pipe Size | Thickness | Speed(m/min) | Capacity(KW) | HF(KW) | Area(LxW in Metres) |
| 1 | HG20 | ø8 - ø20 mm | 0.3 - 1.5 mm | 30 - 150 | 210 | 100 | 40*12 |
| 2 | HG32 | ø10 - ø32 mm | 0.4 - 2.0 mm | 30 - 150 | 300 | 150 | 40*12 |
| 3 | HG50 | ø16 - ø50 mm | 0.7 -2.5 mm | 30 - 150 | 410 | 200 | 60*12 |
| 4 | HG60 | ø22 - ø60 mm | 0.9 - 3.0 mm | 30 - 150 | 410 | 200 | 60*12 |
| 5 | HG76 | Ø25 - ø76 mm | 1 - 4 mm | 30 - 120 | 580 | 300 | 80*16 |
| 6 | HG89 | Ø32 - ø89 mm | 1 - 4.5 mm | 30 - 100 | 660 | 300 | 100*16 |
| 7 | HG114 | Ø45 - ø114 mm | 1.5 -5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 8 | HG140 | Ø50 - ø140 mm | 1.5 - 5.5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 9 | HG165 | Ø60 - ø165 mm | 2 - 6 mm | 30 - 60 | 1100 | 500 | 100*16 |
| 10 | HG219 | Ø114 - ø219mm | 3 - 8 mm | 20 - 45 | 1400 | 600 | 150*16 |
| 11 | HG273 | Ø114 - ø273mm | 4 - 12 mm | 15 - 30 | 2100 | 800 | 160*18 |
| 12 | HG325 | Ø165 - ø325 mm | 4 - 14 mm | 10 - 30 | 2500 | 1000 | 200*24 |
| 13 | HG426 | Ø165 - ø426 mm | 4 - 16 mm | 8 - 25 | 2900 | 1200 | 250*24 |
| 14 | HG508 | Ø219 - ø508 mm | 5 - 18 mm | 5 - 18 | 3400 | 1600 | 300*24 |
| 15 | HG610 | Ø355 - ø610 mm | 5 - 18 mm | 5 - 18 | 3700 | 1600 | 300*24 |
| 16 | HG760 | Ø426 - ø760 mm | 5 - 20 mm | 5 - 20 | 4300 | 1800 | 300*24 |
