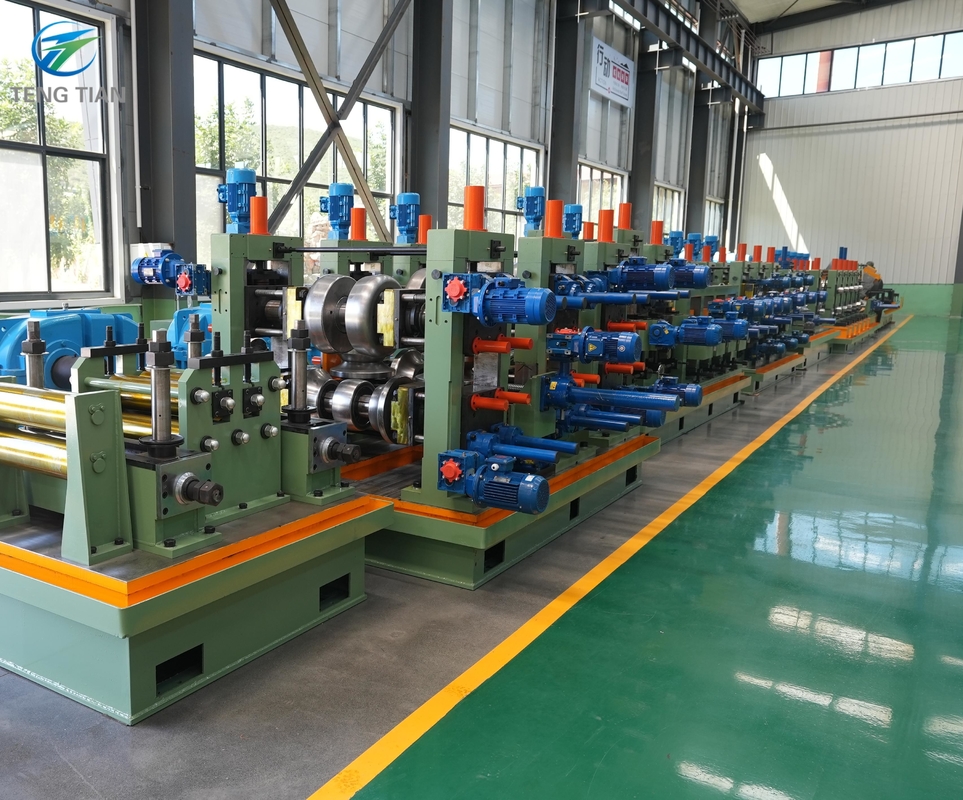

High Precision Steel Tube Manufacturing Machine 380V 150m/min

Name: High Precision Steel Tube Manufacturing Machine 380V 150m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: TT-6mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO 9001
Model Number:	TT-6mm

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO 9001

Model Number:

TT-6mm

Product Name:

High Precision Steel Tube Manufacturing Machine 380V Running Speed 150m / Min

Thickness Range:

0.2-0.35mm

Running Speed:

Max.150m/min

Welding Type:

H.F. Welding

Raw Material:

Aluminum Strip

Keyword:

Steel Tube Manufacturing Machine

Highlight:

High Light

Highlight:

High Precision metal pipe making machine

High Precision steel pipe making machine

380V steel tube forming machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Naked

Delivery Time:

1 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets / Year

Product Description

High Precision Steel Tube Manufacturing Machine 380V Running Speed 150m/Min

Product Specifications

Attribute	Value
Product Name	High Precision Steel Tube Manufacturing Machine 380V Running Speed 150m/Min
Thickness Range	0.2-0.35mm
Running Speed	Max.150m/min
Welding Type	H.F. Welding
Raw Material	Aluminum strip

Key Features

Exceptional equipment stability and reliability
High-frequency anhydrous welding process
Customizable production for various insulating glass aluminum spacer bars
High quality construction with competitive pricing
Complete installation and debugging services included
Comprehensive after-sales support and technical assistance

Our company specializes in supplying high-quality hollow glass aluminum spacer production equipment. Our machines incorporate advanced German technology to produce premium aluminum strips for insulating glass applications.

Technical Process

Uncoil → Feeding → Rolling forming → High frequency welding → Scraper → Sizing → Straightening → Flying saw cutting → Feeding station

Model Specifications

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW in Metres)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24
