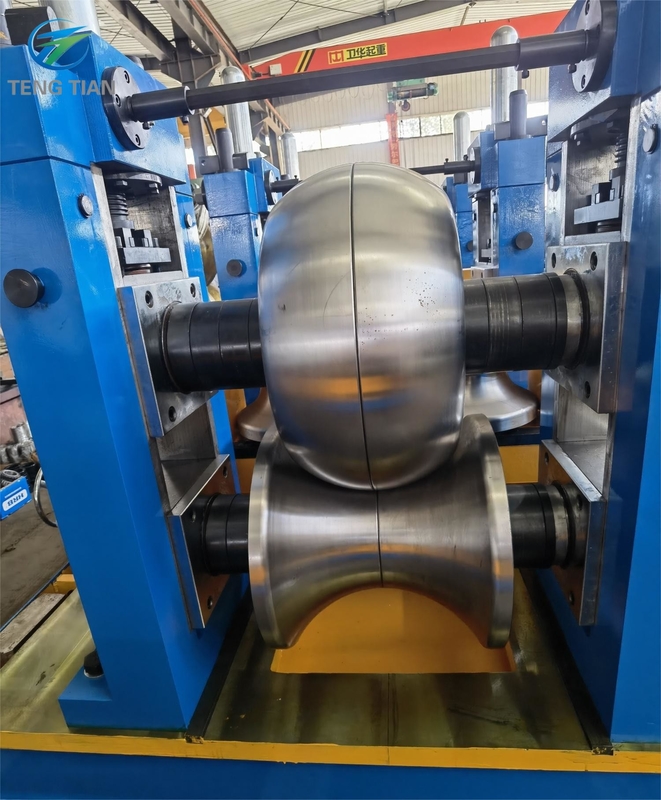

Middle Carbon Steel Pipe Manufacturing Machine 150x150mm

Name: Middle Carbon Steel Pipe Manufacturing Machine 150x150mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 1200*16MM
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001
Model Number:	1200*16MM

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001

Model Number:

1200*16MM

Features:

Masterly Work Principle, Safe,reliable,easy To Control

Product Name:

Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment

Thickness Of Steel Strip:

0.4*12mm

Function:

Store And Supply Successive Strip For Forming Machine

Usage:

Storage Of Strip

Keyword:

Middle Carbon Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

Middle Carbon metal pipe making machine

Middle Carbon steel pipe making machine

Automatic Adjustment steel tube forming machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

25 Working days

Payment Terms:

T/T,L/C

Supply Ability:

20 Sets / Year

Product Description

Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment

Product Specifications

Attribute	Value
Product Name	Middle Carbon Steel Pipe Manufacturing Machine Automatic Adjustment
Thickness of Steel Strip	0.4*12mm
Function	Store and supply successive strip for forming machine
Features	Masterly work principle, safe, reliable, easy to control
Usage	Storage of strip

Technical Specifications

Pipe Specifications

Pipe Size: 150x150
Thickness: 3-8mm Square & rectangle tube
Length: 6-12m
Length Tolerance: ±3mm

Raw Material

Carbon Steel coil GB/T 700: Q235B(ASTM: GR*D(σs 230) / JIS: SS400)
Width: 36mm-120mm
Thickness: 3-8mm
Coil ID: 450-520mm
Coil OD: Max 1200mm
Coil Weight: 8Tons

Tube Mill Specifications

Production Speed: 20-50 m/min
Production capacity: 10,000ton/year
Direction: left or right decided by customers
Mill installed capacity: 550 kw
Line Area: 80m(length) ×8.8m (width) x3.5m(height)
Tube Bottom Passline (Above floor level): 800 mm
Weight: about 8t

Sequence	Item	Numerical Value
1	Round pipe diameter	Φ50.8mm～Φ127mm
2	Round pipe thickness	Δ1.0mm～3.5mm
3	Square pipe size	40×40-100×100mm
4	Square pipe thickness	Δ1.0-3.0mm
5	Rectangular pipe size	30×50-80×120mm
6	Rectangular pipe thickness	Δ1.0-3.0mm
7	Rolling speed	10M/min～70M/min (different diameter and thickness choose different speed)
8	Length of pipe	4M～8M (depends on the customer's demands)

Reference Images
