Steel Pipe Making Machine
>

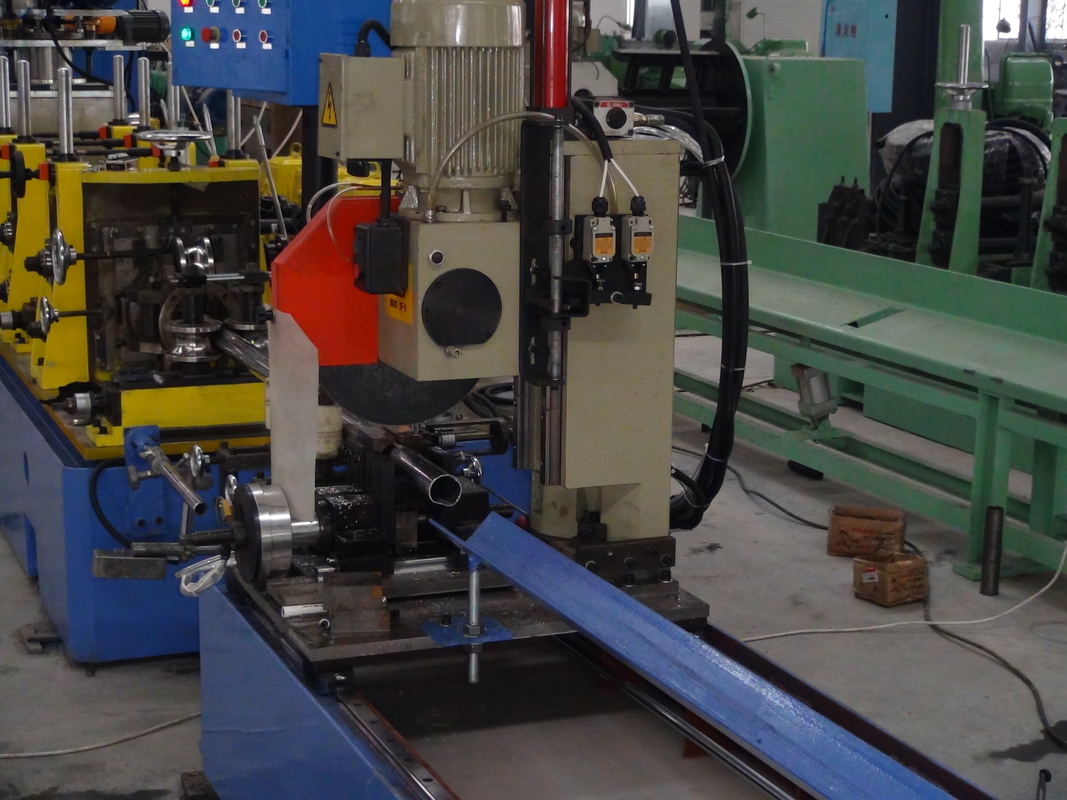

Automatic PLC Control Steel Pipe Mill 40-114mm OD 80m/min

Automatic PLC Control Steel Pipe Mill 40-114mm OD 80m/min

Product Details:
Place of Origin: CHINA
Brand Name: TENG TIAN
Certification: CE / ISO 9001
Model Number: TT60
Detail Information
Place of Origin:
CHINA
Brand Name:
TENG TIAN
Certification:
CE / ISO 9001
Model Number:
TT60
Material:
Carbon Steel Galvanized
Welding Type:
ERW Welding
Welding Speed:
Max.80m/min
Control System:
PLC Control
Motor:
Siemens
Colour:
Blue
OD Diameter:
40-114mm
Thickness:
1.0-2.5mm
Highlight:

High Light

Highlight:

Automatic tube milling machine

,

Decorative tube milling machine

,

Automatic pipe milling machine

Trading Information
Minimum Order Quantity:
1 SET
Price:
$100000 to $1 million
Packaging Details:
Special export packing, and fixed in container
Delivery Time:
60 DAYS
Payment Terms:
T/T,L/C
Supply Ability:
100 SETS / YEAR
Product Description
Automatic Tube Mill Equipment, Decorative Pipe Tube Mill 22kw Motor Power
Product Specifications
Attribute Value
Material Carbon Steel Galvanized
Welding Type ERW Welding
Welding Speed Max. 80m/min
Control system PLC control
Motor Siemens
Colour Blue
OD Diameter 40-114mm
Thickness 1.0-2.5mm
Product Overview

The Automatic PLC Control High Precision Steel Pipe Making Machine is designed for producing decorative pipes, stainless steel pipes, and carbon steel pipes used in various applications including furniture, appliances, and architectural elements.

Key Features
  • CNC precision machining ensures high product accuracy
  • Durable construction with minimal maintenance requirements
  • Premium components including Siemens motor and Pearl River reducer
  • Fully automated operation with simple controls for continuous production
  • 15% faster tube speed than industry standards for higher yield
  • Material efficiency with up to 98% yield and minimal waste
  • Professional technical support available for all production needs
Production Capabilities

This versatile machine can produce various tube profiles including round, square, rectangular, oval, semi-circular, and shaped tubes. Ideal for manufacturing stainless steel handrails, doors, windows, and furniture components.

Technical Parameters
No. Model Pipe Size Thickness Speed (m/min) Capacity (KW) HF (KW) Area (LxW in Metres)
1 HG20 ø8 - ø20 mm 0.3 - 1.5 mm 30 - 150 210 100 40*12
2 HG32 ø10 - ø32 mm 0.4 - 2.0 mm 30 - 150 300 150 40*12
3 HG50 ø16 - ø50 mm 0.7 -2.5 mm 30 - 150 410 200 60*12
4 HG60 ø22 - ø60 mm 0.9 - 3.0 mm 30 - 150 410 200 60*12
5 HG76 Ø25 - ø76 mm 1 - 4 mm 30 - 120 580 300 80*16
6 HG89 Ø32 - ø89 mm 1 - 4.5 mm 30 - 100 660 300 100*16
7 HG114 Ø45 - ø114 mm 1.5 -5 mm 30 - 80 920 400 100*16
8 HG140 Ø50 - ø140 mm 1.5 - 5.5 mm 30 - 80 920 400 100*16
9 HG165 Ø60 - ø165 mm 2 - 6 mm 30 - 60 1100 500 100*16
10 HG219 Ø114 - ø219mm 3 - 8 mm 20 - 45 1400 600 150*16
11 HG273 Ø114 - ø273mm 4 - 12 mm 15 - 30 2100 800 160*18
12 HG325 Ø165 - ø325 mm 4 - 14 mm 10 - 30 2500 1000 200*24
13 HG426 Ø165 - ø426 mm 4 - 16 mm 8 - 25 2900 1200 250*24
14 HG508 Ø219 - ø508 mm 5 - 18 mm 5 - 18 3400 1600 300*24
15 HG610 Ø355 - ø610 mm 5 - 18 mm 5 - 18 3700 1600 300*24
16 HG760 Ø426 - ø760 mm 5 - 20 mm 5 - 20 4300 1800 300*24
