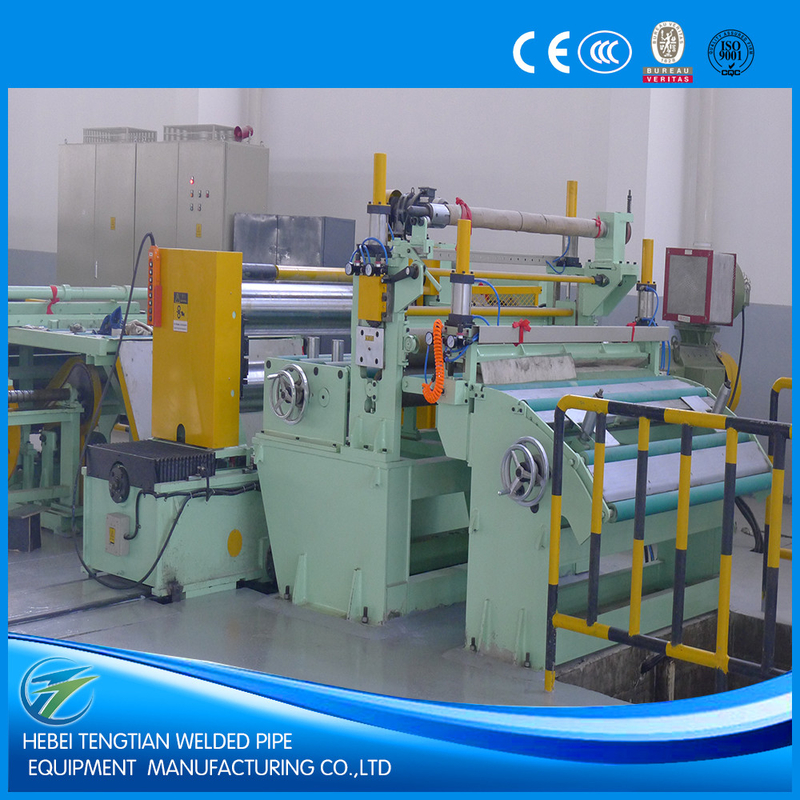

220V Steel Coil Slitting Machine with PLC Control Max 120m/min

This thin sheet slitting line, also called metal coil slitter, is a production line designed to break down master coils into smaller coils of specific widths. The machine's capacity is proportional to the thickness of coil strips, with thicker master coils requiring larger models.

• Custom-designed production lines tailored to customer requirements
• Compact, smooth, and solid construction for easy operation
• Precision control for centerline, slitting accessories, and recoiling
• Delicate surface protection measures for stainless steel and galvanized steel
• Advanced hydraulic system design
• High-quality components from reputable suppliers
• Strict quality control throughout production process
• Competitive pricing through efficient cost management
• Choice of AC or DC motor drive (typically DC with Eurotherm 590 driver)
• Comprehensive safety features including emergency stop

Coil-loading → Double-mandrel uncoiler → Coil-head-feeding → Double-roller pinch feeding → Five-roller leveling → End-cutting → Hole Accumulator → Strip-aligning → Disc shearing → Scrap reeling → Hole Accumulator → Pre-separator/Tensioner → Recoiling → Coils-discharging → Hydraulic control → Electric control

• Material: Carbon steel, stainless steel, galvanized plate, colored steel plate
• Strip thickness: 0.3-3mm
• Max. strip width: 1300mm
• Coil dimensions: Inner ≥Φ508mm, Outer Φ1800mm
• Max. coil weight: 15000Kg
• Slitter motor: 75KW DC motor
• Slitter shaft: Ф205 x 1400mm
• Disc knives: ID205mm x OD310mm x 10mm, 6CrW2Si(H13, SKD-11)
• Separating disc: ID75 x OD180mm x 6mm, 65Mn
• Tensioning: Frictional wool felt wrapping around wooden plates
• Recoiler block: Ф508 x 1400mm
• Recoiler motor: 110KW DC motor
• Electric control: Eurotherm 590 DC driver cabinet plus control panels
• Slitting speed: Max 100m/min, adjustable
