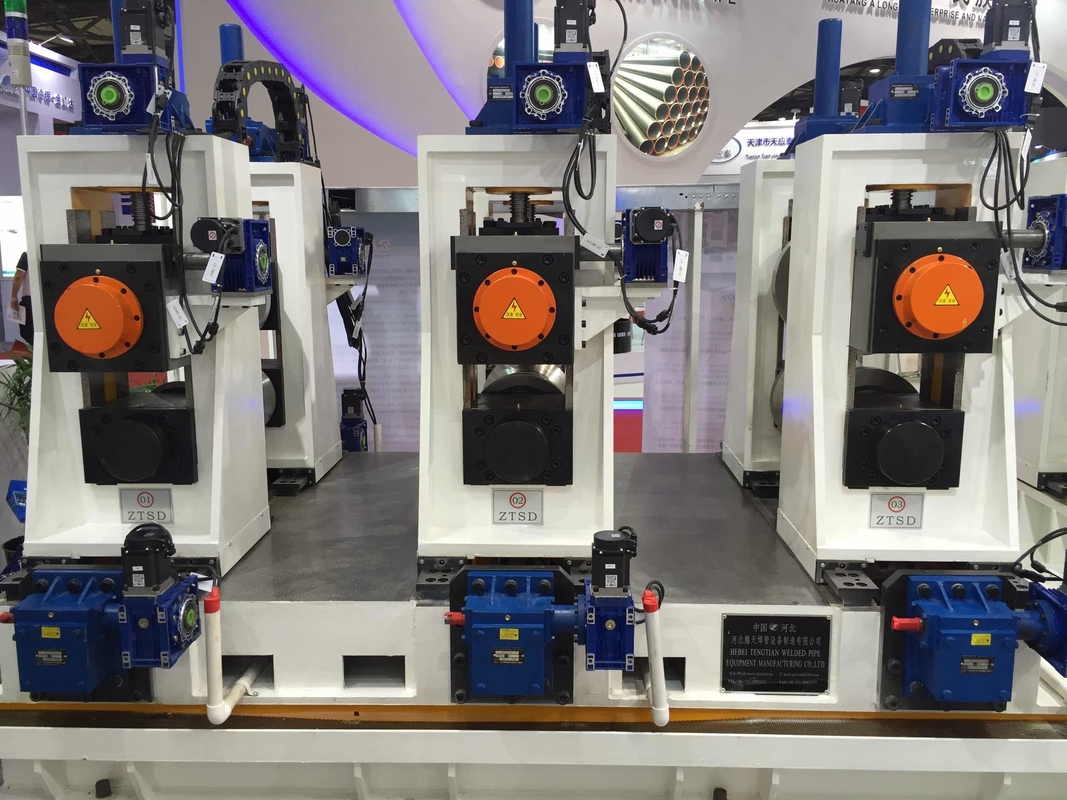

PLC Control Full Automatic SS Square Tube Mill 30-80m/min
PLC Control Full Automatic SS Square Tube Mill 30-80m/min
  • PLC Control Full Automatic SS Square Tube Mill 30-80m/min

PLC Control Full Automatic SS Square Tube Mill 30-80m/min

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: ZD100X100
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
ZD100X100
Mill Name:
PLC Control Carbon Pipe FFX Forming Full Automatic SS Square Tube Mill
Voltage:
220/380/415/420/440V
Mill Speed:
30-80m/min
Warranty:
1 Year
Tube Size:
30x30-100x100mm
Thickness:
1.0-4.0mm
Welding Type:
High Frequency Welding
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Highlight:

High Light

Highlight:

tube mill line

,

stainless steel pipe mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
150 work days
Payment Terms:
L/C,T/T
Supply Ability:
10 Sets/Year
Product Description
PLC Control Carbon Pipe FFX Forming Full Automatic SS Square Tube Mill
Product Specifications
Attribute Value
Mill Name PLC Control Carbon Pipe FFX Forming Full Automatic SS Square Tube Mill
Voltage 220/380/415/420/440V
Mill speed 30-80m/min
Warranty 1 Year
Tube size 30x30-100x100mm
Thickness 1.0-4.0mm
Welding Type High Frequency Welding
After-sales Service Engineers available to service machinery overseas
Equipment Description

The PLC Control Carbon Steel Pipe Mill is China's first fully-automatic pipe making machine designed to meet international market requirements. Combining our LW series unit with FF forming technology, this automatic square and rectangular tube equipment can produce various cold bend steel profiles including U and C section steel, with infinitely adjustable product width and height.

The machine precisely cuts steel tubes with smooth, burr-free edges and high cutting precision.

Key Features
  • Rapid roller adjustment capability
  • Quick specification change capability for different tube sizes
  • Reduced labor requirements and operational costs
  • Extended equipment service life
  • Modular design for individual component repair
Machine Components
  • Forming parts: 7 horizontal roll stands, 4 empty curving stands, 4 vertical roll racks, and 1 feeding rack
  • Welding parts: 5 extruding rollers, 2 scraping scar racks, and 1 polish rack
  • Shaping parts: 4 four-roller racks
  • Control system: Multi-point PLC control
Production Process
  • Scroll up
  • Uncoil
  • Flattening
  • End Shear & Butt Welding
  • Accumulator
  • Forming
  • High-frequency induction welding
  • Removing external burr
  • Cooling
  • Sizing
  • Cutting
  • Checking & Collecting
  • Accessing Warehouse
Technical Specifications
Raw materials: Low carbon steel and low alloy constructional steel, σb≤580Mpa σs≤380Mpa
Steel strip width: 320-800mm
Steel strip thickness: 3.0-12.7 mm
Steel strip inner diameter: φ480-580mm
Steel strip outer diameter: φ800-1800mm
Steel coil weight (Max): 12t
Material grades: Q195-Q345, SPHC
Quality standards: Mainly GB standards, with some JIS and DIN components
Product specifications: Square pipe 80×80--200×200mm, Rectangular 80×120-120×280mm
Wall Thickness: 3.0-12.7mm
Length: 4-12m
Forming speed: 10-40m/min
Main motor: Frequency conversion motor 22KW×2 Each stand times
PLC Control Full Automatic SS Square Tube Mill 30-80m/min 0
