High Frequency Tube Mill Machine 50-140mm Diameter 5mm Thickness

Name: High Frequency Tube Mill Machine 50-140mm Diameter 5mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW140
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ERW140

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ERW140

Material:

Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel

Adjusting:

Worm Gearing

Running Speed:

Max.60m/min

Pipe Shape:

Round, Square & Rectangular

Pipe Diameter:

50 - 140mm

Max.Thickness For Round Pipe:

2.0 - 5.0mm

Welding Type:

High Frequency Welding

Cutting Saw:

Friction Saw Cutting

Square Pipe:

60*60 - 110*110mm

Name:

Tube Mill Machine

Highlight:

High Light

Highlight:

welded tube mill

tube making machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3 months

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Galvanized Steel Tube Mill Machine 5mm Thickness Pipe With Innovative Design

Product Specifications

Attribute	Value
Material	Hot Rolled Coil, Cold Rolled Coil, Galvanised Steel
Adjusting	Worm gearing
Running speed	Max. 60m/min
Pipe shape	Round, Square & Rectangular
Pipe Diameter	50 - 140mm
Max. Thickness for Round Pipe	2.0 - 5.0mm
Welding Type	High Frequency Welding
Cutting Saw	Friction Saw Cutting
Square Pipe	6060 - 110110mm

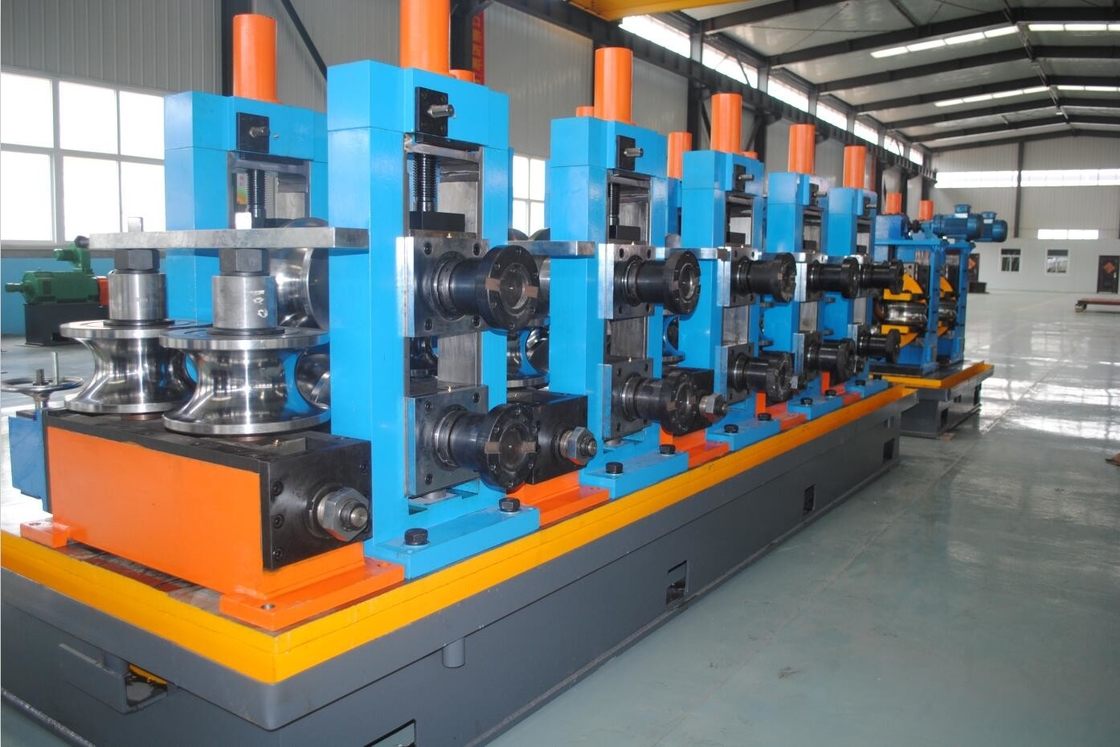

High Frequency Tube Mill Machine

This high frequency tube mill machine with max. 140mm diameter and 5mm thickness is designed for manufacturing welded steel pipes of Φ76mm-Φ168mm with 2.0mm-6.0mm wall thickness. It can also produce profiled pipes within the processing limits of round pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions.

Product Advantages

High precision: Level roller jumps 0.01, frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1, steel pipe diameter and roundness error ≤0.08
Utilizes Japanese technology to meet high accuracy requirements of international clients
Worm gear and worm adjustment with high precision and energy efficiency
3D adjustable scraping scar with ±20° rotation capability
Turkish head push square system reduces mold weight while ensuring stable forming and uniform R Angle
Nylon damping blocks on level up shafts reduce impact on shafts and bearings

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Technical Specifications

1. Raw Material

Material application	Hot or cold rolled steel strips, galvanized steel strips
Material grade	Low-carbon steel, low alloy steel: δs≤345Mpa
ID of the steel strips	Φ450-Φ508mm
OD of the steel strips	Φ800-Φ2000mm
Coiler weight	Max. 1000kg

2. Production Range

Round Pipe	50 - 140mm (Thickness: 2.0-4.0mm)
Square Pipe	4040 - 110110mm (Thickness: 2.0-3.0mm)
Rectangular Pipe	5030 - 100150mm (Thickness: 2.0-3.0mm)

H.F. Welder: GGP300Kw Solid State High Frequency Welder
Line Speed: Max. 70m/min
Tube Length: 4-12m
Cutting Accuracy: ±1mm
Electric installed capacity: approx. 800KW
Size of whole line: about 90X8m

As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China, our high quality, reliable performance and long service life have made our machines popular in over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, and Vietnam.

For more information or inquiries, please don't hesitate to contact us. We're happy to assist you.
