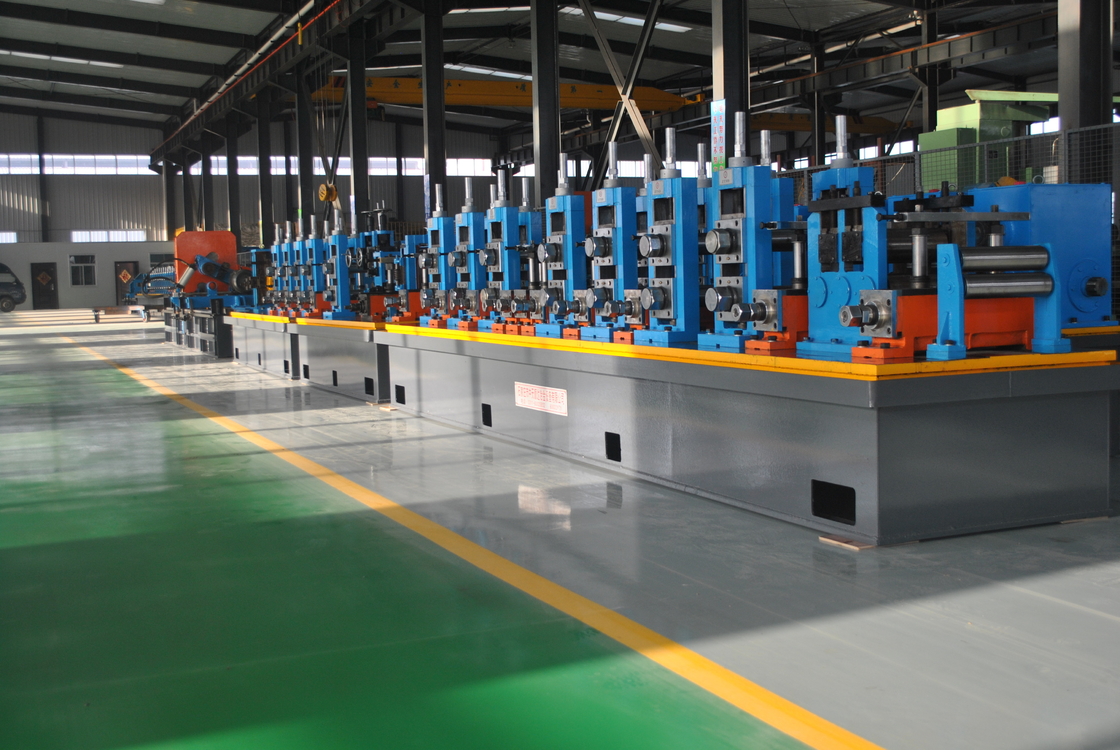

Automatic Tube Mill Machine for Round Square Rectangular Steel Pipes

Name: Automatic Tube Mill Machine for Round Square Rectangular Steel Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ERW50

Detail Information

Place of Origin:

Hebei，China

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ERW50

Material:

Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel

Adjusting:

Worm Gearing

Running Speed:

Max.90m/min

Pipe Shape:

Round, Square & Rectangular

Pipe Diameter:

16 - 76mm

Max.Thickness For Round Pipe:

1.0 - 4.0mm

Welding Type:

High Frequency Welding

Cutting Saw:

Friction Saw Cutting

Name:

Tube Mill Machine

Highlight:

High Light

Highlight:

carbon steel tube mill

tube making machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

100 Sets/Year

Product Description

Automatic Diameter 13-50 x 0.6-2 mm Steel Plate Tube Mill Machine

Key Attributes

Attribute	Value
Material	Hot Rolled Coil, Cold Rolled Coil, Galvanised Steel
Adjusting	Worm gearing
Running speed	Max. 90m/min
Pipe shape	Round, Square & Rectangular
Pipe Diameter	16 - 76mm
Max. Thickness for Round Pipe	1.0 - 4.0mm
Welding Type	High Frequency Welding
Cutting Saw	Friction Saw Cutting

Product Description

High-speed high frequency tube mill machine with max. 76mm diameter and 4mm thickness capability, designed for manufacturing welded steel pipes from Φ76mm-Φ168mm with 2.0mm-6.0mm wall thickness. Capable of producing profiled pipes within round pipe processing limits. Incorporates advanced pipe making technology for economical yet practical operation.

Product Advantages

High precision: Level roller jumps 0.01, frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1, steel pipe diameter and roundness error ≤0.08
Incorporates Japanese technology for high accuracy requirements
Schedulable worm gear and worm adjustment with high precision
3D adjustable scraping scar with ±20° rotation capability
Turkish head push square conversion reduces mold weight while maintaining stable forming and uniform R angles
Nylon damping blocks on level up shafts reduce impact on shafts and bearings

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Technical Specifications

Raw Material

Material application	Hot or cold rolled steel strips, galvanized steel strips
Material grade	Low-carbon steel, low alloy steel: δs≤345Mpa
ID of the steel strips	Φ450-Φ508mm
OD of the steel strips	Φ800-Φ2000mm
Coiler weight	Max. 3000kg

Production Range

Round Pipe	32 - 76mm \| Thickness: 1.0-4.0mm
Square Pipe	2525 - 6060mm \| Thickness: 1.0-3.0mm
Rectangular Pipe	2030 - 5070mm \| Thickness: 1.0-3.0mm

H.F. Welder: GGP250Kw Solid State High Frequency Welder
Line Speed: Max. 70m/min
Tube Length: 4-12m
Cutting Accuracy: ±1mm
Electric installed capacity: approx. 500KW
Size of whole line: about 90×8m

As a CE & ISO9001:2015 certified pipe making machine manufacturer and supplier in China, our high-quality, reliable machines with long service life have been exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Mexico, and Vietnam.
