Product Details:
Payment & Shipping Terms:
|
Model: | HG 20 | Production: | Round Pipe And Square Pipe |
---|---|---|---|
Feature: | High Precision | Name: | Welded Pipe Mill |
Other Pipe: | Square Pipe And Rectangular Pipe | Max Size: | 10-20mm |
Thickness: | 1.0-2.5mm | Length: | 6-12m |
Rollers: | Include | ||
High Light: | 20mm dia welded pipe mill,cs round welded pipe mill,20mm dia welded tube mill |

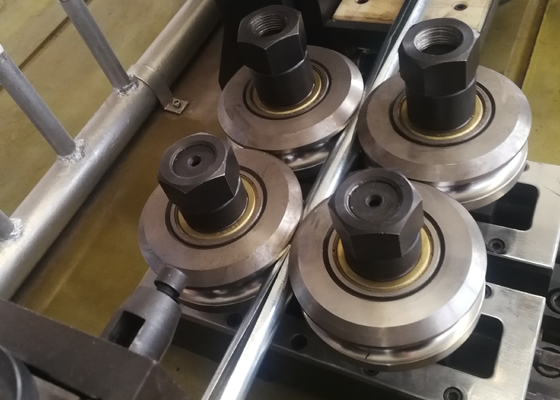

Machine General Introduction
HG 20 High-Frequency Welded Pipe Production Line is designed to produce welded round pipes 10-20 mm in diameter and 2.0-4.0mm in wall thickness. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
(1)Material Specifications: |
|
Standard |
Conforming to the YB189-64 standard |
Material |
Low carbon steel and low alloy constructional steel |
Mechanical properties |
δs≤345Mpa δb≤610Mpa |
Strip Width |
30-80mm |
Strip Thickness: |
2.0-4.0mm |
Inner Diameter of Coils |
φ480~φ570mm |
Outer Diameter of Coils |
φ1000~φ1800mm |
Coil Weight |
≤2.5T |
(2)Pipe Specification |
|
Pipe Diameter |
Round pipe:10-20mm Same size Rec. pipe Thickness:1.0-2.0mm |
Length |
6-12m |
Pipe-cutting Precision |
0-6mm |
Forming Speed |
10-50m/min |
(3)The buyer should self-supply |
|
Work shop |
60x6m, H>5m(crane to ground) |
Power |
Approx.1212KW 380V/50Hz/3phases |
Circulation Cooling Water(whole system) |
Flow:20T/h~30 T/h Pool Volume:30m3 |
Compressed Air (whole system) |
Flow:5m3/min Pressure: 5-7kg/ cm2 |
Others |
Seller will supply list |

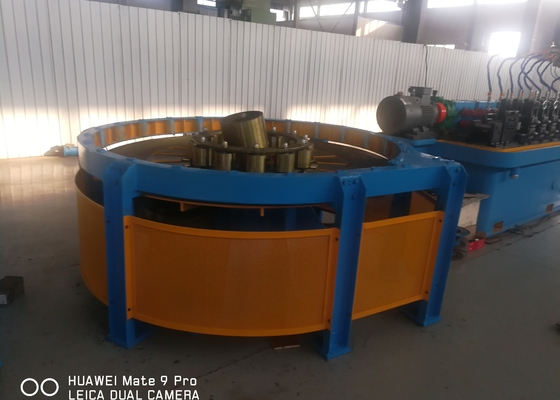

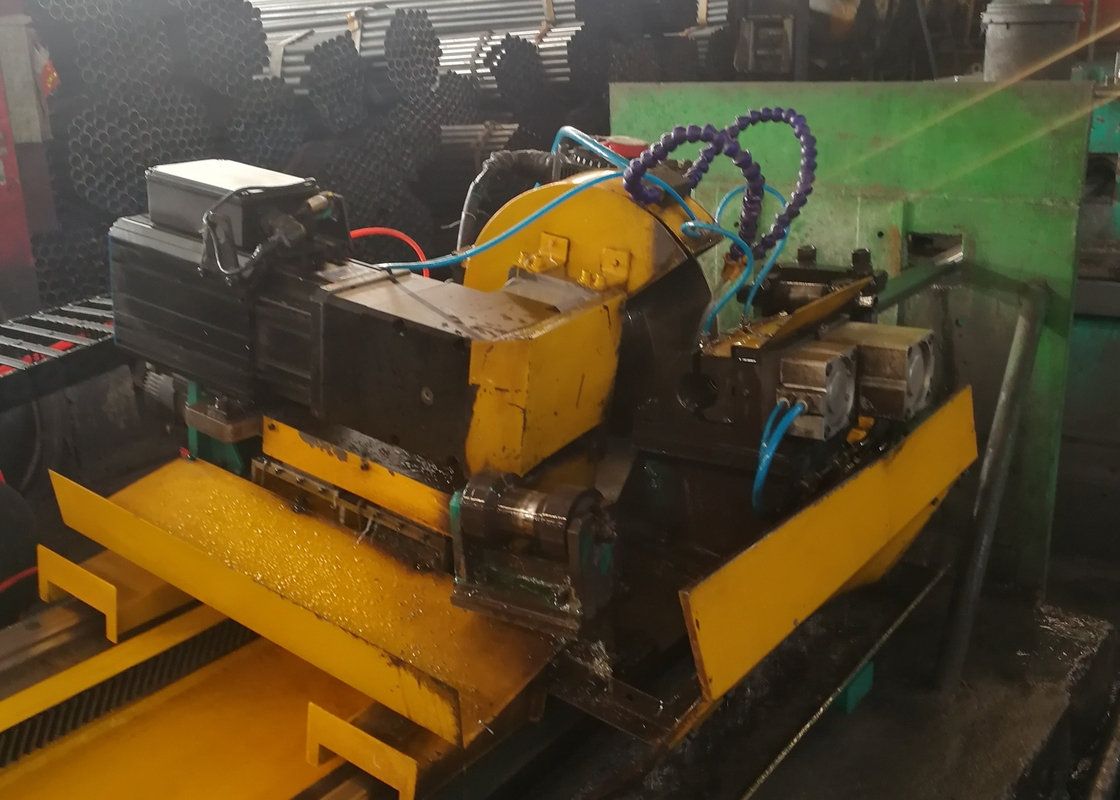

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
Instruction Manual of Pipe Mill(provided at the time of a month before delivery time)
Inspection Certificate (provided at the delivery time)
Loading Order (Provided at the delivery time)
Layout Drawing (provided at the time of a month before delivery time)
Ground Base Drawing (provided at the time of a month before delivery time)
Electrical Principle Diagram
Overall Assembly Drawing of every unit of the line
Part Diagram of Vulnerable Parts
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Delivery Time
Shipped in 45 days after payment
