Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
Quality first, Customer first
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Green HG165.2x9(7”) Speed 60m/min Dia Round Pipe 25-63.5mm Thickness 2-9mm Tube Mill Machine | Pipe Material: | Carbon Steel |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V |
| Power(w): | 650KW | Forming Speed: | Max 60 M / Min |
| Round Pipe Diameter: | 76.3-165.2 Mm | Thickness: | 2-9mm |
| Warranty: | 1 Year | Keywords: | Thickness 2-9mm Tube Mill Machine |
| High Light: | thickness 2mm tube mill machine,computer control tube mill machine,thickness 9mm pipe mill equipment |
||

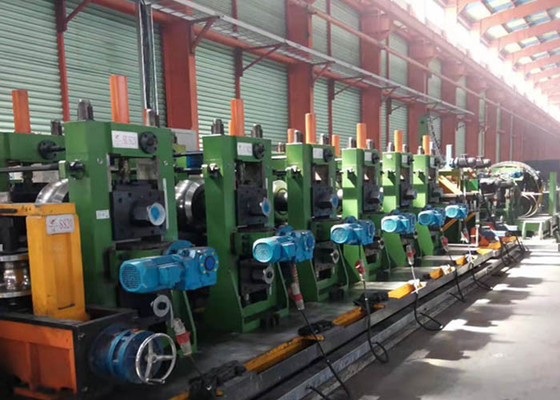

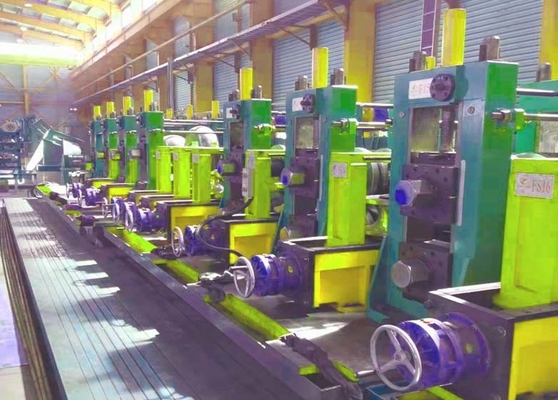

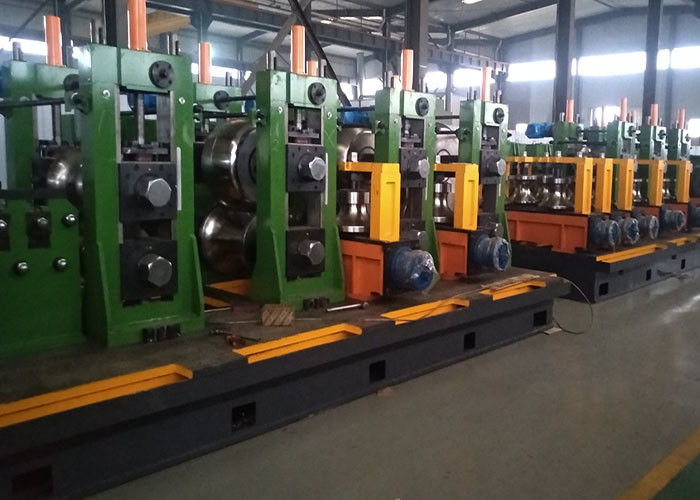

HG 165.2x9(7”) high precision high frequency welded pipe production line is mainly to produce the structural pipe. Produce the round pipe from 76.3-165.2mm with thickness 2.0-9.0mm, the square pipe size75x75-150x150mm,, thickness is from 2.0-9.0mm. The Rec pipe size 100x50-200x100 with thickness 2.0-9.0mm. This production line each unit equipment, full use of the domestic and foreign similar equipment, innovative design, full control with PC or computer control, advanced technology, convenient operation and maintenance, and reached the international level in the early ninety’s, for the domestic leading level.
|
Serial number |
Model |
Thickness(mm) |
Specification(mm) |
Speed(m/min) |
main engine(kw) |
Power(kw) |
area |
|
1 |
H20 |
0.3-1 |
8-20 |
30-120 |
55 |
60 |
7*50 |
|
2 |
H32 |
0.3-2.0 |
12-32 |
30-120 |
75 |
100 |
7*50 |
|
3 |
H50 |
0.8-2.5 |
16-50 |
30-110 |
110 |
150 |
7*60 |
|
4 |
H60 |
0.8-3 |
20-60 |
30-100 |
132 |
200 |
7*65 |
|
5 |
H76 |
1-3 |
12-76 |
30-100 |
320 |
250 |
8*80 |
|
6 |
H89 |
1-4 |
32-89 |
30-80 |
350 |
300 |
8*80 |
|
7 |
HG114 |
1.5-5 |
45-114 |
30-60 |
400 |
300 |
10*100 |
|
8 |
HG165 |
3-7 |
60-165 |
30-50 |
600 |
400 |
10*110 |
|
9 |
HG219 |
4-8 |
114-219 |
20-40 |
800 |
500 |
12*150 |
|
10 |
HG273 |
4-10 |
114-273 |
15-30 |
1000 |
600 |
18*160 |
|
11 |
HG325 |
4-12 |
165-325 |
10-30 |
1200 |
600 |
18*180 |
|
12 |
HG426 |
4-16 |
165-426 |
8-25 |
1400 |
800 |
18*180 |
|
13 |
HG508 |
4-20 |
219-508 |
8-20 |
2000 |
1000 |
21*180 |
Loading car→Uncoil →Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → hydrostatic testing → End facer → Straightener→Packing → Storage
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
Tengtian Tube Mill Co., Ltd. Is a collection of scientific research, production, sales and service as one of the high frequency
welded pipe equipment and opening cold bend steel equipment professional manufacturers. Our company is specializing in the production of high-frequency welded pipe, slitting, opening of cold bend steel, stainless steel and other equipment unit of the enterprise, the company innovation based on introduction of Japan's advanced technology, product production, according to Japan's strict standards of manufacturing. Advanced configuration, stable quality, excellent performance, excellent market visibility and reputation, the product has reached the world's leading level.
The company has a strong technical ability, strong business ability, vibrant team. Through the unremitting efforts of all staff, in recent years the company has occupied most of the domestic market, and exported to Korea, Vietnam, Indonesia, South Africa, Kazakhstan and other dozens of countries and regions, from domestic and foreign customers.Product quality and service quality are the most important core competitiveness of the company. The company close to the customer, close to the market, zero distance, full range, wholehearted service ideas, to promote the products in the pre-sale, sale in the whole process of customer service, quality service, honesty, win-win for the purpose of scientific research, to create first-class products to meet your demand for investment, increase confidence for the establishment and development of you. To provide a reliable guarantee. It is the common mission of all Zhongtian employees to produce high quality products and exceed customer expectations.Look forward to working with your cooperation, let us treat each other sincerely ,hand in hand, create great.
