| Production Name: | Carbon Steel Pipe Mill For Dia 76 Mm Customd Pipe Mill Making Machine | Model: | HG 76 |
|---|---|---|---|
| Feature: | Customed Carbon Steel Pipe Mill | Other Pipe: | Round ,square And Rectangular Pipe |
| Max Size: | 16 - 76 Mm | Thickness: | 0 . 4 - 2 . 75 Mm |
| Length: | 4 M - 6 M | Rollers: | Include |
| Warranty: | One Year | Key Words: | Customed Welded Pipe Mill Making Machine |
| High Light: | dia 76mm carbon steel pipe mill,customs making carbon steel pipe mill,dia 76mm erw tube mill |
||

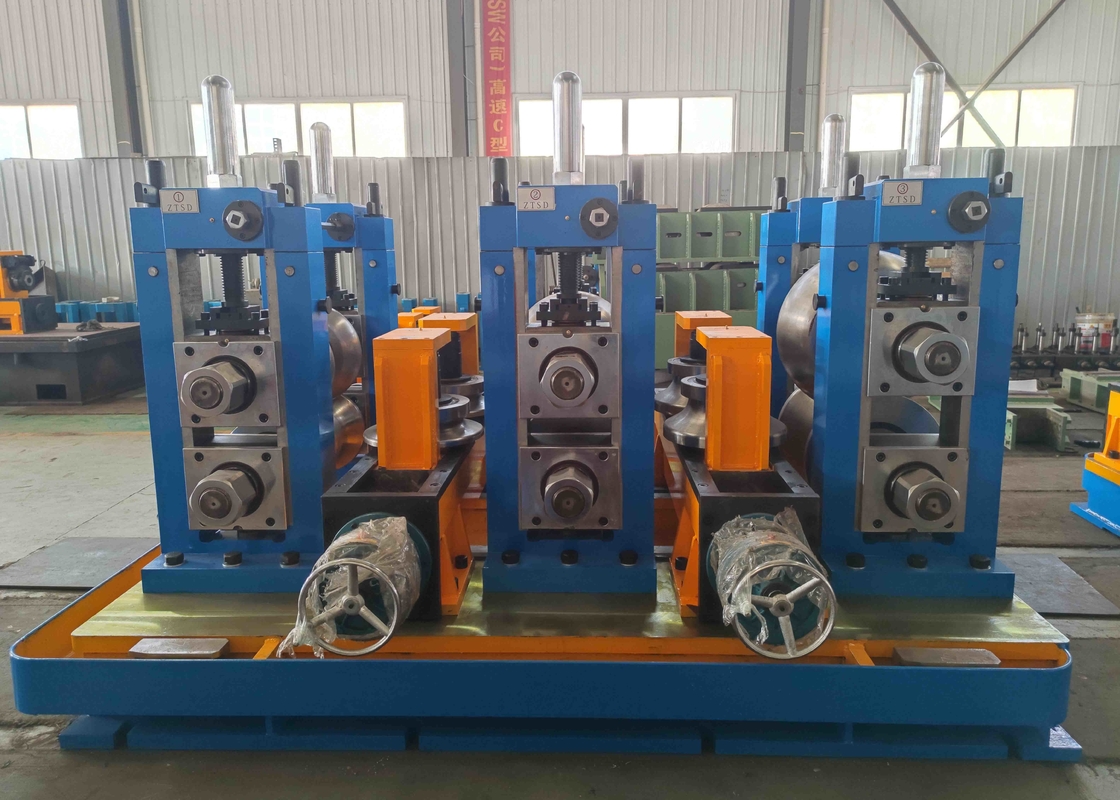

HG 76 high frequency welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Round pipe size: 16 - 76 mm Pipe thickness: 0 . 4 - 2 . 75 mm
⑴ Material Specifications:
|
Conforming to the YB189-64 standard |
|
|
Material |
Low carbon steel and low alloy constructional steel |
|
Mechanical properties |
σb ≤ 380 Mpa,σs ≤ 275 MPa |
|
strip width |
50 ～ 240 mm |
|
strip thickness |
0 . 4 ～ 2 . 75 mm |
|
I.D of Coils |
Φ508mm |
|
O.D of Coils |
φ1800mm |
|
Coil Weight |
≤3.0T |
⑵ Welded Pipe Specification
| Round Pipe Diameter | Φ 16 ～ φ 76 mm |
| pipe thickness | 0 . 4 - 2 . 75 mm |
| Finish pipe length | 6 m - 8 m |
| Cut length accuracy | ± 1 . 5 mm |
| Forming speed | 60 - 120 m/min |
⑶ workshop require : 70 x 6 m , H＞5m
Notice:You can modify it according to the actual length of the workshop
