Product Details:
Payment & Shipping Terms:
|
| Production Name: | Galvanized Steel High Frequency Square Pipe Erw Pipe Mill | Material: | HRC,CRC,Galvanised Steel |
|---|---|---|---|
| Tube Size: | 100x100-200x200 Mm | Tube Thickness: | 5.0-10.0mm |
| Welding Type: | H.F Solid Welder | Pipe Shape: | Square,rectangular,LTZ |
| Roller Materoal: | Cr12/SKD11 | Key Words: | Erw Pipe Mill |
| High Light: | galvanized steel erw pipe mill,high frequency erw pipe mill,square tube erw tube mill |
||

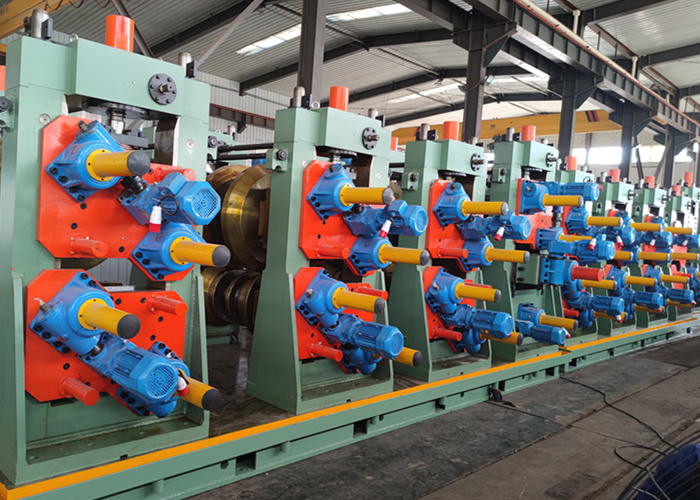

Galvanized Steel High Frequency Square Pipe Erw Pipe Mill is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.the square tube size:100x100-200x200mm, tube thickness: 5.0-10.0mm,also can product LTZ special shape tubes.
After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.
whole line warranty one year
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
