Product Details:
Payment & Shipping Terms:
|
| Production Name: | Straight Seam 114 Mm Welded Pipe Production Line High Speed Pipe Making Line | Feature: | Fast Speed And Hot Rolled |
|---|---|---|---|
| Other Pipe: | Round Pipe And Square Pipe | Max Size: | 76 - 114 Mm |
| Thickness: | 1 . 5 - 4 . 0 Mm | Length: | 4 - 12 M |
| Rollers: | Include | Warranty: | One Year |
| Key Words: | High Speed Pipe Making Mill | ||
| High Light: | Straight Seam Welded Pipe Production Line,114Mm Welded Pipe Production Line,114Mm Pipe Making Mill |
||
Ф 114 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of φ 76 - φ 114 . 3 mm in diameter and 1 . 5 - 4 . 0 mm in wall thickness and same size of square pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
⑴ Material Specifications:
| OD of coil | Φ1000-1800mm |
| ID of coil | Φ520-520mm |
| Width of strip | 230-360mm |
| Thickness of strip | 1.5-4.0mm |
| Weight of strip | Max7T |
| Expansion Type | Mechanically expand |
| Break | Pneumatic driving |
⑵ Welded Pipe Specification
| Square Pipe Diameter | Φ 76 ～ φ 114 mm |
| pipe thickness | 1 . 5 - 4 . 0 mm |
| Finish pipe length | 4 - 12 m |
| Cut length accuracy | ± 3 mm |
| Forming speed | 40 - 60 m/min |
⑶ workshop require : 100 m X 6 m ,at least 5m high
Notice:You can modify it according to the actual length of the workshop

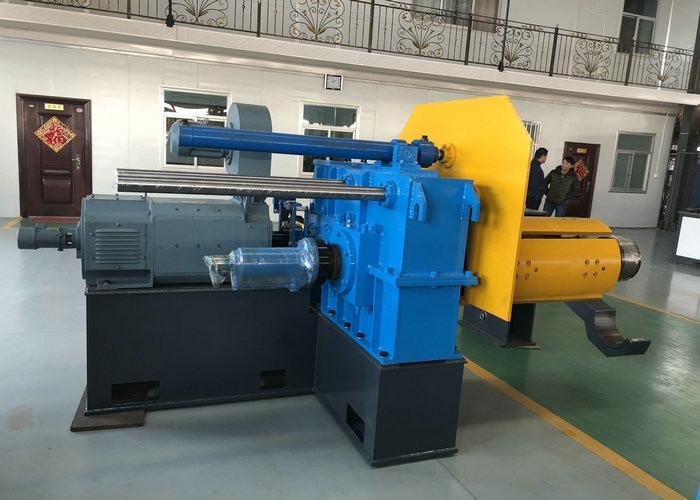

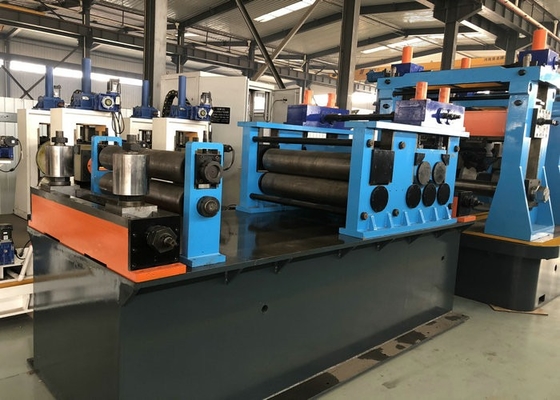

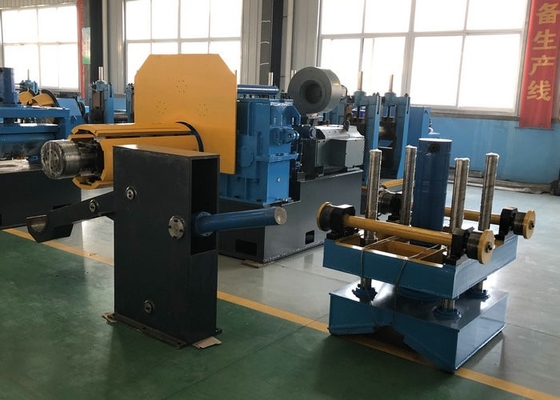

Coil Loading →Cutting and Welding → Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening →cutting saw → Packing → Storage
