Product Details:
Payment & Shipping Terms:
|
| Production Name: | Galvanized Carbon Steel Round Square Tube Mill Machine Export To Thailand | Material: | HRC,CRC,Galvanised Steel |
|---|---|---|---|
| Tube Size: | 18-65 Mm | Tube Thickness: | 0.8-3.0mm |
| Welding Type: | High Frequency Welder | Pipe Shape: | Round,square |
| Roller Materoal: | Cr12/SKD11 | Key Words: | Tube Mill Machine |
| High Light: | 65mm Carbon Steel Tube Mill,65mm Tube Mill Machine,High frequency welder Tube Mill Machine |
||

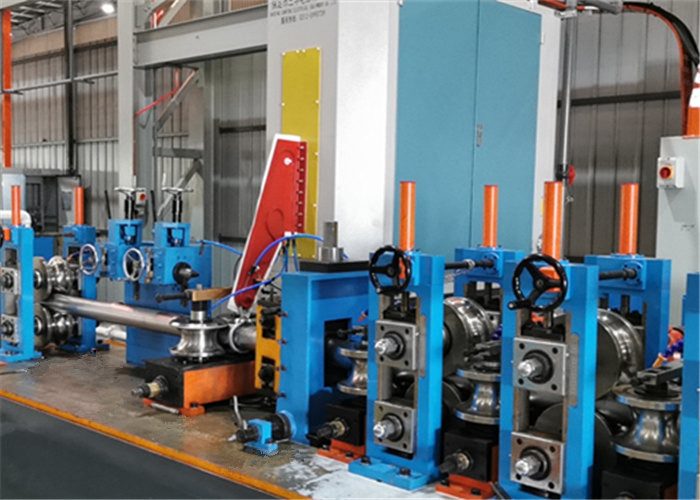

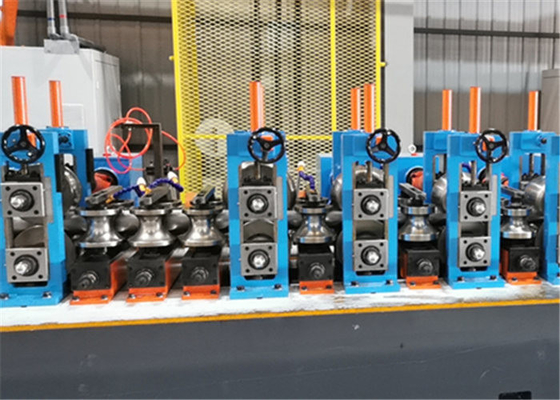

Galvanized Carbon Steel Round Square Tube Mill Machine Export To Thailand is used to manufacture round,square welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.the round tube size:18-65mm, tube thickness: 0.8-3.0mm,also can product LTZ special shape tubes.
After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.
whole line warranty one year
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
