| Product Name: | Diameter 273mm High Frequency Welded Pipe Mill Forming Speed 30m/min | Key Words: | High Frequency Welded Pipe Mill |
|---|---|---|---|
| Diameter Range: | 165mm-273mm | Wall Thickness Range: | 6mm-12mm |
| Forming Speed: | 15-30m/min | Voltage: | 380V |
| Welding Power: | 600KW | Welding Method: | High Frequency |
| Condition: | New | Warranty: | 1 Year |
| High Light: | ss high frequency welded pipe mill,273mm high frequency welded pipe mill,273mm stainless steel tube mills |
||
Diameter 273mm High Frequency Welded Pipe Mill Forming Speed 30m/min
HG 273 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of Ф165-Ф273mm in diameter and 6-12mm in wall thickness. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.The forming speed of HG 273 High Frequency Welded Pipe Mill can reach 15-30 meters per minute.
According to the designing guideline of improving the operating character & environment and the safety & producing character , reducing the cost of the roller to guarantee high efficiency,HG273 production line adopts the double-radius hole style of design .
| Standard | International standard tube mill machine |
| Material | Galvanized steel |
| Outer Diameter of Coils | Φ165mm-Φ273mm |
| Forming Speed | Max 30m/min |
| Product Name: | HG273 High Frequency Welded Tube Mill |
| Voltage | 380V/50Hz/3Phase |
| Welding Power | 600KW |
| Type | High Frequency Welded Tube Mil |
| Cooling System | Water Cooling |
| Model | Specification(mm) | Thickness(mm) | Forming Speed(m/min) | Main Engine(KW) | Power(KW) | Area(m2) |
| HG32 | Φ10-Φ32 | 0.4-1.5 | 30-120 | 250 | 100 | 12*40 |
| HG50 | Φ16-Φ76 | 0.7-2.5 | 30-120 | 400 | 150 | 12*60 |
| HG76 | Φ25-Φ76 | 1-4 | 30-100 | 400 | 300 | 16*80 |
| HG89 | Φ32-Φ89 | 1-4.5 | 30-80 | 500 | 300 | 16*100 |
| HG114 | Φ45-Φ114 | 1.5-5(3-7) | 30-60 | 400 | 300 | 16*100 |
| HG165 | Φ60-Φ165 | 3-7(4-10) | 30-50 | 600 | 400 | 16*100 |
| HG219 | Φ114-Φ219 | 4-8(5-16) | 20-40 | 800 | 500 | 16*150 |
| HG273 | Φ114-Φ273 | 4-10(5-16) | 15-30 | 1000 | 600 | 18*160 |
| HG325 | Φ165-Φ325 | 4-10(4-14) | 10-30 | 1200 | 600 | 24*180 |
| HG426 | Φ165-Φ426 | 4-12.7(4-16) | 8-25 | 1400 | 800 | 24*180 |
| HG528 | Φ219-Φ508 | 4-16 | 8-20 | 2000 | 1000 | 24*180 |

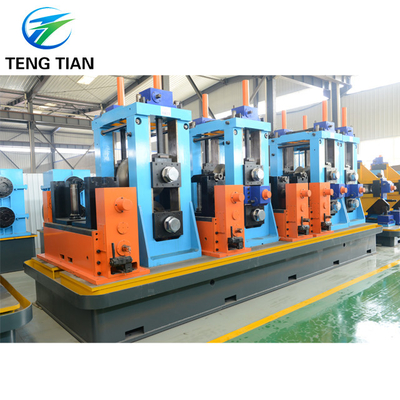

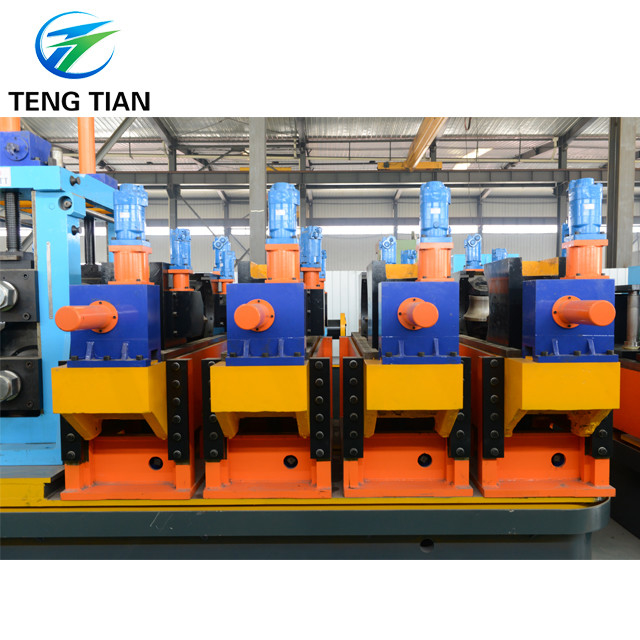

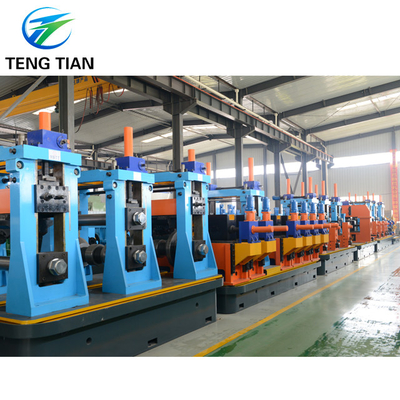

Detail Pictures:
Coil Car→Uncoiler→Pinching and Leveing→Shearing and Butt-welding→Loop Storage→Edge Moving→Forming→Welding→IF Annealing→Water Cooling→Online NDT Treating→Sizing→Cutting→Straightening→End-facing and beveling→Hydrostaic Testing→Product Inspection→Weight and Measuring→Painting and Marking→Storage→Packing
The HG 273 High Frequency Welded Pipe Mill is packaged and shipped in secure, weatherproof containers. The containers are designed to protect the product from shock, vibration, and moisture during transportation. Special packing materials are used to ensure the product is safe during shipping. The product is shipped with an inspection certificate, which includes the name and signature of the responsible inspector.
HG273 High Frequency Welded Pipe Mill Technical Support and Service:
1) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2) Warranty Team:One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3) We supply the pre-sell and after-sell service.
Pre-sell service: workshop design, and production output design
After-sell service: installation and training, and the skilled engineer for working.
4) We can also sent the engineer working for you several months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5) We supply the pre-sell service Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6) We will be responsible for the loading and shipping.
Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
Q1:What is the brand name of Max diameter 273mm High Frequency Welded Pipe Mill?
A1:The brand name of it is TENGTIAN.
Q2:What is the model number of Max diameter 273mm High Frequency Welded Pipe Mill ?
A2:The model number of High Frequency Welded Pipe Mill is HG273.
Q3:What is the width of the welded pipe that HG 273 High Frequency Welded Pipe Mill can produce?
A3:From 6mm to 12mm.We can make the thickness according to the customer's requirement.
Q4:Where is the place of origin of HG 273 High Frequency Welded Tube Mill ?
A4:The place of origin of High Frequency Welded Pipe Mill is Hebei China.
Q5:What kinds of certification does HG 273 High Frequency Welded Tube Mill?
A5:High Frequency Welded Pipe Mill has ISO CE certification.
Q6:What is the minimum order quantity of High Frequency Welded Pipe Mill?
A6:The minimum order quantity of HG 273 High Frequency Welded Tube Mill
is 1 SET.
