| Product: | HG76 High Frequency Welded Tube Mill Machine | Spec: | ø10 - ø76 |
|---|---|---|---|
| Thickness: | 1-4(mm) | Speed: | 30-100(m/min) |
| Pipe Shape: | Square,Round | Warranty: | 1 Year |
| Model: | 76 | Voltage: | 380V |
| Colour: | Blue | Length: | 12 M |
| High Light: | HG76 Tube Mill Machine,High Frequency Welded Tube Mill Machine,Technologically advanced steel tube mill |
||

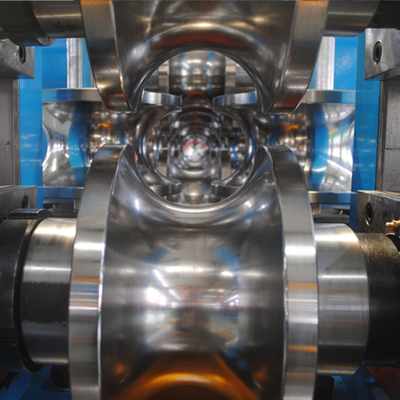

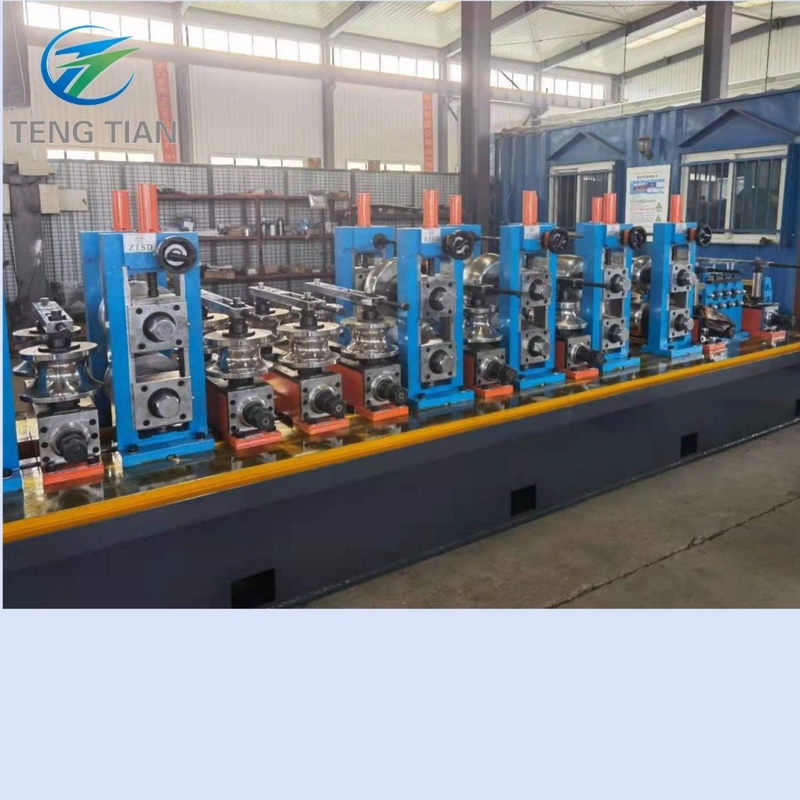

HG76 High Frequency Welded Tube Mill Machine is used to manufacture welded pipe. adopting roll pass design, the production line can manufacture welded pipes with good quality and high precision assembling.
| Specification | Plate Thickness | Forming Speed | Main Section Capacity | solid welder | Area(㎡) |
| Ø 25-Ø76 | 1-4(mm) | 30-100(m/min) | 400(kw) | 300(kw) | 16x80 |
Production Process
Loading car→Uncoil →Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → hydrostatic testing → End facer → Straightener→Packing → Storage
Our Service:
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
Our Model:
| Serial No. | Model | Thickness(mm) | Specification(mm) | Speed(m/min) | main engine(kw) | Power(kw) | area |
| 1 | H20 | 0.3-1 | 8-20 | 30-120 | 55 | 60 | 7*50 |
| 2 | H32 | 0.3-2.0 | 12-32 | 30-120 | 75 | 100 | 7*50 |
| 3 | H50 | 0.8-2.5 | 16-50 | 30-110 | 110 | 150 | 7*60 |
| 4 | H60 | 0.8-3 | 20-60 | 30-100 | 132 | 200 | 7*65 |
| 5 | H76 | 1-3 | 12-76 | 30-100 | 320 | 250 | 8*80 |
| 6 | H89 | 1-4 | 32-89 | 30-80 | 350 | 300 | 8*80 |
| 7 | HG114 | 1.5-5 | 45-114 | 30-60 | 400 | 300 | 10*100 |
| 8 | HG165 | 3-7 | 60-165 | 30-50 | 600 | 400 | 10*110 |
| 9 | HG219 | 4-8 | 114-219 | 20-40 | 800 | 500 | 12*150 |
| 10 | HG273 | 4-10 | 114-273 | 15-30 | 1000 | 600 | 18*160 |
