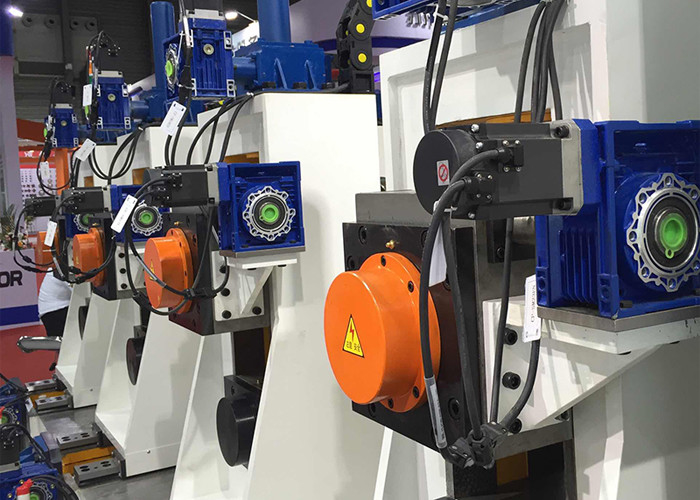

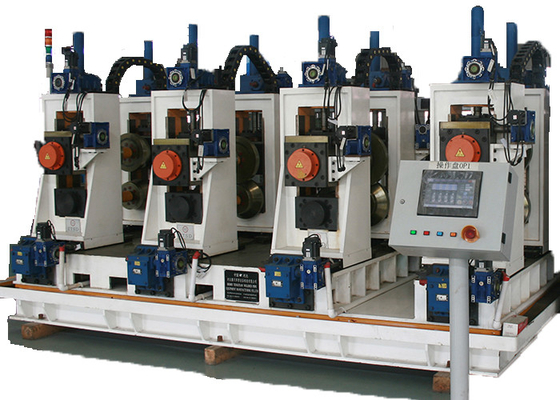

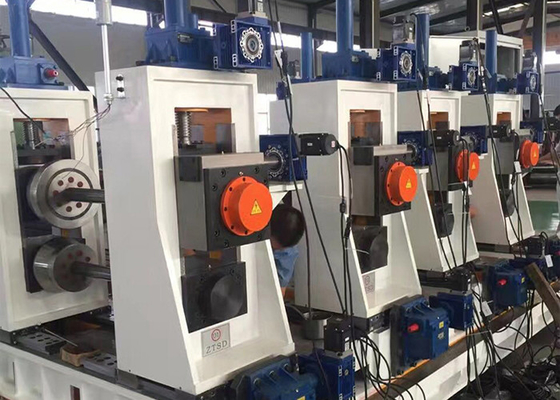

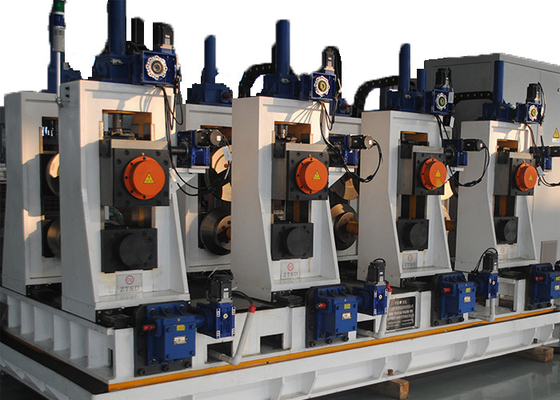

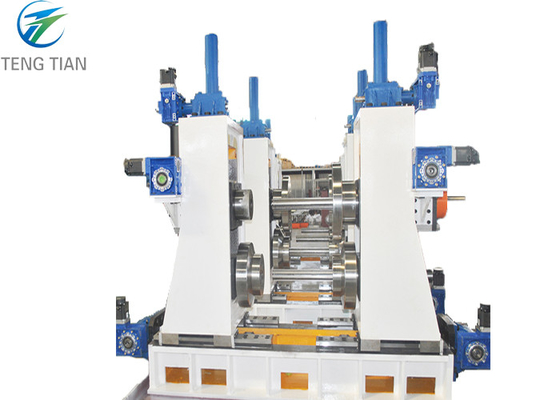

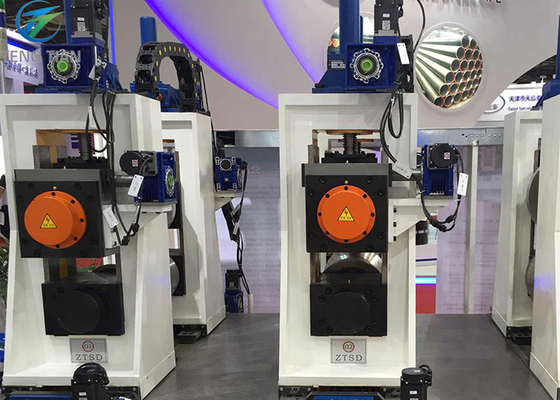

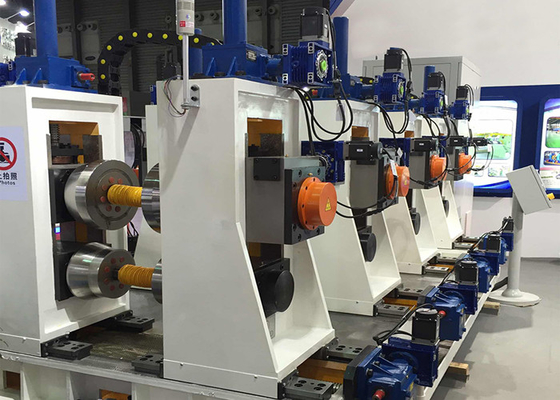

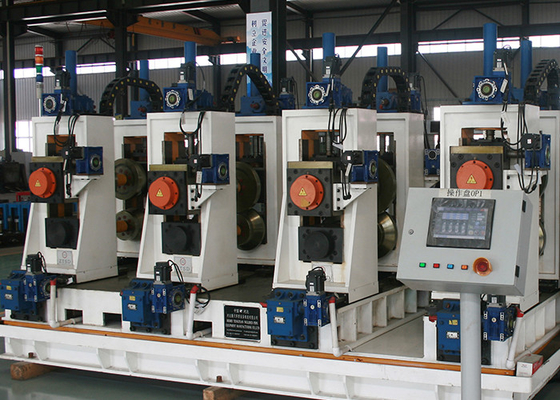

30x30-100x100mm Square Pipes Automatic Tube Mill With DFT Technology

Name: 30x30-100x100mm Square Pipes Automatic Tube Mill With DFT Technology
Brand: Tengtian
SKU: HG100
Price: 1400000.00 USD
Availability: InStock
Rating: 4.8 (192 reviews)

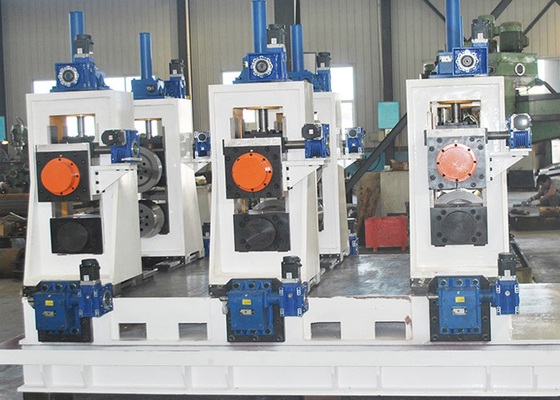

Large Image : 30x30-100x100mm Square Pipes Automatic Tube Mill With DFT Technology

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 1400000.00 Can negotiate the price
Packaging Details:	Standard Export Packing
Delivery Time:	120 days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Other Pipe:	Only Square Pipe	Cutting Method:	Cold Saw
Size:	Customized	Pipe Thickness:	4-12mm
Welding Type:	High Frequency Welding	Welding Method:	High Frequency Welding
Pipe Shape:	Square Rectangular And Profile Pipe	Tube Shape:	Square And Rectangular
Running Speed:	Max. 60 M / Min	Rollers:	Include
Application:	Tube Production	Processing Accuracy:	High
Product Size:	Customer Specified	Motor Power:	22KW
Forming Speed:	High Speed
High Light:	100x100mm Tube Mill , DFT Tube Mill , DFT Automatic Tube Mill

Detailed Product Description

Machine Name:	Automatic Tube Mill	Product:	Square Pipe
Feature:	Precision	Material:	Carbon Steel And Galvanized Steel
Other Pipe:	Rectangular Pipe	Max Size:	100x100mm
Thickness:	3mm	Length:	3-6m
Rollers:	Not Include	Model:	100x100
Key Words:	Automatic Tube Mill
High Light:	Direct Forming Square Pipe Mill , 100x100mm Square Pipe Mill , Pipe Mill Machine Automatically

100x100mm Direct Forming Square Welded Pipe Automatic Tube Mill

Automatic tube mill General Introduction

HG100 Automatic tube mill is designed to produce square pipe 30x30-100x100mm and according size square pipe , thickness 1-3mm. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

According to the designing guideline of improving the operating character & environment and the safety & producing character , reducing the cost of the roller to guarantee high efficiency,HG100 production line adopts the double-radius hole style of design .

Automatic tube mill Main Parameters and Specifications

(1)Material Specifications:
Standard	Internatioanl standard tube mill machine
Material	galvanized steel
Mechanical properties	σb≤520Mpa,σs≤365MPa
Strip Width	120-400mm
Strip Thickness:	1-3mm
Inner Diameter of Coils	Φ508mm
Outer Diameter of Coils	Φ1300～φ2000mm
Coil Weight	≤3T
(2)Pipe Specification
Pipe Diameter	Square pipe :50x50-100x100 mm
Length	3-6m
Pipe-cutting Precision	0-6mm
Forming Speed	max 90m/min for 2 mm thickness
(3)The buyer should self-supply
Work shop	60x12m, H＞5m(crane to ground)
Power	Approx.3500KW 380V/60Hz/3phases
Circulation Cooling Water(whole system)	Flow:30+30 CBM Pool Volume:40m3
Compressed Air (whole system)	Flow:5m3/min Pressure: 5-7kg/ cm2
Cable	All cable outside of my machine, you buy after machine fix location.

Automatic tube mill Working Process

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
