YB189-64 Std Steel Pipe Manufacturing Machine for Round Pipe 0.3-3.0mm

Name: YB189-64 Std Steel Pipe Manufacturing Machine for Round Pipe 0.3-3.0mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: CTL-1250×3mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001
Model Number:	CTL-1250×3mm

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001

Model Number:

CTL-1250×3mm

Product Name:

YB189-64 Std Steel Pipe Manufacturing Machine For Round Pipe High Productive

Thickness Range:

0.3 - 3.0mm

After Sales Service:

Engineers Available To Service Overseas

Cutting Speed:

0-100m/min

Materiial:

HRC; CRC; GI; COLOR STEEL

Keyword:

YB189-64 Std Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

Std Steel Pipe Manufacturing Machine

High Productive Steel Pipe Manufacturing Machine

High Productive Steel Pipe Making Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

90 working days

Payment Terms:

T/T,L/C

Supply Ability:

20 Sets / Year

Product Description

YB189-64 Std Steel Pipe Manufacturing Machine For Round Pipe High Productive

Product Features

High precision pipe manufacturing
Stable performance with high yield
Fully automated operation
Simple operation with durable construction
Continuous production with high efficiency
Minimal material waste and low production cost

Machine Components

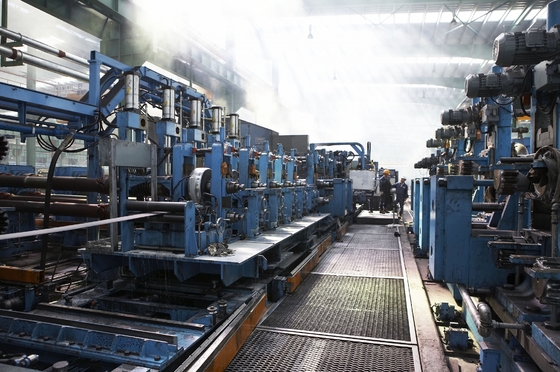

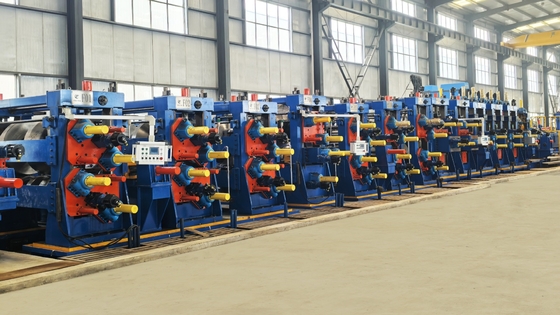

Complete production line includes: Uncoiler, forming welding section, welding seam leveling, welding seam grinding section, initial sizing section, bright solid solution, sizing and straightening section, pipe cutting machine, and output cutting platform.

Control System

Intelligent high-precision PLC control with man-machine display interface for simple, safe, and reliable operation.

Material Specifications (YB189-64 Standard)

Parameter	Specification
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa, σs≤275MPa
Strip width	50～240mm
Strip thickness	0.4～2.75mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤3.0T

Welded Pipe Specifications

Parameter	Specification
Round Pipe Diameter	Φ16～φ76mm
Pipe thickness	0.4-2.75mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	60-120m/min

Additional Specifications

Thickness Range: 0.3 - 3.0mm
Cutting Speed: 0-100m/min
Material Compatibility: HRC; CRC; GI; COLOR STEEL
After-sales Service: Engineers available for overseas service
