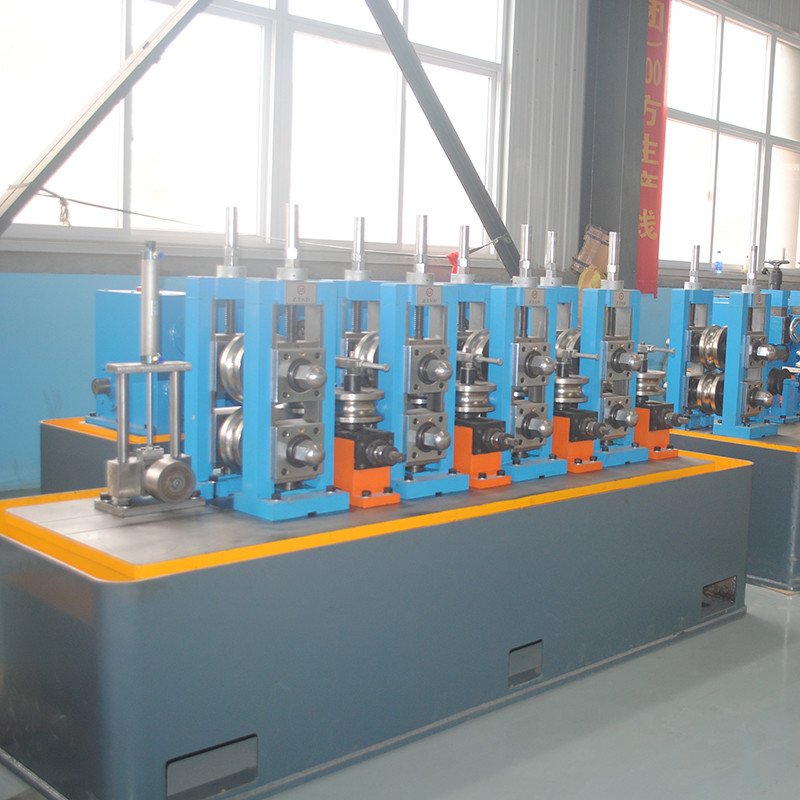

CE Certified Steel Pipe Manufacturing Machine 1-5mm Thickness

Name: CE Certified Steel Pipe Manufacturing Machine 1-5mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: CTL-1600×5mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001
Model Number:	CTL-1600×5mm

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001

Model Number:

CTL-1600×5mm

Product Name:

CE Certification Steel Pipe Manufacturing Machine Automatic Line

Thickness Range:

1.0 - 5.0mm

After Sales Service:

Engineers Available To Service Overseas

Cutting Speed:

0-100m/min

Materiial:

HRC; CRC; GI; COLOR STEEL

Keyword:

Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

HRC steel tube making machine

steel tube making machine Automatic

HRC Steel Pipe Making Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

90 working days

Payment Terms:

T/T,L/C

Supply Ability:

20 Sets / Year

Product Description

CE Automatic HRC Steel Tube Making Machine Line

Product Specifications

Attribute	Value
Product Name	CE Certification Steel Pipe Manufacturing Machine Automatic Line
Thickness Range	1.0 - 5.0mm
After sales service	Engineers available to service overseas
Cutting Speed	0-100m/min
Material	HRC; CRC; GI; COLOR STEEL

Product Description

The CE Certification Steel Pipe Manufacturing Machine Automatic Line is designed to uncoil and level coil strips, then shear them to specified lengths at speeds up to 100m/min. This high-performance cut-to-length (CTL) machine is ideal for processing thin sheets or coils with precision and efficiency.

System Components

The ISO9001 certified system includes: coil loading car, single-mandrel decoiler, coil-head guide, press & shoveling equipment, pinch-feeding roller & leveling machine, hole accumulator, side guide, fine leveling & length-fixing machine, pneumatically mechanical shearing machine, delivery belt, piling-up bracket, up-down lifting table, moving-out car, hydraulic system and electric control system.

Technical Capabilities

The high-speed CTL machine processes steel coils with thickness ranging from 0.2-5mm, with customizable width and length specifications to meet customer requirements.

Key Features and Advantages

Fast speed and high precision: Operating at up to 100m/min (25-30pcs/min for 2000mm sheets). Precision levels: ±1mm/m² for leveling, ±0.5mm/m for sheet length, ±0.5mm/m for diagonal length.
Optimized uncoiling: Single mandrel (cantilever) uncoiler design for efficient processing of lighter coils.
Precision leveling: Scientifically calculated leveling roller diameters ensure perfectly flat steel sheets.
Automated stacking: Integrated piling-up bracket organizes finished sheets automatically.
Surface protection: Hole accumulator between leveling stages safeguards sheet quality while maintaining synchronization.

Model Specifications

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW in Metres)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24
