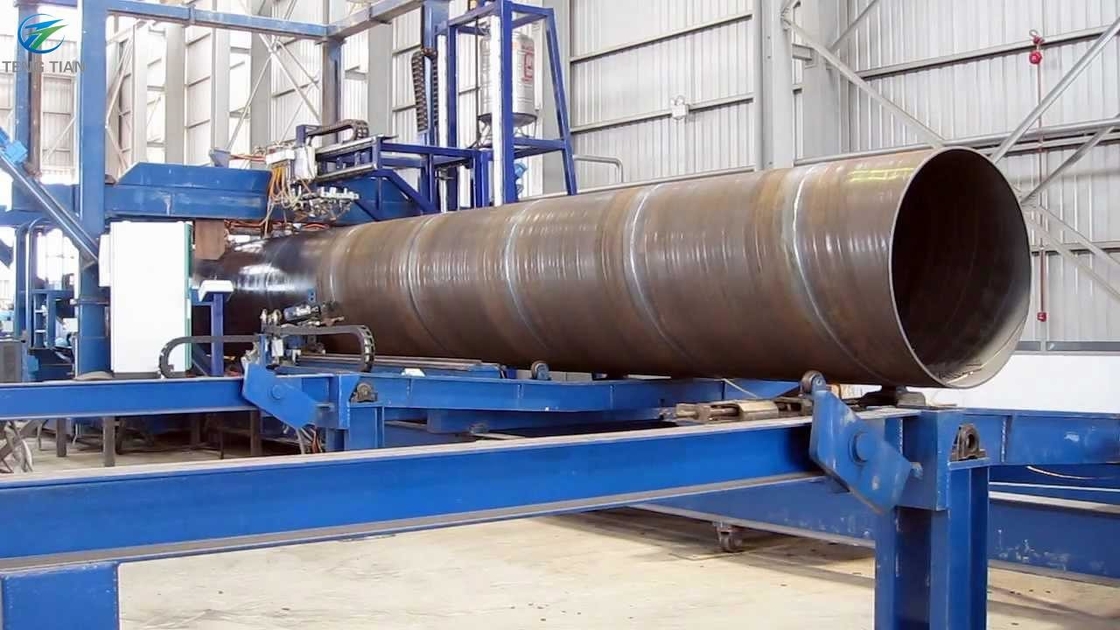

2000mm Steel Pipe Manufacturing Machine Submerged-Arc Welding 380V

Name: 2000mm Steel Pipe Manufacturing Machine Submerged-Arc Welding 380V
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LXSY-600
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001
Model Number:	LXSY-600

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001

Model Number:

LXSY-600

Product Name:

2000mm Large Steel Pipe Manufacturing Machine Submerged-arc Welding 380V Power

Usage::

Perform Leaking And Hydraulic Pressure Test

Pipe Diameter:

50-610mm(ERW Mill) 219-2400 Mm (spiral Mill)

Pipe Length::

6-12m

Max. Testing Pressure::

20mpa, 50mpa, As Per Pipe Usage

Color:

Up To Client

Capacity:

60 - 100kw

Highlight:

High Light

Highlight:

2000mm Steel Pipe Manufacturing Machine

Large Steel Pipe Manufacturing Machine

Steel Pipe Making Machine 380V

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

to be packed into container or in bulk cargo for oversize parts and delivered by sea/ railway

Delivery Time:

3 months

Supply Ability:

30 Set / Year

Product Description

2000mm Large Steel Pipe Manufacturing Machine Submerged-Arc Welding 380V Power

Product Specifications

Attribute	Value
Product Name	2000mm large Steel Pipe Manufacturing Machine submerged-arc welding 380V Power
Usage	Perform leaking and hydraulic pressure test
Pipe Diameter	50-610mm (ERW Mill) 219-2400 mm (spiral mill)
Pipe Length	6-12m
Max. Testing Pressure	20mpa, 50mpa, as per pipe usage
Color	Customizable per client requirements
Capacity	60 - 100kw

Technical Specifications

Models of Hydraulic Tester for ERW Mill

Model	Specification(mm)	Length(m)	Pressure(Mpa)	Capacity(Kw)	Area(estimated M)
ZFSY-100	Φ50~Φ114	6~12	≤50	65	5×12
ZFSY-160	Φ60~Φ168	6~12	≤50	65	5×12
ZFSY-220	Φ89~Φ219	6~12	≤50	75	5×12
ZFSY-350	Φ140~Φ355	6~12	≤70	85	6×20
ZFSY-400	Φ168~Φ426	8~12	≤70	65	6×22
ZFSY-500	Φ219~Φ508	8~12	≤70	85	6×22
ZFSY-600	Φ219~Φ610	8~12	≤70	100	6×22

Models of Hydraulic Tester for Spiral Pipe Welded Mill

Model	Specification(mm)	Length(m)	Pressure(Mpa)	Capacity(Kw)	Area(estimated M)
LXSY-400	Φ219~Φ426	6~12	≤50	65	5×12
LXSY-600	Φ219~Φ630	6~12	≤50	65	5×12
LXSY-800	Φ325~Φ820	6~12	≤50	75	5×12
LXSY-1000	Φ426~Φ1020	6~12	≤42	85	4×20
LXSY-1400	Φ508~Φ1420	8~12	≤21	65	4×22
LXSY-1800	Φ630~Φ1820	8~12	≤21	85	4×22
LXSY-2400	Φ720~Φ2400	8~12	≤21	100	4×22
LXSY-3000	Φ820~Φ3000	8~12	≤21	120	4×25
LXSY-3500	Φ1020~Φ3500	8~12	≤21	160	6×30

Product Overview

A hydraulic tester is used to perform leaking and hydraulic pressure tests on ERW or spiral welded pipes. The test involves sealing the two ends of the pipe, filling the pipe with a liquid (typically water, which may be dyed for visual leak detection), and pressurizing the vessel to the specified test pressure. Pressure tightness can be verified by shutting off the supply valve and monitoring for pressure loss. Our hydraulic tester meets API standards.

Key Differences Between ERW and Spiral Welded Pipe Testers

Longitudinal weld pipe hydraulic testers employ outside diameter sealing or sealing for large gaps. Hydraulic testers for spiral welding pipes use polyurethane to seal the pipe end faces and feature a system to maintain oil and water balance.

Process Flow

Pipe installation
Sealing
Water filling
Pressurization
Pressure relief
Drainage
Pipe uninstallation
