Product Details:
Payment & Shipping Terms:
|
| Product Name: | PLC Control Carbon Steel Pipe Mill Machine Cold Cut For High Precision Pipe | Motor Type: | Servo Motor |
|---|---|---|---|
| Cutting Speed: | Max.100m/min | Warranty: | 1 Year |
| Tube Size: | 15-50mm | Thickness: | 0.5-3.0mm |
| Cutting Accuracy: | ≤±1 Mm | Keyword: | PLC Control Pipe Mill Machine |
| Highlight: | tube milling machine,steel pipe making machine,steel pipe manufacturing machine |
||

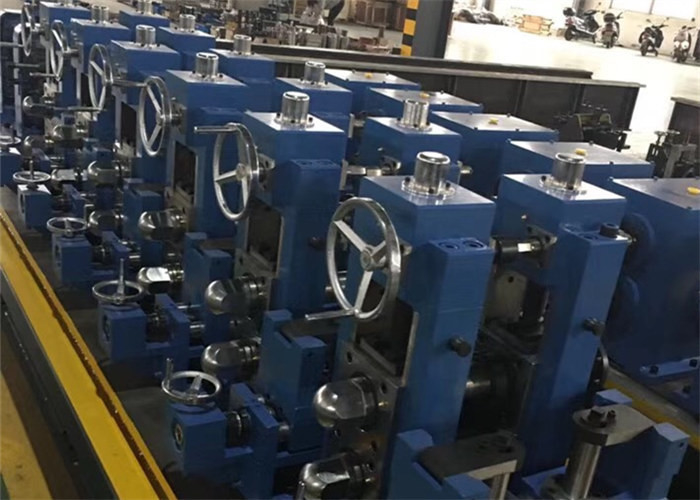

PLC Control Carbon Steel Pipe Mill Machine Cold Cut for High Precision Pipe
Equipment description
PLC Control Carbon Steel Pipe Mill Machine Cold Cut for High Precision Pipe
is a Very important link in the high frequency welded pipe production line,The cold cut saw's biggest advantage is to ensure the slice of high smoothness,that greatly improved the quality of products, but also save the manpower and product consumption.
The main parameters of 50 Cold saw
1. Drive Motor: YASKAWA Servo 11kw
2. Cutting Feed Motor: YASKAWA Servo 2kw
3. Blade Rotate Motor: YASKAWA Servo 5.5kw
4. Cutting Size: Pipe Diameter 15--50.8mm
5. Cutting Thickness: 0.8--3.0mm
6. Mill Speed: 100m/min
7. Cutting Frequency: 14/min
8. Precision: ±1mm
9. Full digitilized control, LCD human-computer interface to set up and amend parameters.
| Specification & Technical Parameters | TT50 | TT76 | TT114 |
| Round Tube | 15-50.8 mm | 20-76.2 mm | 38-114 mm |
| Square Tube | 12-40mm | 15-60mm | 30-80mm |
| Rectangle Tube | 15x10…50x30 mm | 20x10…80x40 mm | 20x40…100x60 mm |
| Thickness | 0.8-3mm | 0.8-4.0mm | 1.0-5.0mm |
| Speed |
100 m/min. |
80 m/min. |
70 m/min. |
| Precision | ±2mm | ±2mm | ±2mm |
Usage ( finished pipe show ): Cutting round, square&rectangular tube :
