Home > Products >
Pipe Mill Machine
>
Fully Automatic Tube Milling Machine for 10-50mm Carbon Steel Pipes
Fully Automatic Tube Milling Machine for 10-50mm Carbon Steel Pipes
  • Fully Automatic Tube Milling Machine for 10-50mm Carbon Steel Pipes

Fully Automatic Tube Milling Machine for 10-50mm Carbon Steel Pipes

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: HG50
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE ISO
Model Number:
HG50
Product Name:
Carbon Steel Material Fully Automatic Tube Milling Machine
Pipe Diameter:
10-50mm
Product Speed:
Max 90m/min
Pipe Thickness:
1.0-3.0mm
HF Welder:
300KW
Keyword:
Fully Automatic Tube Milling Machine
Highlight:

High Light

Highlight:

Fully Automatic Tube Milling Machine

,

Carbon Steel Tube Milling Machine

,

Automatic Tube Milling Machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
packed in seaworthy material
Delivery Time:
two months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
100 set per year
Product Description
Carbon Steel Material Fully Automatic Tube Milling Machine
Product Specifications
Attribute Value
Pipe Diameter 10-50mm
Product Speed Max 90m/min
Pipe Thickness 1.0-3.0mm
HF Welder 300KW
Product Description
Our 380V power pipe mill machine features a 300KW solid state welder for structural support applications. This advanced steel pipe making machine incorporates world-class W, FFX, and FF forming methods with German roll forming design technology.
Manufacturing Process
  1. Coils: Carbon steel coils prepared for pipe production
  2. Uncoiler: Steel coil loading onto the uncoiler
  3. Leveler: Coil stock leveling process
  4. Butt Welding: Connecting coils for continuous forming
  5. Mill: Roll forming flat steel into pipe shape
  6. Mill Rollers: Precision shaping to size specifications
  7. Welder: Electric resistance welding completion
  8. Scarfer: Seam smoothing for uniform finish
  9. Saw: Precision cutting to length
  10. Collecting: Final product collection for packaging
Material Applications
Application Self-colour/Black Semi-bright Pre-galvanised Aluminised Perforated MAGNAtube
Agriculture ✓ ✓ ✓ ✓
Appliances ✓ ✓
Automotive ✓ ✓ ✓ ✓ ✓
Construction ✓ ✓
Energy ✓ ✓ ✓ ✓
Greenhouse ✓
Coastal & Marine ✓ ✓ ✓
Solar & Wind ✓ ✓ ✓
Transportation ✓ ✓ ✓
Furniture ✓ ✓
Product Images

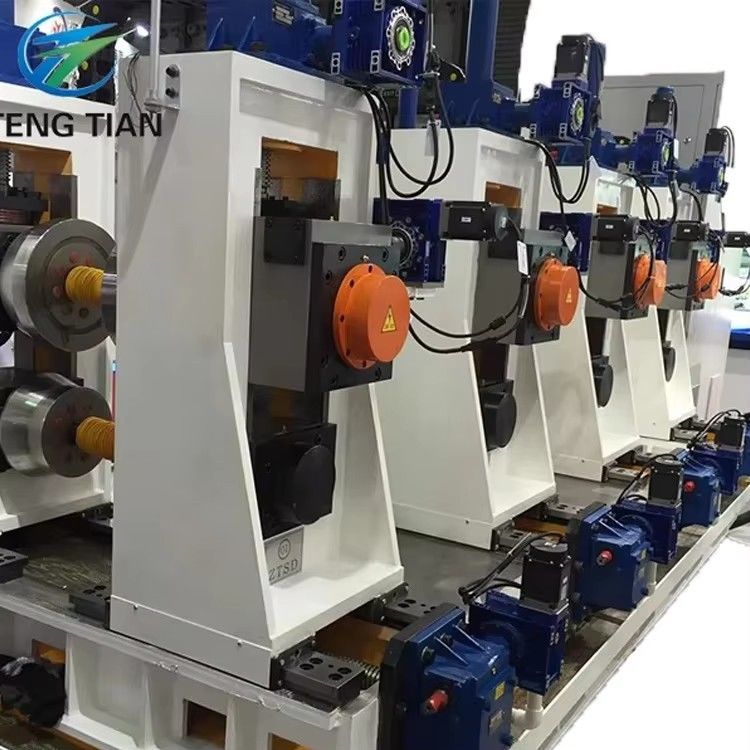

Carbon steel tube milling machine overview Close-up of tube milling machine rollers Tube milling machine control panel Tube milling production line Finished pipe output from milling machine Machine operator monitoring production Quality inspection of milled tubes Technical diagram of tube milling process
Frequently Asked Questions
Q: Are you manufacturer or trading company?
A: We are the manufacturer with over 20 years of experience.
Q: What is the maximum pipe size you have produced?
A: Maximum diameter of 630mm.
Q: Can I visit your customer machine line?
A: Yes, with prior agreement from our customer.
Q: What are your machine advantages?
A: Features include full automation, direct square forming, shared rollers, and fast change system.
Q: How can I get a quotation?
A: Please provide your pipe size and thickness requirements.
