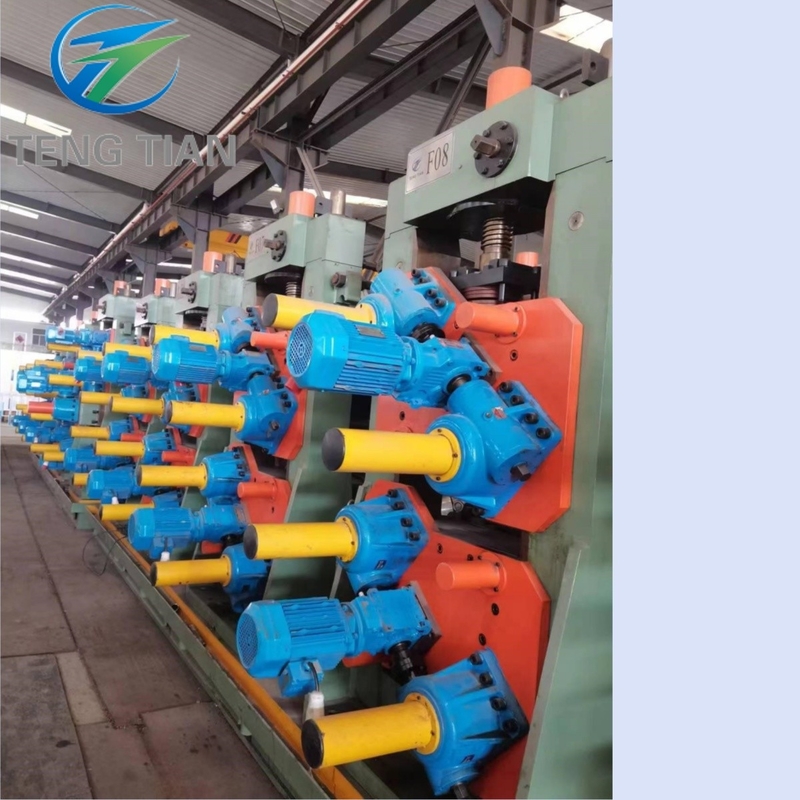

Automatic Steel Pipe Mill Machine 20-76mm Diameter 90m/min

Name: Automatic Steel Pipe Mill Machine 20-76mm Diameter 90m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HG76

Product Name:

Automatic Steel Pipe Mill Machine Servo Motor

Product Speed:

Max 90m/min

Pipe Diameter:

20-76mm

Pipe Thickness:

1.0-3.5mm

Special Require:

Can Design According To The Customer

Keyword:

Cold Saw Pipe Mill Machine

Highlight:

High Light

Highlight:

tube milling machine

steel pipe making machine

steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

one month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

Automatic Steel Pipe Mill Machine Servo Motor

Product Specifications

Attribute	Value
Product Name	Automatic Steel Pipe Mill Machine Servo Motor
Product Speed	Max 90m/min
Pipe Diameter	20-76mm
Pipe Thickness	1.0-3.5mm
Special Requirements	Can be designed according to customer specifications

Product Description

Our cold cutting saw can cut tubes at speeds up to 120m/min. The automatic control system optimizes blade position based on tube diameter and thickness, adjusting feeding speed and blade rotation to ensure superior cut surface quality with no burrs. This system eliminates mechanical clearance during operation, reduces blade wear, minimizes waste, lowers production costs, and extends machine service life.

Production Process

Material (steel coil) → Uncoiler → Shear and Welder → Horizontal (or Cage) Accumulator → Forming Mill → HF Solid Welder → Sizing Mill → Rough Straightening (Turkey Head) → Cold Cut Pipe Saw → Run Out Table

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20

Note: These models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your specific requirements.
