Product Details:
Payment & Shipping Terms:
|
| Item Name: | Pipe Precision Roller Mill Machine And Tube Saw Servo Motor | Special Require: | Can Design According To The Customer |
|---|---|---|---|
| Material: | Steel Pipe,stainless Pipe | Product Speed: | Max 120m/min |
| Pipe Diameter: | 10-50mm | Pipe Thickness: | 1.0-3.0mm |
| Highlight: | tube milling machine,steel pipe making machine,steel pipe manufacturing machine |
||
Brief introduction

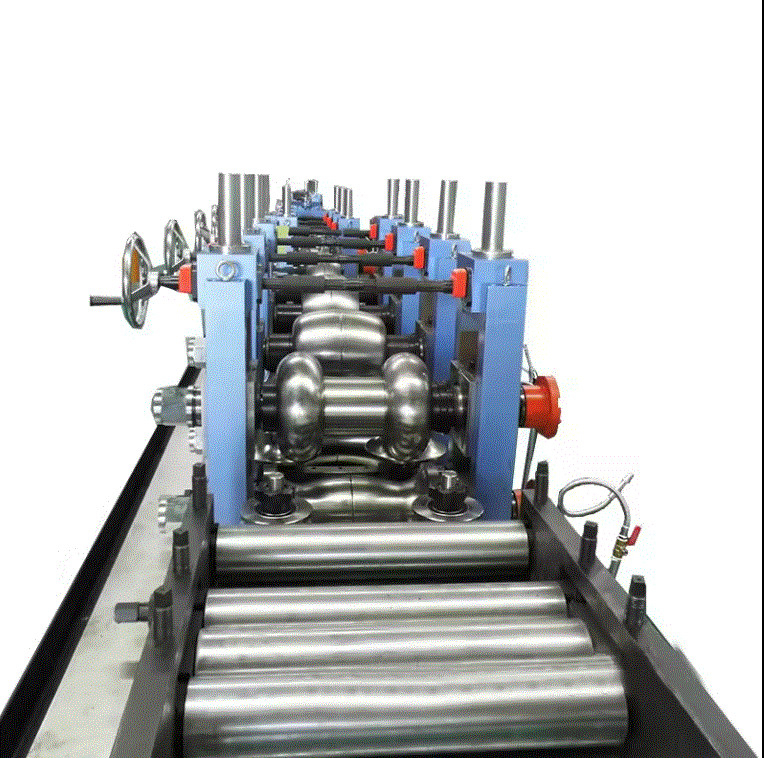

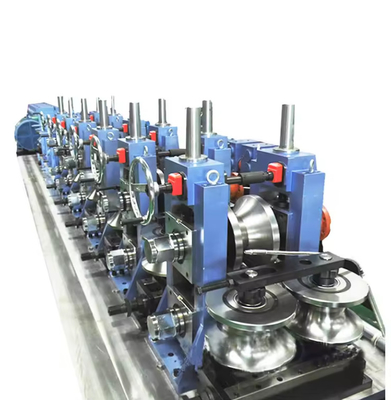

h.f pipe welding Pipe Mill Machine automatic steel pipe cold cutting machine is used for cutting metal pipe automatically.It can realize auto program and auto CNC nesting work for any complicated joint type of intertube,pipe,etc. and can cut any type welding bevel at one time.This product is widely used for steel structure,shipbuilding,bridge and heavy machine industries.Suitable fo cutting cylinder branch,two or three -layer saddle cutting of the main pipe.It is suitable for large quantities of professional intersection pipe cutting.Cutting material: low carbon steel, stainless steel and non-ferrous metal, etc. machine can be designed according to the different needs of users.
Features
1. Equipped with professional control system for variety types of cuts, including tees, miters, saddles, centerline offsets, multiple intersections, elbow supports, gusset slots; round, rectangular, saw cut, overlapping pipe holes, re-pads with axial offsets and baseline or work point offsets, , and other types of intersecting cuts.
2. Precise casting parts and strict manufacture and test procedures ensure high accuracy, reliability and durability.
3. Integrated with specialized programming and computing modules for complicated large steel structure construction, it can generate CNC codes from Auto CAD drawings to save operators' and engineers' time. And these modules are compatible with IGES, DXF, SAT and STL files.
4. Automatic, servo driven height sensing system compensates vertical position for out-of-round pipe. In-feed and out-feed conveyors available for loading/unloading.
5. 3D operating interface for easy operation.
6.Six CNC axes(Left/Right, Front/Rear, Up/Down, Rotation, Torch-Twisting,Torch-lifting) perform cutting pipe profile.
Technical parameters
| Cutting Pipe Diameter (mm) | 50-630 | 60-800 | 100-1000 | 200-1250 |
| Pipe length (mm) | 1000-12000 mm or as required. | |||
| Max pipe loading (Kg) | 2000 | 3500 | 4000 | 5000 |
| Cutting Speed (mm/min) | 80-1800 | |||
| Cutting Thickness (mm) | Oxy-fuel:6-60mm, Plasma:upon plasma source | |||
| Plasma max beveling angle | ≤±45° | |||
| Flame max beveling angle | ≤±60° | |||
| Basic components | ||||
| Pipe Chuck | 3 jaws concentric chuck | |||
| Cutting Mode | Oxy-fuel,Plasma and laser | |||
| Number of Control Axes | 2-6 | |||
| Driving Motor | Panasonic, Mitsubishi servo motor | |||
| Gearbox | SEW gearbox | |||
| CNC Controller | Upon requirement | |||
| Plasma Power | Thermadyne, Kjellberg, Hypertherm,etc | |||
| Other Specifications | ||||
| Working temperature | - 10°C -45°C | |||
| Humidity | <90%, no condensation | |||
| Surroundings | Ventilation, no big shake | |||
| Power voltage | 3×380V±10% or up by user’s local condition | |||
| Operation language | English or Chinese | |||
| Options | ||||
| Option Item | Heating and cooling systems, | |||
| Programming software | ||||
| integration dust extraction | ||||
Application
1.Intersection cylindrical hole cutting of different directions and diameters on main pipe for vertical intersection between branch pipe and main pipe.
2.Intersection cylindrical end cutting on brand pipe for vertical intersection between branch pipe and main pipe.
3.Bevel cutting on Pipe end
4.Welding Elbow cutting on pipe
5.Branch pipe Intersection end cutting connected with ring main pipe
6.Square hole and branch hole cutting on pipe
7.Cutting off of pipes
The main parameters of 540 Computer flying saw
1. Cutting Length: 0.5---32m Tunable
2. Cutting Precision: ±3mm
3. Max Cutting Frequency: 10 cuttings per min
4. Max Speed: 50m/min
5. Max Thickness of Pipes: 6 mm
6. Saw Head Action: Hydraulic Drive (Flat-pushing Manipulation)
7. Pipe Clamp: Hydraulic Clamping.
| Material: | HRC,CRC, | Motor Type: | Servo Motor |
| Cutting Speed: | Max50m/min | Warranty: | 1 Year |
| Round Pipesize: | 60-165mm | Thickness: | 2.0-6.0mm |
| Cutting Accuracy: | ≤±2 Mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Saw Blade: | HSS / TCT Saw Blade | Square Pipe Size: |
50*50 - 150*150mm |
Cold Cutting Saw for Pipe & Profiles:
Automated sawing tubes inline/offline & High Production.
High Speed Steel or Carbide Tipped Blades.
YASKAWA/SIEMENS servo motor & famous brand electric spare parts.
Almost fit for a variety of tube profiles.
Remove secondary chamfering or de-burring.
Carbon Steels, Stainless Steels, HSLA.
High speed and high precision cutting.
