Pipe Mill Machine
>
CNC Hydraulic Steel Pipe Mill Machine 10-50mm Diameter

CNC Hydraulic Steel Pipe Mill Machine 10-50mm Diameter

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE ISO
Model Number: HG50
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE ISO
Model Number:
HG50
Product Name:
Cnc Hydraulic Steel Pipe Mill Machine Full Automatic
Pipe Thickness:
1.0-3.0mm
Pipe Diameter:
10-50mm
Product Speed:
Max 90m/min
Material:
Steel Pipe,stainless Pipe
Special Require:
Can Design According To The Customer
Keyword:
Pipe Mill Machine
Highlight:

High Light

Highlight:

tube milling machine

,

steel pipe making machine

,

steel pipe manufacturing machine

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
packed in seaworthy material
Delivery Time:
one month
Payment Terms:
L/C,T/T
Supply Ability:
50 set per year
Product Description
CNC Hydraulic Steel Pipe Mill Machine - Full Automatic
Product Specifications
Attribute Value
Pipe Thickness 1.0-3.0mm
Pipe Diameter 10-50mm
Product Speed Max 90m/min
Material Compatibility Steel pipe, Stainless pipe
Customization Can be designed according to customer requirements
Product Overview
Model Number: G-400
Place of Origin: Hebei, China
Voltage: 380V 50Hz
Rated Power: 3.0/4.0KW
Dimensions: 3.5m × 0.7m × 1.0m
Weight: 850KG
Certification: ISO9001:2008
Warranty: 2 Years
After-sales Service: Engineers available for overseas machinery service

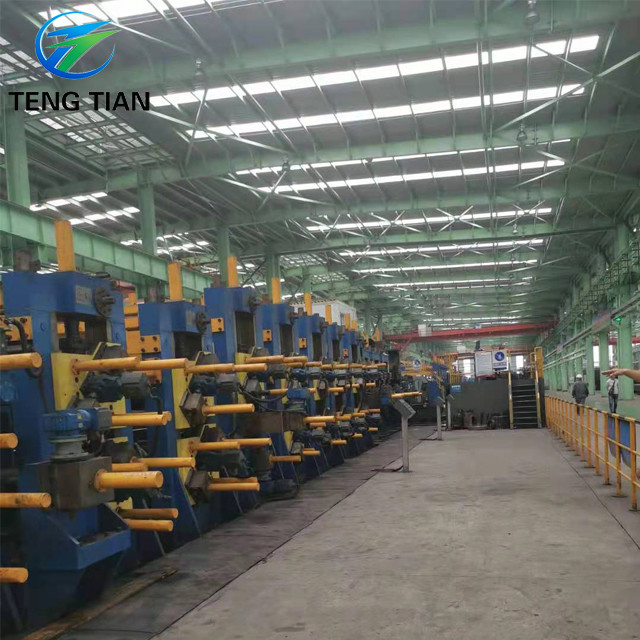

CNC Hydraulic Steel Pipe Mill Machine 10-50mm Diameter 0 CNC Hydraulic Steel Pipe Mill Machine 10-50mm Diameter 1
Key Features
  • Long-term running with high speed and precision
  • Low fault rate and easy maintenance
  • Extended useful lifespan with excellent characteristics
  • Hydraulic drive system for smooth operation
  • Customizable according to specific production needs
Main Parameters
Parameter Value
Cutting Length 0.5-32m (adjustable)
Cutting Precision ±3mm
Max Cutting Frequency 10 cuttings per minute
Max Speed 50m/min
Max Pipe Thickness 6mm
Saw Head Action Hydraulic Drive (Flat-pushing Manipulation)
Pipe Clamp Hydraulic Clamping
Cold Cutting Saw Specifications
Model Diameter Range Thickness Range Max Speed Motor Saw Blade Diameter Clamping Type
CS-32 12~38mm 0.4~2.0mm 120 YASKAWA/SIEMENS 350mm Pneumatic
CS-50 20~63.5mm 0.6~2.0mm 100 YASKAWA/SIEMENS 400mm Pneumatic/Hydraulic
CS-60 25~76mm 0.8~3.0mm 80 YASKAWA/SIEMENS 450mm Pneumatic/Hydraulic
CS-76 25~76mm 0.8~4.0mm 80 YASKAWA/SIEMENS 450mm Hydraulic
CS-114 50~114mm 1.2~5.0mm 60 YASKAWA/SIEMENS 600mm Hydraulic
Note: Specifications are reference values based on general ranges. We design and manufacture each line according to specific customer requirements.
Our Services
  • On-site installation and operator training by our engineers
  • One year quality guarantee with lifetime repair service
  • Pre-sale and after-sale support including workshop design
  • Option for extended engineer support (several months to 1 year)
  • Complete project design for pipe production lines
  • Responsible for loading and shipping arrangements
CNC Hydraulic Steel Pipe Mill Machine 10-50mm Diameter 2
