380V Power Structural Support Tube Milling Machine 300 KW Solid State Welder

380V Power Pipe Mill Machine for structural support 300 KW solid State Welder

380V Power Pipe Mill Machine for structural support 300 KW solid State Welder is the steel pipe macking machine with advanced technical characteristics of the pipe products. The unit uses the world’s advanced W,FFX,FF Forming method, and the choice of the German Roll forming design.

Mills Tour:

Step 1 - Coils

There are carbon steels that are going to be made into pipe and tube for you

Step 2 - uncoiler

The carbon steel coil is placed on the uncoiler

Step 3 - Leveler

The coil stock is leveled

Step 4 - butt welding

Connect the last coil to next coil to uninterrupted forming&sizing

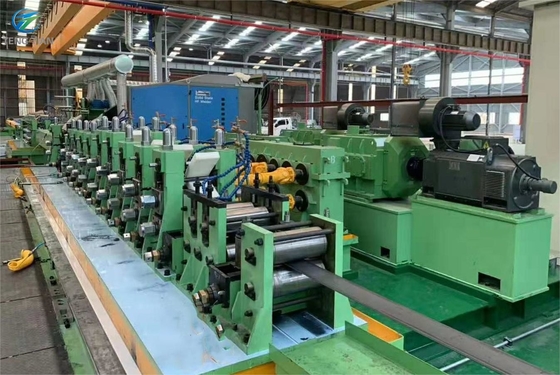

Step 5 - Mill

Then it goes through a series of rolls that form the flat steel into pipe

Step 6 - Mill Rollers

Rolls form this size schedule into shape

Step 7 - Welder

An Electirc Resistance Welder Finishes the pipe or tube

Step 8 - Scarfer

The seam is “scarfed” to make the pipe or tube smooth all the way around.

Step 9 - Saw

the pipe and tube is sawed cut to length

Step 10 - Collecting

Finally, collecting pipes and tubes for packing

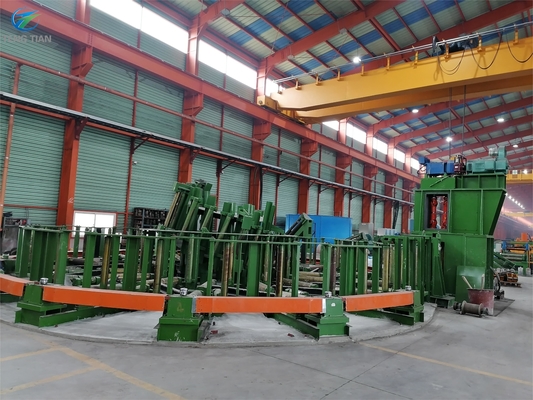

Reference Picture
