Precision 200x200mm Thickness 10mm Tube Mill Machine Direct Forming

Precision 200x200mm Thickness 10mm Tube Mill Machine Direct Forming
Precision 200x200mm Thickness 10mm Tube Mill Machine Direct Forming Precision 200x200mm Thickness 10mm Tube Mill Machine Direct Forming Precision 200x200mm Thickness 10mm Tube Mill Machine Direct Forming Precision 200x200mm Thickness 10mm Tube Mill Machine Direct Forming

Large Image :  Precision 200x200mm Thickness 10mm Tube Mill Machine Direct Forming

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 200x200mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 60 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Model: HG 200x200 Production: Square Pipe
Feature: Erw Name: Tube Mill
Other Pipe: Square Pipe And Rectangular Pipe Max Size: 200x200mm
Thickness: 10mm Length: 6-12m
Rollers: Include
High Light:

200x200mm tube mill machine

,

direct forming tube mill machine

,

precision welded tube mill machine

Precision 200x200mm Thickness 10mm Tube Mill Machine Direct Forming



Product Information

It is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.


Details



(1)Material Specifications:

Standard

carbon steel, hot galvanized steel

Material

Low carbon steel and low alloy constructional steel

Mechanical properties

σb≤520Mpa,σs≤365MPa

Strip Width

110-800mm

Strip Thickness:

5-10mm

Inner Diameter of Coils

Φ508mm

Outer Diameter of Coils

Φ1300~φ2000mm

Coil Weight

≤11T

(2)Pipe Specification

Pipe Diameter

Square pipe :100x100-200x200mm
Thickness:5-10mm

Length

6m

Pipe-cutting Precision

0-6mm

Forming Speed

Max 160m/min for 2mm thickness

(3)The buyer should self-supply

Work shop

95x12m, H>5m(crane to ground)

Power

Approx.850KW 380V/60Hz/3phases

Circulation Cooling Water(whole system)

Flow:30+30 CBM
Pool Volume:40m3

Compressed Air
(whole system)

Flow:5m3/min
Pressure: 5-7kg/ cm2

Cable

All cable outside of my machine, you buy after machine fix location.




Process

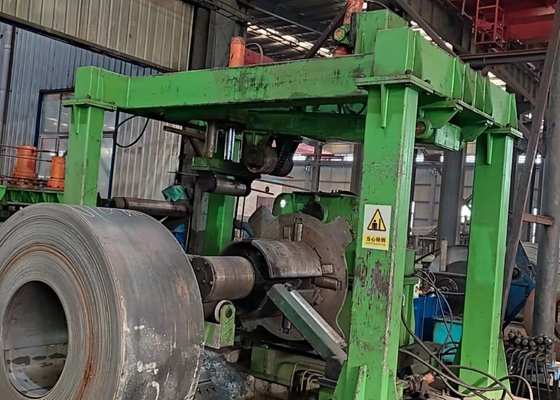

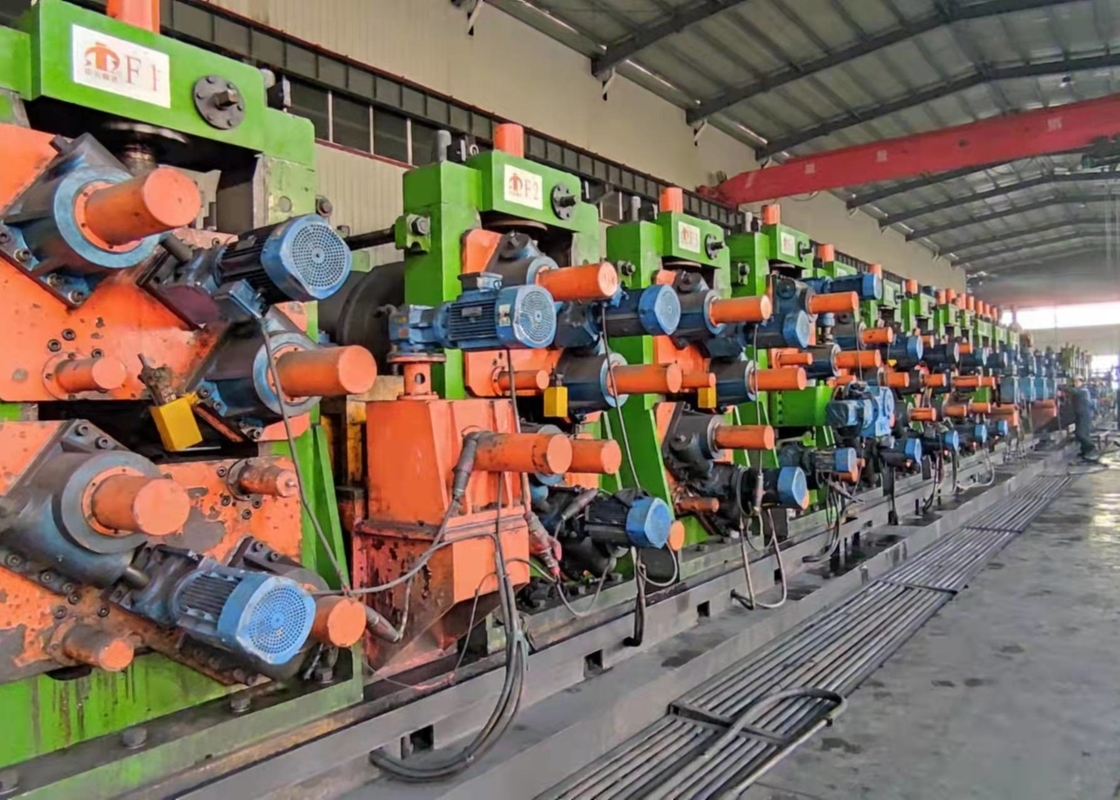

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package



Quality and After-sale Service Warranty


Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

Precision 200x200mm Thickness 10mm Tube Mill Machine Direct Forming 0

Our Service
1) Packing: Sea worthy packing, the mechanical parts are in nude pack, and the electrical arts and the spare parts are simply packed.
2) Quality Assurance: the Seller manufactures the equipment according to the relevant standards strictly and tests the equipment according to the technical documents.
3) Installation: three engineers will be dispatched to Buyer factory for installation and test running. The buyer should charge of return ticket, food and accommodation abroad and pay USD60/person/day for salary.
4) Warranty: we guarantee one year’s warranty after test running. (The matters caused by Buyer’s fault and the lack of Buyer’s maintenance shall not be covered). And we offer lifelong technical service and fast-response technical support to Buyer.
