| Production Name: | Tube Mill Machine | Forming Method: | FFX Forming Technology |
|---|---|---|---|
| Running Speed: | Max. 120 M / Min | Pipe Shape: | Round |
| Pipe Diameter: | 16 - 63 Mm | Max.Thickness For Round Pipe: | 0 . 5 - 2 . 0 Mm |
| Welding Type: | High Frequency Welding | Cutting Saw: | Friction Saw Cutting |
| Key Words: | Round Shape Tube Mill Machine | ||
| High Light: | erw fast tube mill machine,60mm tube mill machine,60mm pipe rolling mill |
||
HG60 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
Round pipe size: 16 -- 63 mm
Pipe thickness: 0 . 5 - 2 . 0 mm
1. Raw Material
| Material | Q235. |
| Speed | Max. 120m/min |
| Cutting Length | 4 - 6m |
| Precision | ± 3 mm |
| Drive motor | 11kw servo motor ,YASKAWA,JAPAN |
| Cutting motor | 7. 5KW variable frequency motor |
| Feeding motor | 2 . 9kw servo motor |
2. Production Range:
| Round Pipe | 16 - 63 mm | Thickness: 0 . 5 - 2 . 0 mm |
3. Line Spees: Max.120 m / min
4. Tube Length: 4 - 6 m
5. Cutting Accuracy: ± 2 mm
6. Size of whole line: about 70 X 6 m
Line composition :
Double cone uncoiler
Automatic Shear and welder
Spiral horizontal accumulator

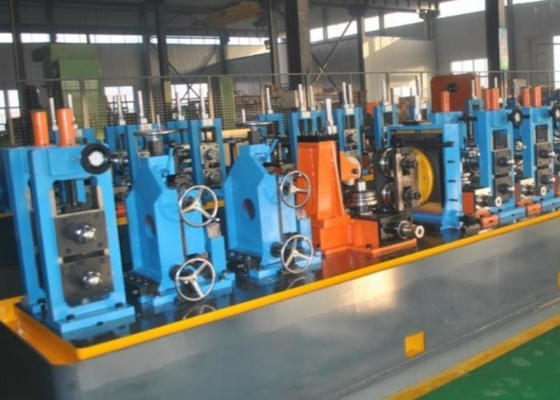

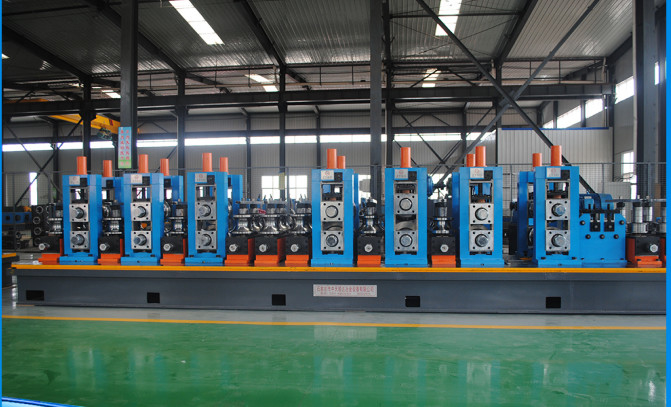

Forming and Sizing Mill
(forming stand+Weld seam guide stand + the squeeze roll stand+welding bead cutter+Water cooling unit+sizing stand+gear box)
Cold saw
Run out table
As an CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China. Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other over 30 countries.
If you have any interested here, please don't hesitate, we are here happy to assist you.
Production Process
