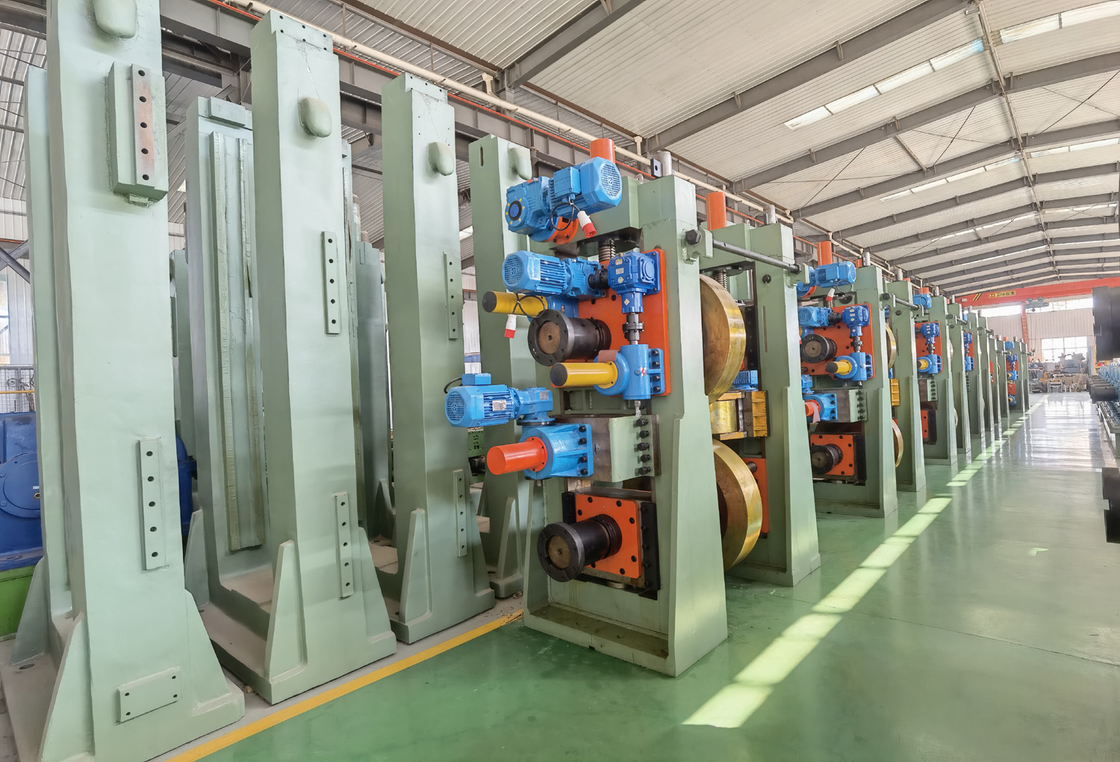

Square 300x300mm Carbon Steel Pipe Mill Full Automatic

Large Image : Square 300x300mm Carbon Steel Pipe Mill Full Automatic

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG300x300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	90 wording days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5 set/month

Contact Now

Detailed Product Description

Product Name:	Square 300x300mm Carbon Steel Pipe Mill Full Automatic	Feature:	Full Automatic
Material:	Carbon Steel And Galvanized Steel	Other Pipe:	Only Square Pipe
Max Size:	300x300mm	Thickness:	12mm
Length:	6-12m	Rollers:	Include
Model:	300x300	Key Words:	Carbon Steel Pipe Mill
Highlight:	300x300mm carbon steel pipe mill , carbon steel pipe mill full automatic , 300x300mm erw tube mill

Carbon Steel Square Pipe 300x300mm ERW Pipe Mill

ERW Pipe Mill General Introduction
it is designed to produce welded steel pipes ,include squre pipe and deformed pipe. whole line use one set roller, adjust the size by automatic PLC control.

Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

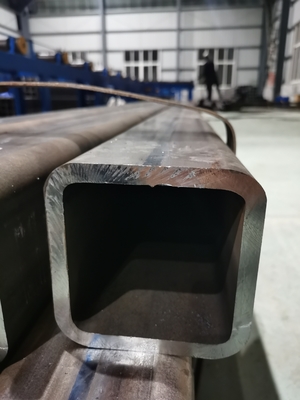

Square pipe :100x100 150x150 200x200 300x300mm

Rec Pipe:120x80 140x60 200x100 250x150 400x200mm

Thickness:10-12mm

Main Parameters and Specifications for ERW Pipe mill

(1)Material Specifications:
Standard	Internatioanl standard tube mill machine
Material	galvanized steel
Mechanical properties	σb≤520Mpa,σs≤365MPa
Strip Width	400-1200mm
Strip Thickness:	10-12mm
Inner Diameter of Coils	Φ508mm
Outer Diameter of Coils	Φ1300～φ2000mm
Coil Weight	≤20T
(2)Pipe Specification
Pipe Diameter	Square pipe:100x100-200x200mm Thickness:10-12mm
Length	6-12m
Pipe-cutting Precision	0-6mm
Forming Speed	max 50m/min for 1 mm thickness
(3)The buyer should self-supply
Work shop	60x12m, H＞5m(crane to ground)
Power	Approx.3500KW 380V/60Hz/3phases
Circulation Cooling Water(whole system)	Flow:30+30 CBM Pool Volume:40m3
Compressed Air (whole system)	Flow:5m3/min Pressure: 5-7kg/ cm2
Cable	All cable outside of my machine, you buy after machine fix location.

Working Process for ERW pipe mill

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
