High Frequency Welded Square Erw Pipe Mill 400x400mm

Name: High Frequency Welded Square Erw Pipe Mill 400x400mm
Brand: TENGTIAN
SKU: HG400x400
Rating: 4.6 (123 reviews)

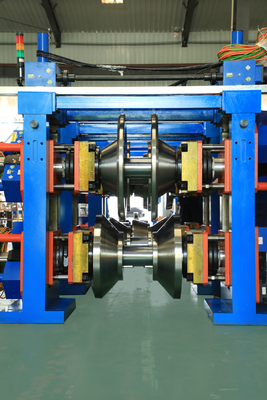

Large Image : High Frequency Welded Square Erw Pipe Mill 400x400mm

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG400x400

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	standard export package
Delivery Time:	90 wording days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5 set/month

Contact Now

Detailed Product Description

Machine Name:	ERW Pipe Mill	Product:	Hifrequency Welded Square Pipe
Feature:	Full Automatic	Material:	Carbon Steel And Galvanized Steel
Other Pipe:	Only Square Pipe	Max Size:	400x400mm
Thickness:	12mm	Length:	6-12m
Rollers:	Include	Model:	400x400
Key Words:	ERW Pipe Mill
High Light:	high frequency welded erw pipe mill , 400x400mm erw pipe mill , 400x400mm erw tube mill

Hifrequency Welded Square Pipe 400x400mm ERW Pipe Mill

ERW Pipe Mill General Introduction
it is designed to produce welded steel pipes ,include squre pipe and deformed pipe. whole line use one set roller, adjust the size by automatic PLC control.

Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Square pipe : 200x200 300x300 400x400mm

Rec Pipe: 200x100 250x150 400x200 500x300mm

Thickness:10-12mm

Main Parameters and Specifications for ERW Pipe mill

(1)Material Specifications:
Standard	Internatioanl standard tube mill machine
Material	galvanized steel
Mechanical properties	σb≤520Mpa,σs≤365MPa
Strip Width	400-1600mm
Strip Thickness:	10-12mm
Inner Diameter of Coils	Φ508mm
Outer Diameter of Coils	Φ1300～φ2000mm
Coil Weight	≤20T
(2)Pipe Specification
Pipe Diameter	Square pipe:200x200-400x400mm Thickness:10-12mm
Length	6-12m
Pipe-cutting Precision	0-6mm
Forming Speed	max 50m/min for 1 mm thickness
(3)The buyer should self-supply
Work shop	60x12m, H＞5m(crane to ground)
Power	Approx.3500KW 380V/60Hz/3phases
Circulation Cooling Water(whole system)	Flow:30+30 CBM Pool Volume:40m3
Compressed Air (whole system)	Flow:5m3/min Pressure: 5-7kg/ cm2
Cable	All cable outside of my machine, you buy after machine fix location.

Working Process for ERW pipe mill

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
