| Production Name: | Carbon Steel Round PipeTube Mill Machine With CE ISO 9001 Certification | Material: | HRC,CRC,Galvanised Steel |
|---|---|---|---|
| Pipe Size: | 60-140mm | Pipe Thickness: | 2.0-6.0mm |
| Welding Type: | High Frequency Welding | Pipe Shape: | Round,square,rectangular |
| Roller Materoal: | Cr12/SKD11 | Key Words: | Tube Mill Machine |
| High Light: | ISO9001 Round Tube Mill,140mm Round Tube Mill,140mm Tube Mill Machine |
||

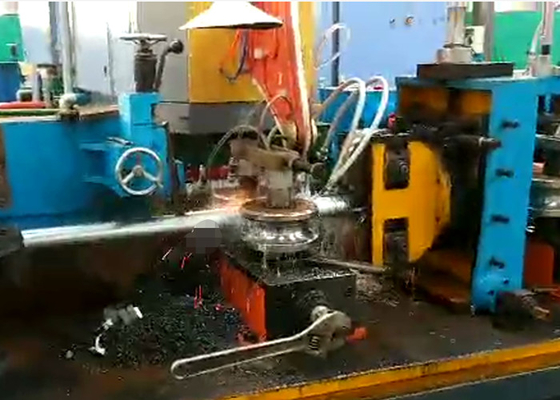

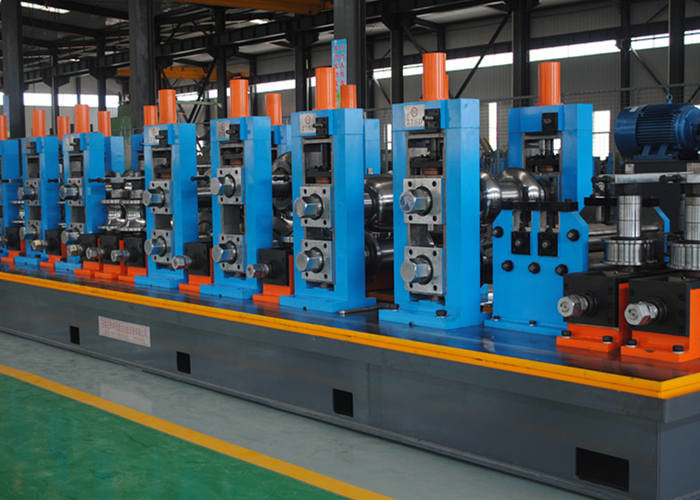

Carbon Steel Round PipeTube Mill Machine With CE ISO 9001 Certification is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.
square tube size:60-140mm, tube thickness: 2.0-6.0mm
| Conforming to the YB189-64 standard | |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤380Mpa,σs≤275MPa |
| strip width | 180～420mm |
| strip thickness | 2.0～6.0mm |
| I.D of Coils | Φ508mm |
| O.D of Coils | φ2000mm |
| Coil Weight | ≤5T |
| round tube size | 60-140mm |
| pipe thickness | 2.0-6.0mm |
| Finish pipe length | 4-8m |
| Cut length accuracy | ±2mm |
| Forming speed | 20-80m/min |
| 8m wide, 120m long, at least 6m high from Ceiling Rails to Ground. |
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
