High Yield Cold Saw Cutting GI Round Galvanized Pipe Making Machine

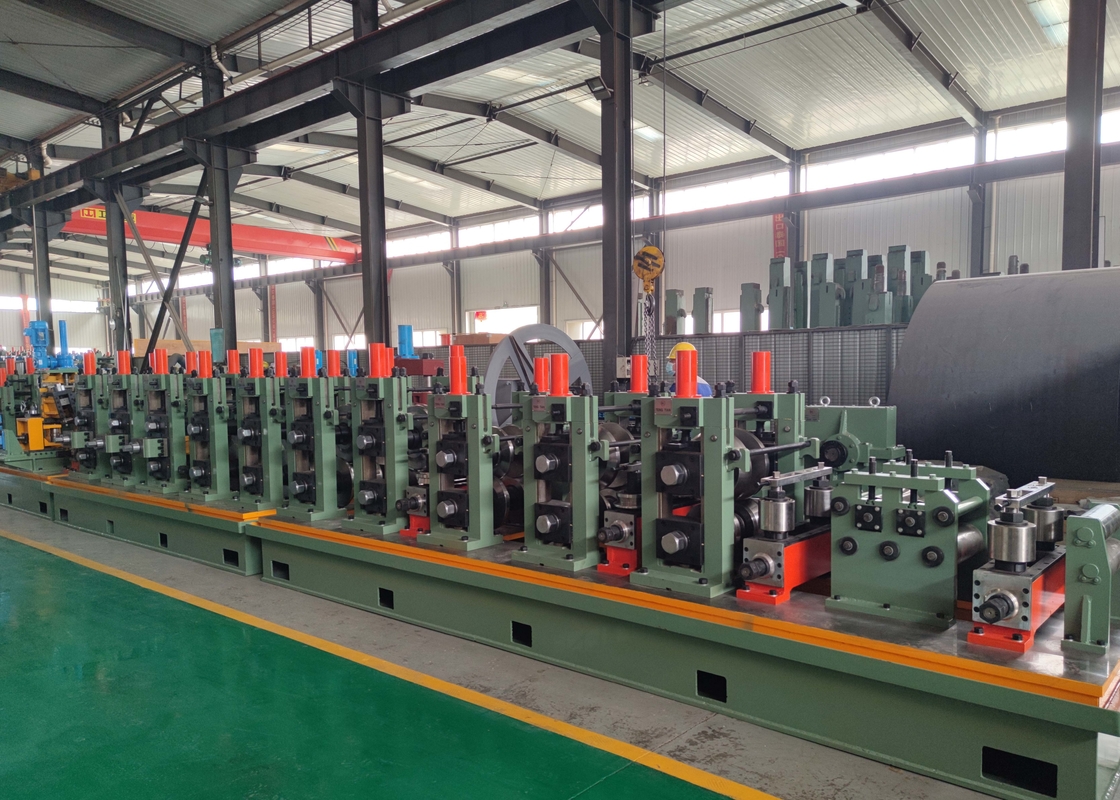

Large Image : High Yield Cold Saw Cutting GI Round Galvanized Pipe Making Machine

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HG219

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Export waterproof and Seaworthy packing.
Delivery Time:	120 work days
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets/Year

Contact Now

Detailed Product Description

Name:	High Yield Cold Saw Cutting GI Steel Tube Making Machine For Round Pipe Machine	Applicable Materials:	Carbon Steel
Cutting Method:	Cold Saw	Equipment Specification:	Customer Specified
Forming Method:	Roller Forming	Speed:	20-45 M/min
Warranty:	One Year	Material:	GI Carbon Steel
Forming Type:	Direct Forming	Work Shop:	150 X 16 M, H＞5m ( Crane To Ground )
Highlight:	High Yield galvanized pipe making machine , Cold Saw galvanized pipe making machine , Round galvanized steel pipe making machine

High Yield Cold Saw Cutting GI Steel Tube Making Machine for Round Pipe Machine

I. Introduction

For the situation that all countries are doing infrastructure construction, Steel Tube Making Machine have many uses. The finished product is used in various fields such as building materials, decoration, new energy, etc., and is one of the necessary GI Steel Tube Making Machine for Round Pipe Machine for steel products. Low investment and high return, suitable for companies new to the steel industry

II. Common product specifications

No.	Model	Pipe Size	Thickness	Speed(m/min)	Capacity(KW)	HF(KW)	Area(LxW in Metres)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24

III.Equipment composition

Uncoiler :The Single Cone winding is of the structure of double expansion and cantilever mandrels. It contains two main parts: main body and the fixed base. The main body is equipped with pneumatic system to satisfy the needs of expanding, contracting and braking of the mandrels.

Straightener & leveler :The Straightener is main used to lead the new coil steel head feed into the leveler after uncoiler unit bring the coil into the working place. The Leveler is main used to flatten the head and trail of the strip steel and prepare for the next step shear and welding, so as to ensure the strip steel opposed flate and straight in the shear welding.

Automatic shear and welding : Used to cut off the irregular part of the tape head and tail, and align the tape tail of the previous coil with the tape head of the next coil, and weld them together.

Feeder and punching machine : The feeder sends the steel strip to the punching machine position, the punching machine punches the steel strip, and then sends it to the forming part .Each size is equipped with a set of punching molds, the punching machine can automatically change the molds.

Forming and sizing part : this part roller forming the steel strip into round square pipe. The size can be adjusted by the servo motor.

Cutting machine : It is used for material cutting of continuous non-stop pipe and tube production. The cutting method is cold saw. The high-power servo is equipped with a high-precision reducer and imported rack and pinion transmission. The accuracy of cutting (hole distance) is ±1mm. Install imported high-precision linear guide rail and protective cover

IV. Equipment composition

No.	Name
1	uncoiler
2	Straightener & leveler
3	Automatic shear and welding
4	Accumulator
5	roller forming and sizing part
6	cold saw
7	runout table
8	Automatic packing and palletizing

IV. Factory appearance
High Yield Cold Saw Cutting GI Round Galvanized Pipe Making Machine 0
