Attribute | Value |
---|---|

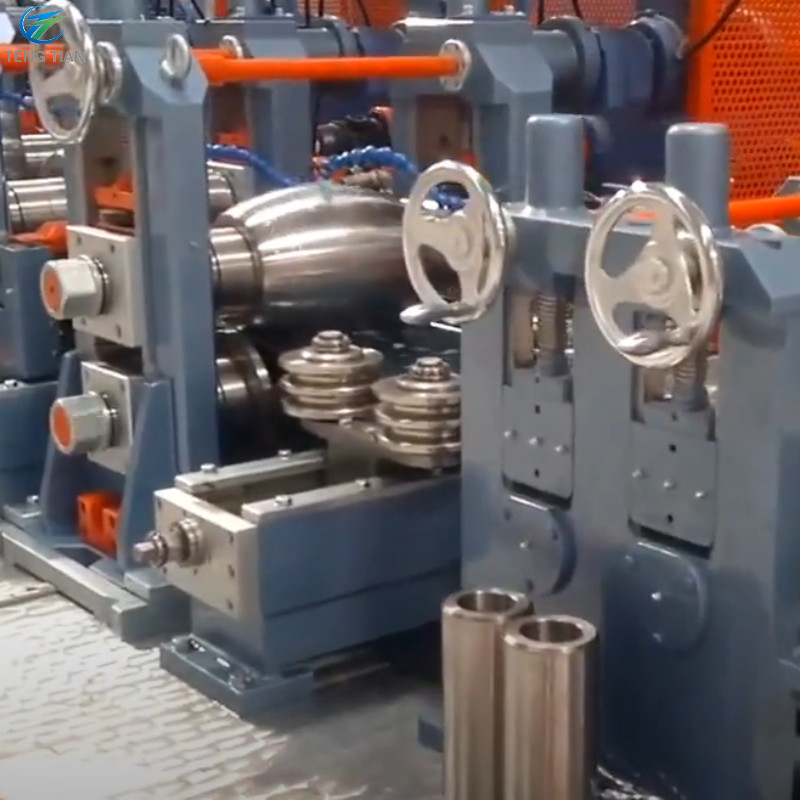

Product Name | Steel Profiles Pipe Mill Machine Automatic Packing 300 KW welder |
Saw Blade | HSS / TCT Saw Blades |
Model | CS-76 |
Certification | CE / ISO9001 |
Tube mills produce pipe and tube by taking a continuous strip of material and continuously roll forming until the edges of the strip meet together at a weld station. At this point the welding process melts and fuses the edges of the tube together and the material exits the weld station as welded tube.
Basic components include an uncoiler, straightener, shear, forming section, fin pass section, welder, ID and/or OD scarfing, sizing section, cut off and stacker or runout table.
Each pass in the various sections are made up of an upper and lower shaft that contains roller die tooling which forms the steel strip gradually into a round shape or square if it is a form square / weld square type of mill. This gradual shaping process is commonly referred to as the flower arrangement.
We provide turn-key solutions for all your new, remanufactured and used tube mill needs.
No. | Model | Pipe Size | Thickness | Speed (m/min) | Capacity (KW) | HF (KW) | Area (LxW) |
---|---|---|---|---|---|---|---|
1 | HG20 | ø8 - ø20 mm | 0.3 - 1.5 mm | 30 - 150 | 210 | 100 | 40*12 |
2 | HG32 | ø10 - ø32 mm | 0.4 - 2.0 mm | 30 - 150 | 300 | 150 | 40*12 |
3 | HG50 | ø16 - ø50 mm | 0.7 -2.5 mm | 30 - 150 | 410 | 200 | 60*12 |
4 | HG60 | ø22 - ø60 mm | 0.9 - 3.0 mm | 30 - 150 | 410 | 200 | 60*12 |
5 | HG76 | Ø25 - ø76 mm | 1 - 4 mm | 30 - 120 | 580 | 300 | 80*16 |
6 | HG89 | Ø32 - ø89 mm | 1 - 4.5 mm | 30 - 100 | 660 | 300 | 100*16 |
7 | HG114 | Ø45 - ø114 mm | 1.5 -5 mm | 30 - 80 | 920 | 400 | 100*16 |
8 | HG140 | Ø50 - ø140 mm | 1.5 - 5.5 mm | 30 - 80 | 920 | 400 | 100*16 |
9 | HG165 | Ø60 - ø165 mm | 2 - 6 mm | 30 - 60 | 1100 | 500 | 100*16 |
10 | HG219 | Ø114 - ø219mm | 3 - 8 mm | 20 - 45 | 1400 | 600 | 150*16 |
11 | HG273 | Ø114 - ø273mm | 4 - 12 mm | 15 - 30 | 2100 | 800 | 160*18 |
12 | HG325 | Ø165 - ø325 mm | 4 - 14 mm | 10 - 30 | 2500 | 1000 | 200*24 |
13 | HG426 | Ø165 - ø426 mm | 4 - 16 mm | 8 - 25 | 2900 | 1200 | 250*24 |
14 | HG508 | Ø219 - ø508 mm | 5 - 18 mm | 5 - 18 | 3400 | 1600 | 300*24 |
15 | HG610 | Ø355 - ø610 mm | 5 - 18 mm | 5 - 18 | 3700 | 1600 | 300*24 |
16 | HG760 | Ø426 - ø760 mm | 5 - 20 mm | 5 - 20 | 4300 | 1800 | 300*24 |
