Automatic Cold Cut Pipe Mill Machine 300KW HF Welder 25-76mm

Name: Automatic Cold Cut Pipe Mill Machine 300KW HF Welder 25-76mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LJ50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	LJ50

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

LJ50

Product Name:

Automatic Cold Cut Pipe Mill Machine 300KW HF Welder For Round Pipe

Thickness:

1-4mm

Diameter:

25-76mm

Warranty:

1 Year

HF:

300KW

Speed:

80-100 M/min

After-sales Service Provided:

On-site Engineer

Keyword:

Automatic Cold Cut Pipe Mill Machine

Highlight:

High Light

Highlight:

tube milling machine

steel pipe making machine

steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Automatic Cold Cut Pipe Mill Machine 300KW HF Welder for Round Pipe

Product Specifications

Attribute	Value
Product Name	Automatic Cold Cut Pipe Mill Machine 300KW HF welder for Round Pipe
Thickness	1-4mm
Diameter	25-76mm
Warranty	1 Year
HF	300KW
Speed	80-100 M/min
After-sales Service	On-site engineer

Product Overview

HeBei TengTian is a recognized pioneer in welded seam tube mill manufacturing, offering both standard and specialized equipment for a wide range of metal tube and pipe production. Our mills support various welding methods including high-frequency induction, contact welders, and ERW (Electric Resistance Welding).

Key Features

Advanced W, FFX, FF forming method with German roll forming design
High precision pipe production with stable performance
Full automation with simple operation
Continuous production with high efficiency
Reduced material waste and low production costs
High yield output

Production Process

Coils: Carbon steel coils prepared for pipe production
Uncoiler: Steel coil placed on the uncoiler
Leveler: Coil stock is leveled
Butt Welding: Connects coils for continuous forming
Mill: Rolls form flat steel into pipe shape
Welder: Electric Resistance Welder finishes the pipe
Scarfer: Smooths the pipe seam
Saw: Cuts pipe to length
Collecting: Pipes gathered for packing

Available Models

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24

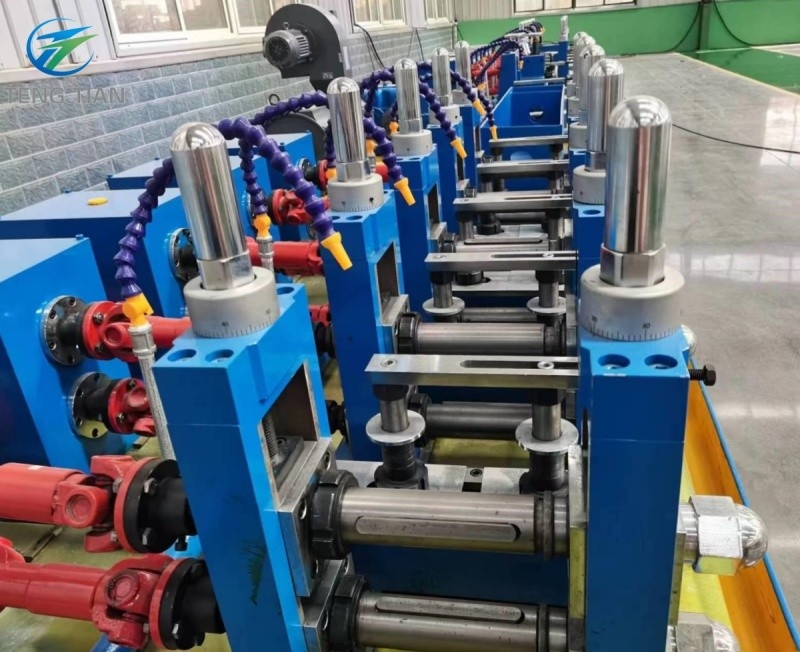

Reference Image
