Product Details:
Payment & Shipping Terms:
|
| Type Of Welding: | Type Of Welding | Product Speed: | Max 80m/min |
|---|---|---|---|
| Special Require: | Can Design According To The Customer | Production Capacity: | 1-10m/min |
| Voltage: | 220/380/415/420/440V | Weight: | >2T |
| High Light: | square pipe making machine,tube mill line |
||

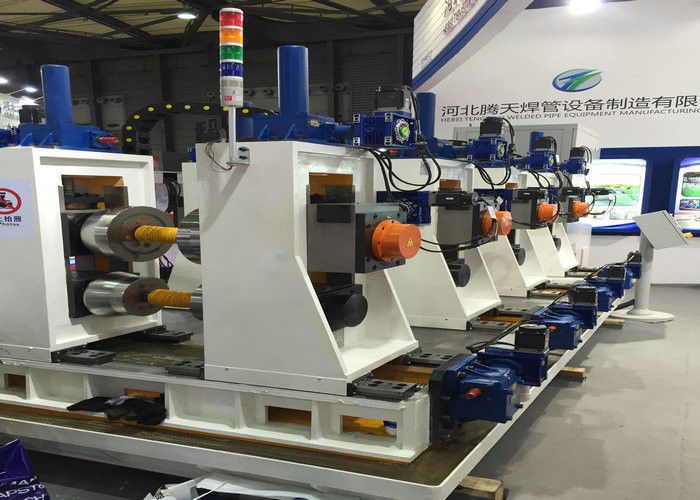

welded pipe making machine consists of the following parts:
1.Forming parts: Consist of seven frame of horizontal roll rack, four frame of empty curving rack, four frame of vertical roll rack and one frame of feeding rack
2.Welding parts: consists of welding five roller of extruding roll, two frame of scraping scar rack and one frame of polish rack
3.Sharping parts: consists of four frame of four roller rack
4.Electric control part: controlled by multipoint PLC control
Product Process:
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→
HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
The Basic Parameters:
| stands of forming mill | 7 |
| stands of sizing mill | 5 |
| square pipe size | 30×30-50×50mm |
| square pipe thickness | 1.0-3.0mm |
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| LW200 | 30*30-50*50MM | 1-3MM | 20-80 |
| LW600 | 60*60-150*150MM | 2-7MM | 20-60 |
| LW800 | 80*80-200*200MM | 1-3MM(or 4-13) | 20-40 |
| LW1000 | 100*100-250*250MM | 3-12.7MM(or4-14) | 15-30 |
| LW1200 | 120*120-300*300MM | 3-14MM | 10-25 |
| LW1400 | 150*150-350*350MM | 4-14MM | 8-20 |
| LW1600 | 200*200-400*400MM | 4-16MM | 8-20 |
This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
