|Adjustment Ty:||By Turbine Worm||Worm Gearing:||Max.80m/min|
|Cutting Saw:||Friction Saw Cutting||Pipe Diameter:||21 - 63mm|
|Max.Thickness For Square Pipe:||0.8-3.0mm|
erw tube mill,
stainless tube mills

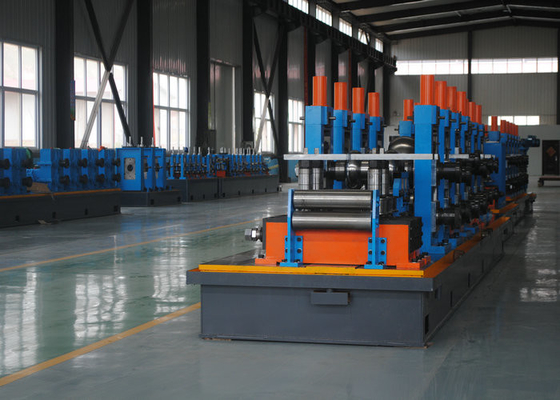

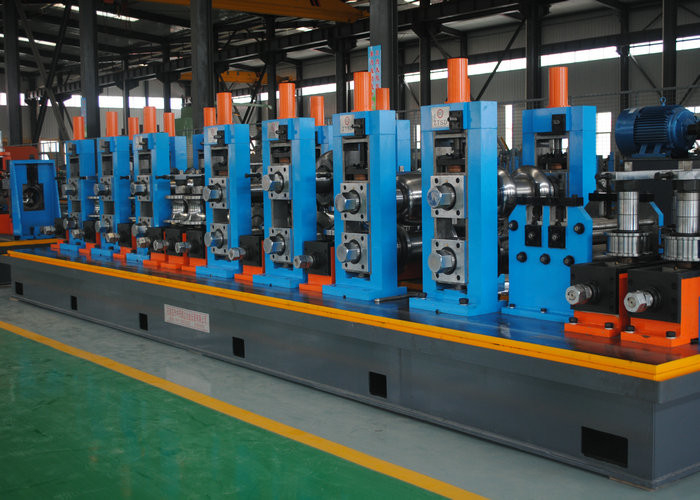

High Frequency Welding Machine Erw Pipe Making Machine/Pipe Mill
This equipment is specially used for producingΦ20-Φ80mm, δ1-4.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.
A. Applicable material
1 Raw material: Low-carbon steel,
High-frequency welded pipe machine is a straight seam welded pipe machine, and other pipe machine is different from the place of its welding. High-frequency welded pipe machine is the use of high-frequency resistance vortex is the pipe hot melt and condensation to produce pipe. High-frequency welded pipe machine because of the welding speed, more and more people of all ages, such as oil pipe, natural gas and other large pipe are made using high-frequency welded pipe machine.
1.1 erw welding tube mill/pipe making machine:
This equipment is specially used for producingΦ25-Φ76mm, δ1.5-2.5mm stainless steel straight seam welded pipe. It made by refined materials in high precision and equipped with fixed length cutting saw. The main machine includes forming, welding, sizing and straightening device. The composition of equipment is from uncoiler to fixed length-cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.
1.2 Applicable material:
(1)Material: SUS302 stainless steel strip.
(2)The thickness of steel strip: 1.5-2.5mm (As per GB708-88)
(3)The width of steel strip: 80-240mm (±0.2mm)
(4)I.D. of steel coil: Φ450-Φ550mm
(5)O.D. of steel coil: Φ800-Φ1500mm
(6)Maximum weight coil: 2500kgs
1.3 Dimension range of processing steel pipe:
(1) O.D.: Φ25-Φ76mm
(2) Wall thickness: 1.5-2.5mm (Square and rectangle pipe≤2.0mm)
(3) Length: 4-8m
1.4 Product (steel pipe) process flow for BG76 stainless steel erw welding tube mill/pipe making machine:
Raw material (steel coil)---uncoiling---shearing and end welding--non-power leveling---mill-forming---TIG welding---Polishing burrs outside of weld seam---cooling---sizing---roughly straightening---fixed length cutting--- finished pipe---run-out table mill | pipe making machine | pipe mill production line | pipe mill line | carbon steel pipe mill | steel pipe mill | pipe tube mill | new pipe tube mill | welded pipe mill | welded pipe mi
Descripion of welded pipe making machine
Welded pipe making machine is used to level the fixed strip after slitting line and entry it to forming machine, bend toopenippe by roller, melt the strip edges throuh te High frequency current, squeeze and weld the pipe to be closedby squeeze roll, the high frenency. ERW Pipe making machine is also called ERW pipe mill. Wanxin's full-automatic welded pipe making machine ranks to topest in this industry.
Technic process of welded pipe making machine
ERW Tube Mill Other Model
|Model||Diameter Range||Pipe Thickness||Line Speed(m/min)|
