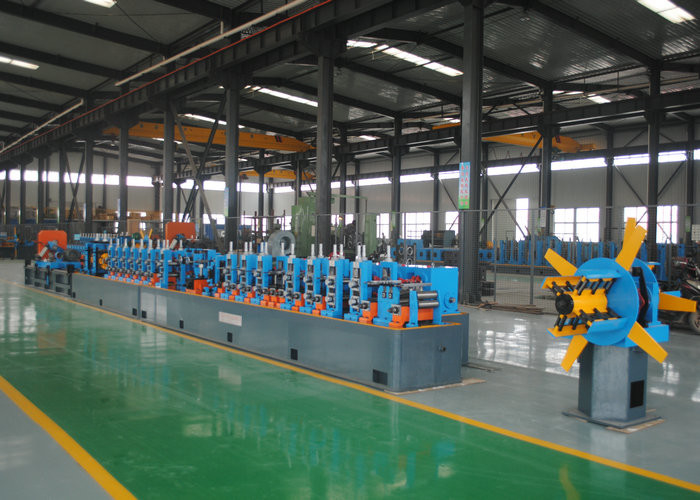

Steel ERW Welding Pipe Mill 8-20mm Diameter 0.3-1mm Thickness

Name: Steel ERW Welding Pipe Mill 8-20mm Diameter 0.3-1mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG20
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001/BV/CE
Model Number:	HG20

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001/BV/CE

Model Number:

HG20

Product Name:

Steel ERW Welding Pipe Mill And Straight Seam Welded Pipe Production Line

MOLD:

8SET

Warranty:

1 Year

Pipe Diameter:

8-20mm

Thickness:

0.3-1mm

Speed:

30-120m/min

Raw Material:

Carbon Steel

Keywords:

Steel ERW Welding Pipe Mill

Highlight:

High Light

Highlight:

stainless tube mills

slitting line machine

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

Three months

Payment Terms:

L/C,T/T,Western Union,

Supply Ability:

150sets one year

Product Description

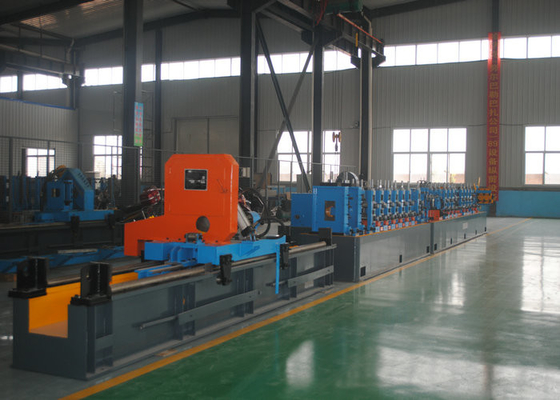

Steel ERW Welding Pipe Mill and Straight Seam Welded Pipe Production Line

Product Specifications

Attribute	Value
Product Name	Steel ERW Welding Pipe Mill and Straight Seam Welded Pipe Production Line
Mold	8SET
Warranty	1 Year
Pipe Diameter	8-20mm
Thickness	0.3-1mm
Speed	30-120m/min
Raw Material	Carbon Steel

Product Description

The HG20 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 10~32mm in diameter with wall thickness of 0.5~1.5mm, as well as square, rectangular, and deformed pipes of corresponding sizes. This production line incorporates innovative design and advanced technology for convenient operation and maintenance, achieving international leading standards.

Key Features

Material Compatibility: Processes hot rolled or cold rolled steel strip (low carbon steel and low alloy constructional steel with δs≤345Mpa, δb≤610Mpa)
Processing Range: Round pipes Φ10-Φ32mm; Square/Rectangular pipes 10x10-25x25mm
Thickness Capacity: Round pipes 0.5-1.5mm; Square/Rectangular pipes 0.5-1.0mm
Installed Capacity: 200KVA
Water Consumption: 20m³/h
Welding Technology: Solid-state high-frequency welder (1KW)
Workshop Requirements: 30-50m (L) × 12m (W) × 5m (H)
Forming Speed: 30-120m/min

Technical Specifications

Model	Diameter (mm)	Thickness (mm)	Speed (m/min)	Main Power (kw)	HF Welder (KW)	Area (m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100
