Safety Operation Steel Pipe Manufacturing Machine 0.4-43.0mm Thickness

Name: Safety Operation Steel Pipe Manufacturing Machine 0.4-43.0mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: F400
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001
Model Number:	F400

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001

Model Number:

F400

Product Name:

Safety Operation Steel Pipe Manufacturing Machine For Square Steel Pipe

Thickness Range:

0.4-43.0mm

After Sales Service:

Engineers Available To Service Overseas

Cutting Speed:

0-80m/min

Materiial:

HRC; CRC; GI; COLOR STEEL

Keyword:

Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

Safety metal pipe making machine

Square steel pipe making machine

Square steel tube forming machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

90 working days

Payment Terms:

T/T,L/C

Supply Ability:

20 Sets / Year

Product Description

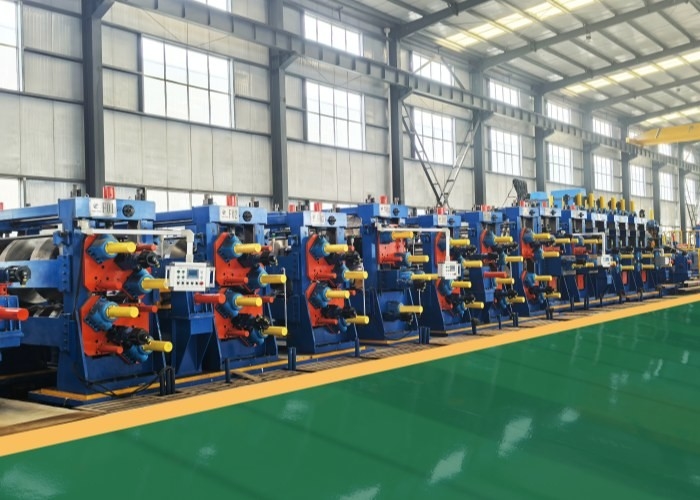

Safety Operation Steel Pipe Manufacturing Machine for Square Steel Pipe

Product Specifications

Attribute	Value
Product Name	Safety Operation Steel Pipe Manufacturing Machine for Square Steel Pipe
Thickness Range	0.4-43.0mm
After sales service	Engineers available to service overseas
Cutting Speed	0-80m/min
Material	HRC; CRC; GI; COLOR STEEL

Product Overview

Through the world-famous brand, HeBei TengTian has long been recognized as one of the earlier pioneers in the welded seam tube mill business in China. The TengTian brand offers multiple standard tube mills for common product sizes.

In addition to standard machines, we also offer specialized equipment covering a wide diameter range of metal tubes and pipes — from 3/16″ (4.76mm) O.D. cold stretch reducing mills to 28″ OD cage mills. As required by the application for welding the tube or pipe, HeBei TengTian can also provide mills with high-frequency induction or contact welders, DC and AC Square Wave Welding (ERW).

Key Features

High precision pipe making
Stable performance with high yield
Full automation with simple operation
Continuous production capability
High efficiency with minimal material waste
Low production cost
Advanced W, FFX, FF forming method
German Roll forming design

Manufacturing Process

Coils: Carbon steels prepared for pipe and tube production
Uncoiler: Carbon steel coil placed on the uncoiler
Leveler: Coil stock is leveled
Butt welding: Connects coils for uninterrupted forming & sizing
Mill: Flat steel formed into pipe through series of rolls
Mill Rollers: Rolls form size schedule into shape
Welder: Electric Resistance Welder finishes the pipe or tube
Scarfer: Seam is scarfed for smooth surface
Saw: Pipe and tube cut to length
Collecting: Final collection of pipes and tubes for packing

Available Machine Models

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24
