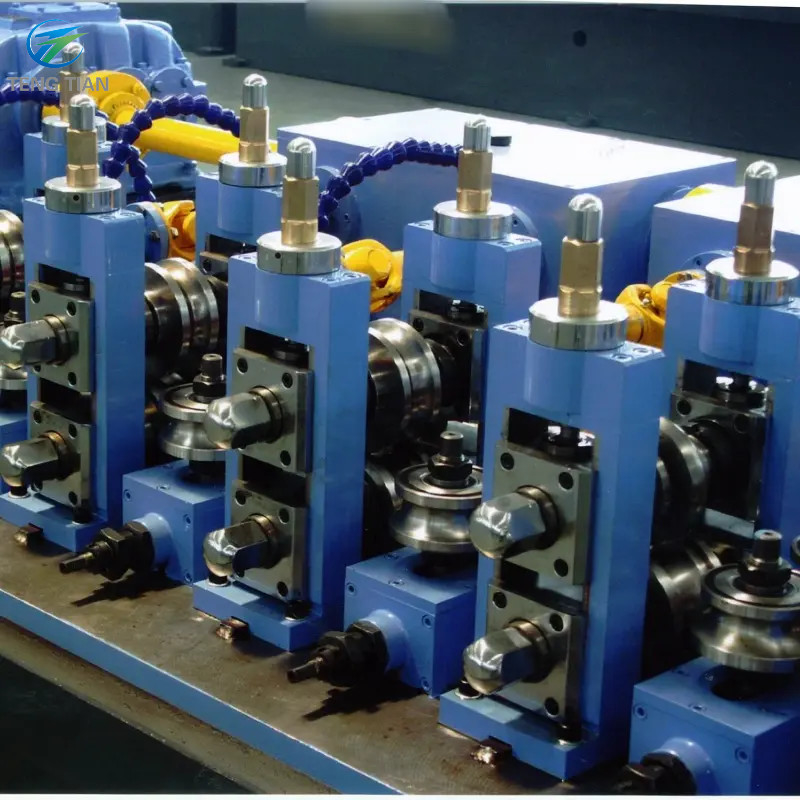

Horizontal Accumulator Steel Pipe Machine 76-140mm 90m/min

Name: Horizontal Accumulator Steel Pipe Machine 76-140mm 90m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HT140
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO
Model Number:	HT140

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO

Model Number:

HT140

Product Name:

Horizontal Accumulator Steel Pipe Manufacturing Machine For Square Pipe

Product Speed:

Max 90m/min

Pipe Diameter:

76-140mm

Pipe Thickness:

2.0-4.5mm

Type Of Welding:

High Frequency Welding

Keyword:

Horizontal Accumulator Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

Horizontal Accumulator Steel Pipe Manufacturing Machine

Square Steel Pipe Manufacturing Machine

Horizontal Accumulator Steel Pipe Making Machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

two month

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

Horizontal Accumulator Steel Pipe Manufacturing Machine for Square Pipe

Attribute	Value
Product Name	Horizontal Accumulator Steel Pipe Manufacturing Machine for Square Pipe
Product Speed	Max 90m/min
Pipe Diameter	76-140mm
Pipe Thickness	2.0-4.5mm
Type of Welding	High Frequency Welding

Product Overview

HeBei TengTian is a recognized pioneer in welded seam tube mill manufacturing, offering both standard and specialized equipment for a wide range of metal tube and pipe production needs.

Key Features

High precision pipe making with advanced W, FFX, FF forming methods
German roll forming design for superior quality
Stable performance with high yield production
Fully automated operation with simple controls
Continuous production capability
High efficiency with minimal material waste
Low production cost operation

Manufacturing Process

Step 1:

Carbon steel coils prepared for pipe production

Step 2:

Coil placed on uncoiler

Step 3:

Coil stock leveled

Step 4:

Butt welding connects coils for continuous forming

Step 5:

Roll forming process shapes flat steel into pipe

Step 6:

Mill rollers form pipe to precise dimensions

Step 7:

Electric resistance welder completes the pipe

Step 8:

Seam scarfing for smooth finish

Step 9:

Precision saw cutting to length

Step 10:

Finished pipes collected for packaging

Machine Specifications

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW in M)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24
