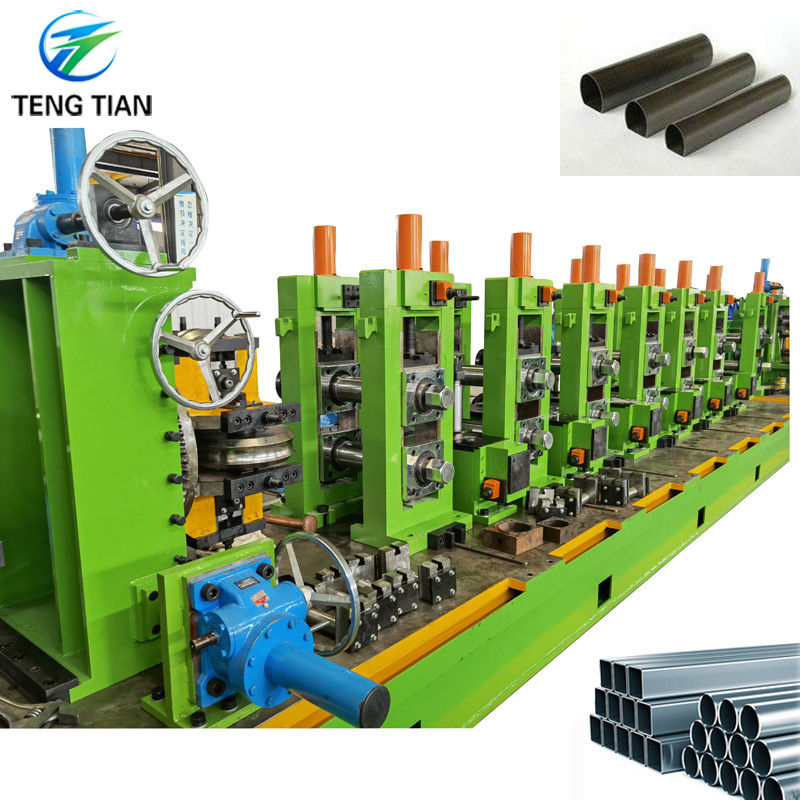

Automatic Carbon Steel Pipe Manufacturing Machine with PLC Control

Name: Automatic Carbon Steel Pipe Manufacturing Machine with PLC Control
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: F200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TengTian
Certification:	CE
Model Number:	F200

Detail Information

Place of Origin:

China

Brand Name:

TengTian

Certification:

Model Number:

F200

Product:

Automatic MS Carbon Steel Pipe Manufacturing Machine

Keyword:

Steel Pipe Manufacturing Machine

Pipe Shape:

Square,Rectangular

Control System:

PLC

Pipe Wall Thickness:

0.5mm - 10mm

Production Capacity:

1000-2000 Pieces Per Day

Power Source:

Electric

Voltage:

380V

Pipe Material:

Carbon Steel

Warranty:

Years 5+

Automation:

Fully Automatic

Key Word:

Carbon Steel Pipe Manufacturing Machine

Highlight:

High Light

Highlight:

MS Carbon Steel Pipe Manufacturing Machine

Automatic Carbon Steel Pipe Manufacturing Machine

MS Automatic Steel Pipe Manufacturing Machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

120 days

Payment Terms:

L/C,T/T

Supply Ability:

21 sets per year

Product Description

Automatic MS Carbon Steel Pipe Manufacturing Machine

Key Specifications

Pipe Shape	Square, Rectangular
Control System	PLC
Pipe Wall Thickness	0.5mm - 10mm
Production Capacity	1000-2000 pieces per day
Power Source	Electric (380V)
Pipe Material	Carbon Steel
Warranty	5+ Years
Automation	Fully Automatic

Product Description

Our Automatic Carbon Steel Tube and Pipe Manufacturing Machine delivers high precision pipe production with stable performance and high yield. The fully automated system features simple operation, durable construction, and continuous production capability for maximum efficiency with minimal material waste and low production costs.

Machine Components

Uncoiler
Forming welding section
Welding seam leveling
Welding seam grinding section
Initial sizing section
Bright solid solution
Sizing and straightening section
Pipe cutting machine
Output cutting platform

The production line features an intelligent high-precision PLC control system with man-machine display for simple, safe, and reliable operation.

Manufacturing Process

Coils: Carbon steel prepared for pipe production
Uncoiler: Steel coil placement
Leveler: Coil stock leveling
Mill: Roll forming of flat steel into pipe
Mill Rollers: Shape formation
Welder: Electric Resistance Welder completes pipe/tube
Scarfer: Seam smoothing
Saw: Pipe/tube cutting to length

Steel Pipe Manufacturing Machine Line Specifications

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW in Metres)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24
