Automatic Steel Pipe Packing Machine 380V CE ISO9001 Certified

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE / ISO9001

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE / ISO9001

Product Name:

Automatic Packing Steel Pipe Manufactring Machine 380V Power

Automatic:

Yes

Advantage:

Less Labors, Lower Working Strength

Operation:

Automatic Operation

Certification:

CE / ISO9001

Keyword:

Automatic Packing Steel Pipe Manufactring Machine

Highlight:

High Light

Highlight:

Automatic Packing metal pipe making machine

380V steel pipe making machine

380V steel tube forming machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

2 Months

Payment Terms:

T/T,L/C

Supply Ability:

30 SETS / YEAR

Product Description

Automatic Packing Steel Pipe Manufacturing Machine 380V Power

Product Attributes

Product Name:

Automatic Packing Steel Pipe Manufacturing Machine 380V Power

Automatic:

Yes

Advantage:

Less labors, Lower working strength

Operation:

Automatic operation

Certification:

CE / ISO9001

Product Introduction

HeBei TengTian has long been recognized as one of the pioneers in the welded seam tube mill business in China. The TengTian brand offers multiple standard tube mills for common product sizes, along with specialized equipment covering a wide diameter range of metal tubes and pipes - from 3/16" (4.76mm) O.D. cold stretch reducing mills to 28" OD cage mills.

As required by the application for welding the tube or pipe, HeBei TengTian can provide mills with high-frequency induction or contact welders, DC and AC Square Wave Welding (ERW).

Key Features

High precision pipe making with advanced W, FFX, FF forming method
German roll forming design for superior quality
Stable performance and high yield production
Full automation with simple operation
Continuous production capability
High efficiency with minimal material waste
Low production cost operation

Manufacturing Process

Step 1 - Coils: Carbon steels prepared for pipe and tube production

Step 2 - Uncoiler: Carbon steel coil placed on the uncoiler

Step 3 - Leveler: Coil stock is leveled

Step 4 - Butt Welding: Connecting coils for uninterrupted forming & sizing

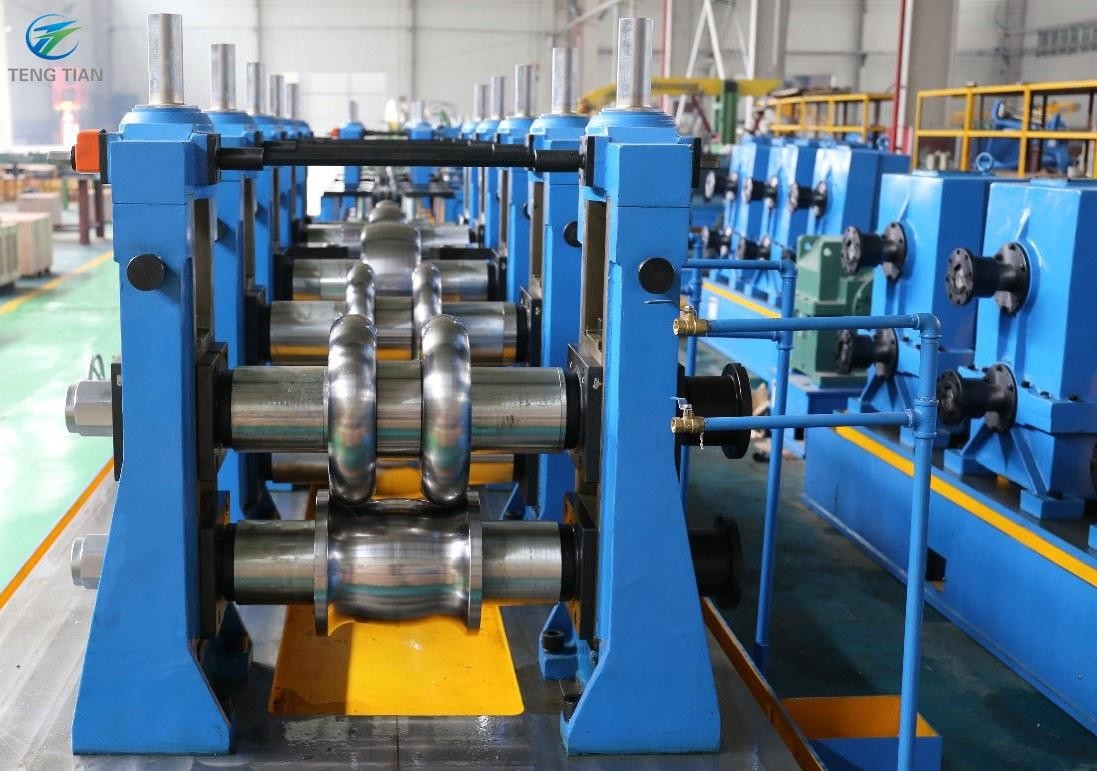

Step 5 - Mill: Flat steel formed into pipe through series of rolls

Step 6 - Mill Rollers: Rolls form steel into required shape

Step 7 - Welder: Electric Resistance Welder finishes the pipe or tube

Step 8 - Scarfer: Seam is smoothed all around

Step 9 - Saw: Pipe and tube cut to length

Step 10 - Collecting: Final collection of pipes for packing

Pipe Mill Machine Specifications

No.	Model	Pipe Size	Thickness	Speed (m/min)	Capacity (KW)	HF (KW)	Area (LxW)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24

Reference Image
