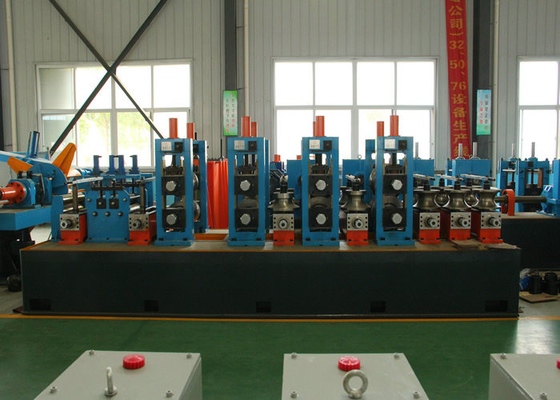

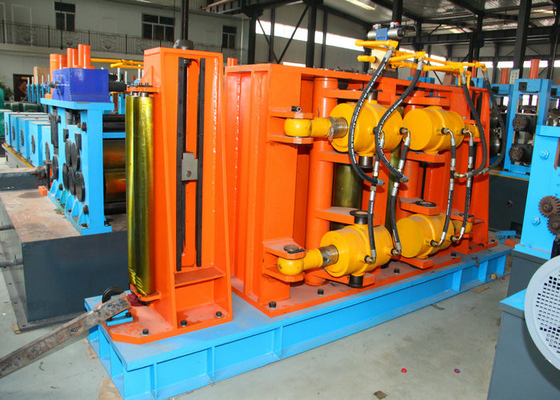

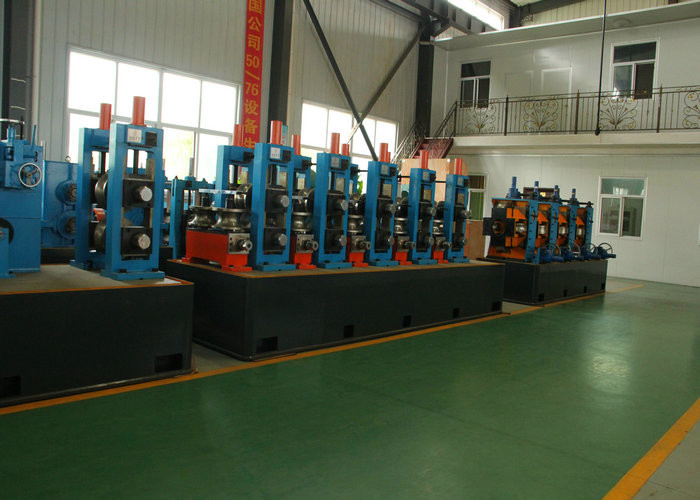

High Frequency Weld Tube Mill Roll Forming Machine For Round Pipe

Large Image : High Frequency Weld Tube Mill Roll Forming Machine For Round Pipe

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE、ISO 9001
Model Number:	HG140

Payment & Shipping Terms:

Minimum Order Quantity:	1 Ton
Price:	$100000 to $1 million
Packaging Details:	Standard carton box
Delivery Time:	10 days
Payment Terms:	T/T, L/C
Supply Ability:	10000 tons/year

Contact Now

Detailed Product Description

Product Name:	High Frequency Weld Tube Mill Roll Forming Machine For Round Pipe	Certification:	CE、ISO 9001
Material:	Carbon Steel	LOGO:	OEM
Feature:	High Strength, Good Toughness	Surface:	Shiny
Product Name:	Aluminum Spacer Bar	Keyword:	Steel Pipe Manufacturing Machine
Highlight:	High Frequency Weld Tube Mill , Weld Tube Mill Roll Forming Machine , Round steel tube making machine

High Frequency Weld Tube Mill Roll Forming Machine for Round Pipe

Mill Tour

Step 1 - Coils

There are carbon steels that are going to be made into pipe and tube for you

Step 2 - uncoiler

The carbon steel coil is placed on the uncoiler

Step 3 - Leveler

The coil stock is leveled

Step 4 - Mill

Then it goes through a series of rolls that form the flat steel into pipe

Step 5 - Mill Rollers

Rolls form this size schedule into shape

Step 6 - Welder

An Electirc Resistance Welder Finishes the pipe or tube

Step 7 - Scarfer

The seam is “scarfed” to make the pipe or tube smooth all the way around.

Step 8 - Saw

Finally, the pipe and tube is sawed to length

item	value
Applicable Industries	Hotels, Manufacturing Plant, Construction Works, Energy & Mining
Showroom Location	United States, Italy, Pakistan, India, Russia, Thailand, Tajikistan
Video Outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of Core Components	1 Year
Core Components	Engine, Gearbox, Motor, Gear
Condition	New
Type	Pipe Production Line
Pipe Material	Carbon steel
Application	Energy Supply Pipe
Production Capacity	30-80m/min
Place of Origin	Hebei, China
Brand Name	Tengtian
Voltage	380V
Power	400KW
Dimension(LWH)	40m3m2m
Weight	20000kg
Warranty	1 Year
Key Selling Points	High-accuracy
After-sales Service Provided	Engineers
Pipe Length	6-12m
Pipe Diameter	20-60mm
Pipe Thickness	0.8-2.0mm
Welding Method	High Frequency Welding
Material	Carbon Steel, Stainless Steel, Alloy Steel
Service Treatment	Pickling, Passivation, Polishing, Anodizing, Plating, Coating
Forming Process	Roll Forming

High Frequency Weld Tube Mill Roll Forming Machine For Round Pipe 0
