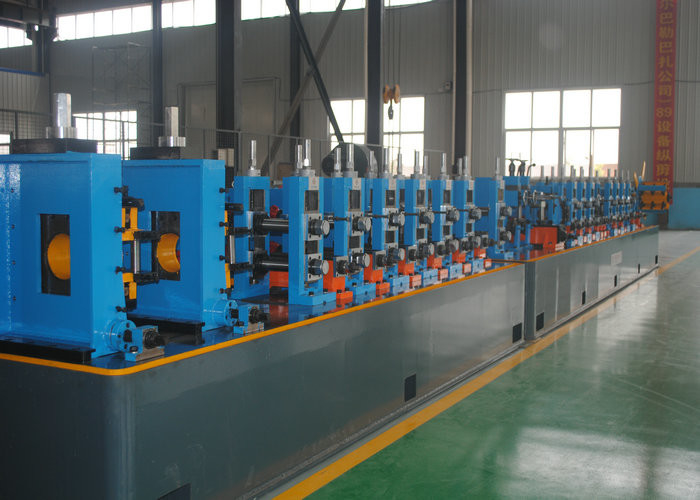

High Frequency Welded Pipe Mill for 21-63mm ERW Tubes
High Frequency Welded Pipe Mill for 21-63mm ERW Tubes
  • High Frequency Welded Pipe Mill for 21-63mm ERW Tubes
  • High Frequency Welded Pipe Mill for 21-63mm ERW Tubes

High Frequency Welded Pipe Mill for 21-63mm ERW Tubes

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG60
Detail Information
Place of Origin:
HEBEI,CHINA
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG60
Product Name:
High Frequency Welded Pipe Mill Straight Seam ERW Pipe Mill Machine , Ss Tube Mill 50HZ Frequency
Max.Thickness For Square Pipe:
0.8-3.0mm
Worm Gearing:
Max.80m/min
Certification:
CE ISO
Pipe Diameter:
21 - 63mm
Material:
Carbon Steel,stainless Steel,low Alloy Steel
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

Straight Seam erw tube mill

,

Straight Seam ss tube mill

,

50HZ Frequency ss tube mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
2.5 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
50 set per year
Product Description
Straight Seam ERW Pipe Mill Machine, SS Tube Mill 50HZ Frequency
Product Specifications
Attribute Value
Product Name High Frequency Welded Pipe Mill Straight Seam ERW Pipe Mill Machine, SS Tube Mill 50HZ Frequency
Max.Thickness for Square Pipe 0.8-3.0mm
Worm Gearing Max.80m/min
Certification CE ISO
Pipe Diameter 21 - 63mm
Material Carbon steel, stainless steel, low alloy steel
Product Description

This equipment is specially designed for producing high-frequency straight seam welded pipes (Φ20-Φ80mm, δ1-4.0mm) and corresponding square pipes (17*17-62*62mm, 1.2-3.0mm). The complete system includes components from uncoiler to fixed length cutting saw, with rolling speed adjustable according to pipe diameter and wall thickness requirements.

A. Applicable Material
  • Raw material: Low-carbon steel
  • Thickness of steel strip: 1.0-3.5mm
  • Width of steel strip: 60-240mm
  • I.D. of steel coil: Φ450-Φ550mm
  • O.D. of steel coil: Φ800-Φ1200mm
  • Maximum weight coil: 2500kgs
B. Dimension Range of Processing Steel Pipe
  • O.D of pipe: Φ20-Φ80mm
  • Wall thickness: 1.0-3.5mm (square pipe: 1.2-3.0mm)
  • Length: 4-8m
  • Milling speed: 60-70m/min
  • High-frequency equipment power: 250 KW (Solid state)
  • Voltage: 380V/440V, 50HZ
C. Main Components
  • Uncoiler: 1 set
  • Shearing and butt-welder: 1 set
  • Accumulator: 1 set
  • Forming, Welding & sizing unit: 1 set
  • Computer-controlled tracking cutting saw: 1 set
  • Run-out table: 1 set
  • Solid-state high-frequency welder: 1 set
High Frequency Welded Pipe Mill for 21-63mm ERW Tubes 0 High Frequency Welded Pipe Mill for 21-63mm ERW Tubes 1
