60.3mm High Frequency Welded Pipe Mill with Quick Change
60.3mm High Frequency Welded Pipe Mill with Quick Change
  • 60.3mm High Frequency Welded Pipe Mill with Quick Change
  • 60.3mm High Frequency Welded Pipe Mill with Quick Change
  • 60.3mm High Frequency Welded Pipe Mill with Quick Change
  • 60.3mm High Frequency Welded Pipe Mill with Quick Change

60.3mm High Frequency Welded Pipe Mill with Quick Change

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 60.3mm
Detail Information
Place of Origin:
China
Brand Name:
TENGTIAN
Certification:
CE ISO9000 BV
Model Number:
60.3mm
Product Name:
High Frequency Welded Pipe Mill 60.3mm Erw Pipe Mill Quick Change Tube BV Passed
Production:
Round Pipe
Feature:
Quick Change
Name:
Tube Mill
Other Pipe:
Square Pipe And Rectangular Pipe
Max Size:
15x15-20x20mm φ17.2—φ60.3mm
Thickness:
3.0-14.0mm
Length:
6-12m
Rollers:
Include
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

quick change erw pipe mill

,

60.3mm erw pipe mill

,

quick change erw tube mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
60 wording days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
5 set/month
Product Description
High Frequency Welded Pipe Mill 60.3mm ERW Pipe Mill Quick Change Tube BV Passed
Product Specifications
Attribute Value
Production Round pipe
Feature Quick change
Other pipe types Square pipe and Rectangular pipe
Max size 15x15-20x20mm φ17.2—φ60.3mm
Thickness 3.0-14.0mm
Length 6-12m
Rollers Included
Machine Overview

This high frequency welded pipe mill is designed to produce welded steel pipes, including round pipe, square pipe, and deformed pipe. Featuring roll pass design, the production line manufactures welded steel pipes with excellent quality machining and high precision assembly.

Technical Specifications
Material Specifications
Standard Conforming to YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical properties δs≤345Mpa δb≤610Mpa
Strip Width 50-200mm
Strip Thickness 1.5-4.0mm
Inner Diameter of Coils φ480～φ570mm
Outer Diameter of Coils φ1000～φ1800mm
Coil Weight ≤4.0T
Pipe Specifications
Pipe Diameter Square pipe: 15x15-50x50mm, Round pipe: 17.2-60.3mm
Thickness 1.5-4.0mm
Length 6-12m
Pipe-cutting Precision 0-6mm
Forming Speed 10-50m/min
Buyer Requirements
  • Workshop: 60x6m, H＞5m (crane to ground)
  • Power: Approx. 1212KW 380V/50Hz/3phases
  • Circulation Cooling Water (whole system): Flow: 20T/h～30 T/h, Pool Volume: 30m³
  • Compressed Air (whole system): Flow: 5m³/min, Pressure: 5-7kg/cm²
  • Others: Seller will supply list
Working Process
  1. Strip steel to coil

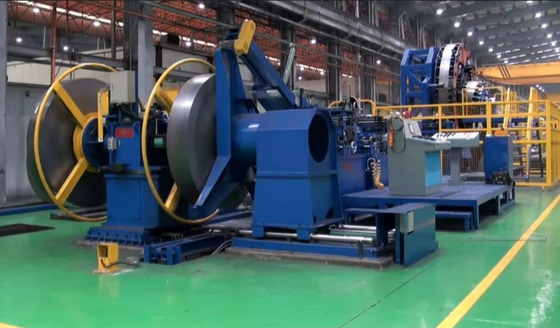

  2. Uncoiler
  3. End straightener
  4. Flattener
  5. Shear welder

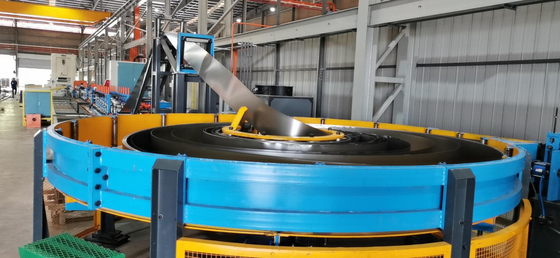

  6. Storage material unit

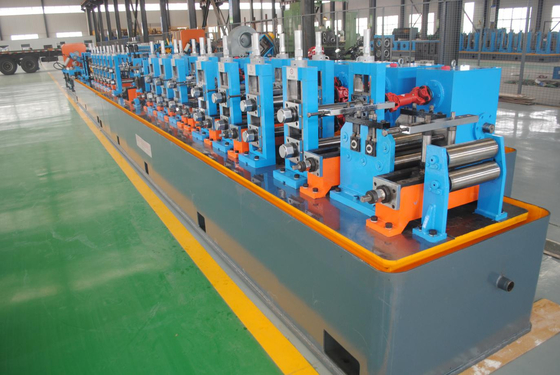

  7. Formed, welding, cooling, accurate pipe diameter size
  8. Accurate pipe length size, cutting
  9. Inspection
  10. Package
Quality Assurance & After-sale Service

Upon equipment arrival, our technical service personnel will be on-site for debugging, maintenance, and commissioning. We provide operation and maintenance instructions, and conduct technical training for your equipment operation and maintenance personnel. When used according to specifications under normal operating conditions, we offer a 12-month warranty from the date of equipment arrival. For any quality issues or parts damage that prevent normal operation, we will provide free repair or replacement.

60.3mm High Frequency Welded Pipe Mill with Quick Change 0
