Home > products >
Precision Tube Mill
>

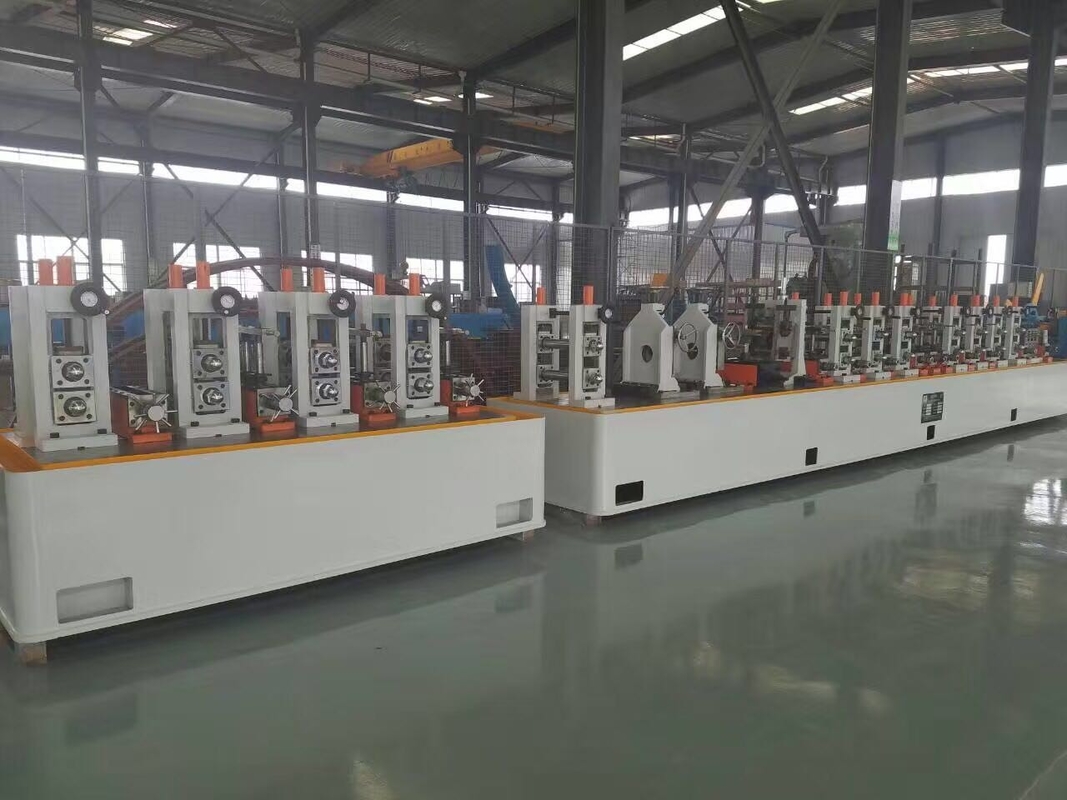

Precision Tube Mill Machine ERW 25-76mm Diameter 1.0-3.0mm Thickness
Precision Tube Mill Machine ERW 25-76mm Diameter 1.0-3.0mm Thickness
  • Precision Tube Mill Machine ERW 25-76mm Diameter 1.0-3.0mm Thickness
  • Precision Tube Mill Machine ERW 25-76mm Diameter 1.0-3.0mm Thickness
  • Precision Tube Mill Machine ERW 25-76mm Diameter 1.0-3.0mm Thickness
  • Precision Tube Mill Machine ERW 25-76mm Diameter 1.0-3.0mm Thickness
  • Precision Tube Mill Machine ERW 25-76mm Diameter 1.0-3.0mm Thickness

Precision Tube Mill Machine ERW 25-76mm Diameter 1.0-3.0mm Thickness

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: HG60
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
HG60
Product Name:
Precision Tube Mill Making Machine With Cold Saw HG60 Friction Saw ERW
Adjustment Type:
By Turbine Worm
Mill Speed:
30-100m/min
Pipe Shape:
Round,square,rectangular
Pipe Diameter:
25-76mm
Thickness:
1.0-3.0mm
Welding Type:
High Frequency Welding
Keyword:
Precision Tube Mill
Highlight:

High Light

Highlight:

ss tube mill machine

,

industrial tube mills

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
60 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
Precision Tube Mill Making Machine With Cold Saw HG60 Friction Saw ERW
Product Specifications
Attribute Value
Product Name Precision Tube Mill Making Machine With Cold Saw HG60 Friction Saw ERW
Adjustment type By turbine worm
Mill speed 30-100m/min
Pipe shape Round, square, rectangular
Pipe diameter 25-76mm
Thickness 1.0-3.0mm
Welding Type High Frequency Welding
Equipment Description

The HG60 ERW pipe making machine is a high frequency, high precision tube mill line designed for producing building materials pipes. It is widely used for building materials, drainage, energy supply pipes, building and decoration profiles, extruded profiles, and cold bending profiles.

Product precision can reach 0.05 mm (HG32/HG50/HG76), with accuracy exceeding 0.08 mm for HG76 units.

Product Advantages
  • High precision: Level roller jumps 0.01, frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1, steel pipe diameter and roundness error ≤0.08
  • Incorporates Japanese technology to meet high accuracy requirements of international clients
  • Features schedulable worm gear and worm adjustment for precise, energy-efficient operation
  • 3D adjustable scraping scar with ±20° rotation capability along steel circle
  • Turkish head push square system for round-to-square conversion reduces mold weight while ensuring stable forming and uniform R angles
  • Level up shaft includes nylon damping blocks to reduce impact on shaft and bearings
Production Process
  • Scroll up
  • Uncoil
  • Flattening
  • End Shear & Butt Welding
  • Accumulator
  • Forming
  • High-frequency induction welding
  • Removing external burr
  • Cooling
  • Sizing
  • Cutting
  • Checking & Collecting
  • Accessing Warehouse
Technical Specifications
Raw Material: HRC, CRC, Galvanised Coil
Production Range:
  • Round Pipe: 25-76mm; Thickness: 1.0-4.0mm
  • Square Pipe: 20*20-60*60mm; Thickness: 1.0-3.0mm
  • Rectangular: 20*40-40*80mm; Thickness: 1.0-2.5mm
H.F. Welder: GGP250Kw Solid State
Line Speed: Max. 100m/min
Tube Length: 4-12m
Cutting Accuracy: ±3mm
