100m/Min Square Pipe Manufacturing Machine

Name: 100m/Min Square Pipe Manufacturing Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG89
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG89

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG89

Voltage:

220/380/415/420/440V

Mill Speed:

30-100m/min

Warranty:

1 Year

Tube Size:

20x20—60x60mm

Thickness:

0.5-2.5mm

Welding Type:

High Frequency Welding

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Materail:

Carbon Steel, Carbon Steel

Highlight:

High Light

Highlight:

100m/min square pipe manufacturing machine

20x20 square pipe manufacturing machine

2.5mm square pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

150 work days

Payment Terms:

L/C, T/T, Western Union

Supply Ability:

100 Sets/Year

Product Description

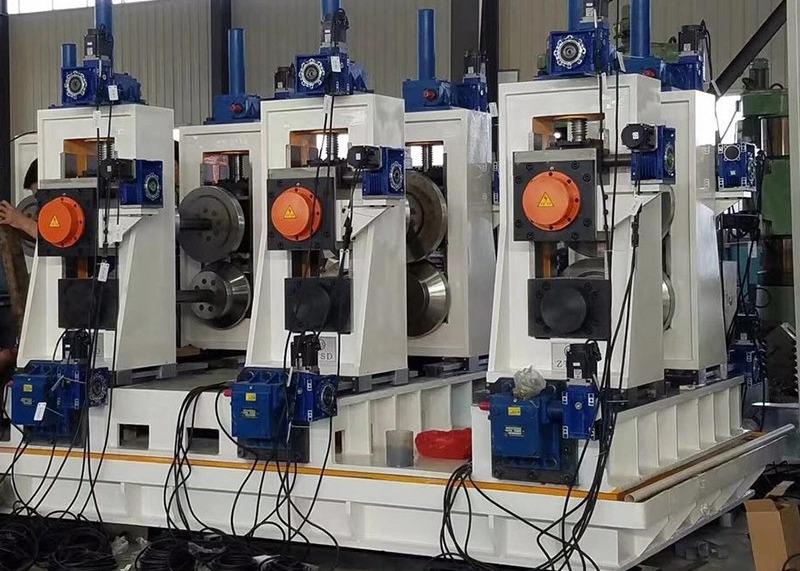

High Effciency Pipe Making Machine Rectangular/Square Tube Manufacturing Machine

Equipment description

Full-automatic ERW steel tube mill/pipe mill line is the first full-automatic pipe making machine in china to meet the requirements of the international market, according to our company LW series unit combined with FF forming technology, developed the automatic square and rectangular tube equipment. The pipe making machine can produce a certain specification of opening cold bend steel, such as U,C section steel etc., width and height of the product can be adjusted infinitely. The steel making machine is used to scale to cut off the steel tubes, the incision level off, smooth, without burr, scale with high precision.

welded pipe making machine consists of the following parts:

Forming parts	consist of seven frame of horizontal roll rack, four frame of empty curving rack, four frame of vertical roll rack and one frame of feeding rack
Welding parts	consists of welding five roller of extruding roll, two frame of scraping scar rack and one frame of polish rack
Sharping parts	consists of four frame of four roller rack
Electric control part	controlled by multipoint PLC control
