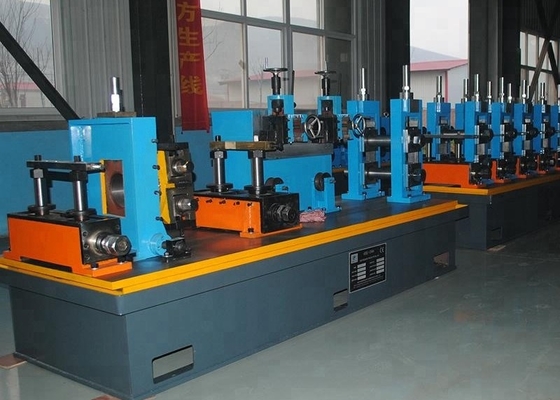

90m/Min Square Tube Mill

90m/Min Square Tube Mill
90m/Min Square Tube Mill

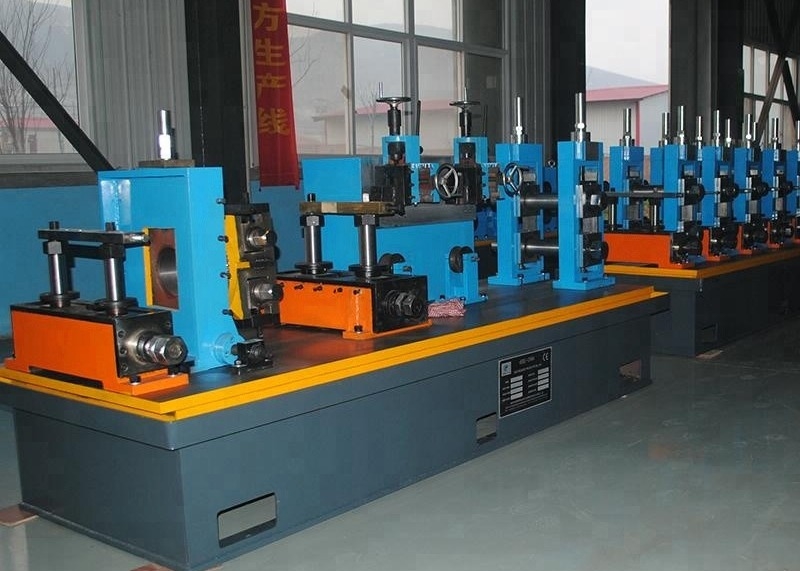

Large Image :  90m/Min Square Tube Mill

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: HG140
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 150 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Sets/Year
Detailed Product Description
Voltage: 220/380/415/420/440V Mill Speed: 20-90m/min
Warranty: 1 Year Tube Size: 50x50—110x110mm
Thickness: 1.5-4.5mm Welding Type: High Frequency Welding
After-sales Service Provided: Engineers Available To Service Machinery Overseas Materail: Carbon Steel, Carbon Steel
High Light:

90m/min square tube mill


110x110mm square tube mill


1.5mm square tube mill

HG140 Automatic iron Square Rectangular Tube or Pipe welding machine

Equipment description


HG140 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 60~140mm in diameter and 1.5~5.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size.This production line’s each unit equipment, full use of the domestic and foreign similar equipment, innovative design, advanced technology, convenient operation and maintenance, and reached the international leading level.


1. Adapt materials:
Hot rolled or cold rolled steel strip
Material : Low carbon steel and low alloy constructional steel
δs≤345Mpa δb≤610Mpa
2.Processing steel pipe size range:
(1)Processing range:Round pipe Φ60-Φ140mm.
Square&Rectangular pipe 50x50—110x110
(2)Thickness of Round pipe :1.5-5.0mm
Thickness of Square&Rectangular pipe :1.5-4.5mm
3.Installed capacity: 800KVA
4.Water consumption: 50m3/h
5.Solid-state high-frequency Welder:300KW or 400KW
6.Workshop Request:length, width and height 50m X 12m X 6m
7.Forming speed:40-60m/min


More Specification


Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m2)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
